Name: P10 SMD LED Stadium Display IP65 Waterproof 5000cd/m2 Brightness
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: P10
Price: 10000.00 USD
Availability: InStock

Home Products Stadium LED Display

P10 SMD LED Stadium Display IP65 Waterproof 5000cd/m2 Brightness

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	SCX
Certification:	CE/ROHS/FCC/ISO/CB
Model Number:	P10

Payment & Shipping Terms:

Minimum Order Quantity:	3 sqm
Price:	negotiation
Packaging Details:	flight case, wooden case, carton, it is up to you.
Delivery Time:	7-10 working days after receive your payment
Payment Terms:	Western Union,MoneyGram,D/P,T/T,L/C
Supply Ability:	5000 sqm per month

Contact Now

Detailed Product Description

Pixels:	10mm	LED Chip:	Episatr
Tube Chip Color:	Full Color	Waterproof:	IP65
Frame Frequency:	>=60HZ	Average NO Failure:	>=1000hours
Viewing Angle:	160/140	Brightness:	5000cd/m2
Highlight:	Stadium Perimeter LED Display , SMD P10 Stadium Perimeter LED Display , SMD P10 Advertising Billboards

SMD P10 Sports Stadium Perimeter LED Display Commercial Advertising Billboards

Product Specifications

Attribute	Value
Pixels	10mm
LED chip	Episatr
Tube Chip Color	Full color
Waterproof	IP65
Frame Frequency	>=60HZ
Average NO Failure	>=1000hours
Viewing angle	160/140
Brightness	5000cd/m2

Basketball Football Club Cricket Stadium Perimeter LED Commercial Advertising Billboards

Stadium LED Display Features:

High waterproof level (IP65)
Wide 160° viewing angle
Easy installation design
High level protection anti-collision

Function and Technology Characteristics:

Supports multiple file formats including VGA, Video, AVI, MOV, MPG, DAT, VOB
Compatible with various information sources: camera, video, VCD, DVD, LD, TV
Adjustable brightness, contrast, and saturation (manual or automatic)
Clear picture without flicker or distortion
Real-time PC synchronization
Advanced distortion correction technology
Multiple interface options (1 sound, 2 video minimum)
LAN and remote control via PC
Multilingual support: English, French, German, Greek, Russian, etc.

Wide Viewing Angle for Broader Reach

The display features a wide 140° viewing angle that reaches more viewers. The picture quality remains seamless in all directions and at distance, presenting all viewers with the same high-quality output. This makes it ideal for large gatherings and stadium environments.

Technical Specifications

Resolution/mm	10
Pixel configuration	1R1G1B
Pixel density/pixels/m²	10000/m²
Module resolution	32x16
Module size/mm	320x160
View distance	≥10m
Single point brightness adjust	Can be added
Single point color adjust	Can be added
White balance brightness	>5000cd/㎡
Color temperature	6500K-9500K
Horizontal view angle	120°
Vertical view angle	60°
Signal Process bit	10 or 16bit
Grey process	1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances	Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode	Constant driving current
Scanning mode	(1/4)
Frame rate	60Hz
Refresh frequency	>4200Hz
Control mode	Computer synchronous
Brightness adjusted range	Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss
Out of control point	<1/10000
Working hours	≥72hours
Mean Time Between Failure	>5000hours
Life time	100000hours
Life-all-white(brightness halving)	50000hours
Environment temperature range	Operating temperature range: -20-45℃
Maximum power:/㎡	<950W
Average power:/㎡	<350W
Self-check technology	LED spot self-check, communications check, power check, temperature monitor(need customization)
Remote monitoring	Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization)
Software environment	WindowsNT,Windows1999,WindowsXP
Luminous point width between centres	Deviation<3%
Brightness uniformity	<10%
Color uniformity(chromaticity coordinate)	±0.003
Power supply request	AC85-264V(50Hz-60Hz)
Contrast	(1000:1)
System protection	Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working)	working:10-95%
Humidity(storing)	storing:10-95%

Applications

• Outdoor and indoor advertising, digital billboards, advertising companies

• Sports halls, fields, playgrounds, school church

• Airports, bus stations and railway passenger terminals

• Facades of shopping malls, department stores, banks and car dealerships

• Architecture and social projects, information systems in cities

• Show-business, concerts, festivals, motor shows and other public events

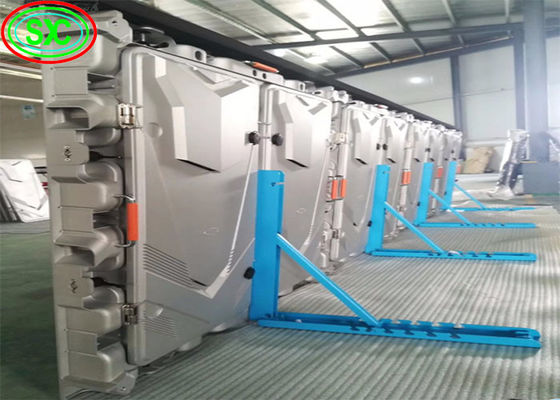

Stadium LED Display Production Process

Packaging and Shipping

Wooden case or flight case package are available. Shipping by sea, air or DHL, multiple shipping options available.

Our professional team provides comprehensive support for all your LED display needs!
