Single Color LED Message Board P10 Outdoor For Commercial Ads , Programmable LED Signs Waterproof IP65

Single Color LED Message Board P10 Outdoor For Commercial Ads , Programmable LED Signs Waterproof IP65

Single Color LED Message Board P10 Outdoor For Commercial Ads , Programmable LED Signs Waterproof IP65
Single Color LED Message Board P10 Outdoor For Commercial Ads , Programmable LED Signs Waterproof IP65
Single Color LED Message Board P10 Outdoor For Commercial Ads , Programmable LED Signs Waterproof IP65
Product Details:
Place of Origin: Shenzhen China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: p10
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Pitch Size: 10mm Pixel Composing: 1R
The Optimum Viewing Angel:: Horizontal 140°,vertical 70° Module Size: 320mm*160mm
Frame Frequency: ≥120Hz/s Relative Humidity: ≤95%RH
Highlight:

moving led screen

,

text led display

Single Color LED Message Board P10 Outdoor , Programmable LED Signs





Our services are highly flexible so u can customize your own advertising campain with us.



Our Mission:to be the premier provider of creative,marketing and innovative solutions devoted to helping other companies succeed and grow.



Technical Parameters:

pixel pitch:10mm

primary color:red;IP68

color composing:1R; red colour, DIP

density:10000dots/㎡

module resolution:32x16dots

module size:320mm×160mm

the optimum viewing angel:horizontal  140°,vertical 70°

Operating temperature: -50 C ~ + 60 C

relative humidity:≤95%RH

Supply voltage: 110~300V AC,50,60Hz

mastering system:asynchronous control

driving mode:1/4 scan

refreshing rate:≥3000Hz/s

frame frequency:≥120Hz/s

brightness:≥7500nits/㎡

color temperature condition:3500K~9500K,(can be adjustable)

adjusting style of brightness:hand movement/auto

led span lifetime: 100,000 hours

evenness:between random adjacent pixel ≤0.05mm,module splicing space<0.1mm

uniformity:strong pixel light,equal module brightness,without the phenomenon of color spot,only clean picture.

switch power loading:5V/40A

display mode of computer:1024×768

viewing distance:1-400m

average consumption:180W/square meter,Max:400W/square meter.



Warranty:

3-years quality warranty with lifelong maintenance.During warranty time,The seller will take responsibility to change or repair defective parts, the buyer pay the shipping of cost, the seller pay the cost of repairs.The seller will offer technical help online or by phone, if needed,  the seller can send  engineers paid by the buyer  for technical support on site,but as per our experience,it has no any defective parts in 6-8 years period of our products,because we have already checked the quality several times,after the warranty time,we still offer free technology repairing all the time.buyer just needs to pay shipping cost and material cost after warranty.

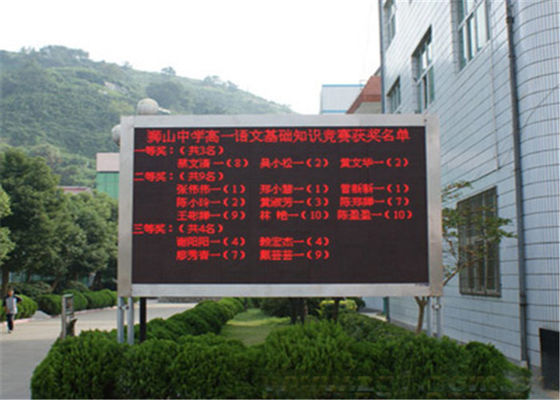

Single Color LED Message Board P10 Outdoor For Commercial Ads , Programmable LED Signs Waterproof IP65 0



Installation Services:

The seller should provide on the spot installation instruction service for the buyer, including:
A, To check whether the bracket and frame are in conformity with the technical requirements of the structure scheme the seller provided
B, To instruct the buyer’s technicians to install the LED module cases and connection among those cases
C, To experiment and adjust the whole panel, examine and repair the defective devices, guarantee panel in secure operation.
D, To train the buyer’s technicians.
For spot installation and train in foreign country, the service is 100 usd/day, and the buyer must pay our technician’s living and traffic fee during the installation period.

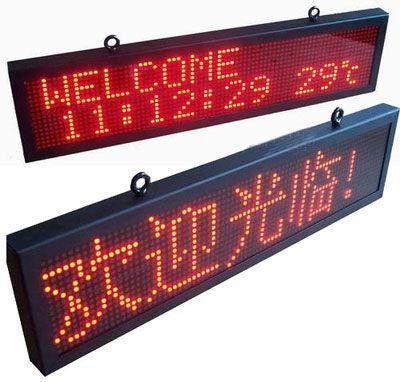

Single Color LED Message Board P10 Outdoor For Commercial Ads , Programmable LED Signs Waterproof IP65 1
