| Brand Name: | SCXK |
| Model Number: | P8 |
| MOQ: | 3 sqm |
| Price: | negotiation |
| Payment Terms: | Western Union, MoneyGram, D/P, T/T, L/C |
| Supply Ability: | 5000sqm per month |
| Specification | SCXp8 |
|---|---|
| Pixel pitch (mm) | 8 |
| Pixel Configuration | 1R1G1BSMD3528 |
| Pixel Density(dot/) | 15625 |
| Module Resolution(W×H) | 40*20 |
| Module Size(mm) | 320*160mm |
| Cabinet Resolution(W×H) | 96*96 |
| Cabinet Size(mm) | 960*960mm |
| Unit brightness, chroma adjust | yes |
| Brightness | ≥5500CD/ |
| Gray scale | RGB12-16BitsEach |
| Color temperature (K) | 6500~9500Adjustable |
| Horizontal / Vertical Viewing Angle (°) | 110/55 |
| Scanning mode | Dynamic |
| Frame Frequency (Hz) | ≥60 |
| Refresh Frequency (Hz) | 200-2000 |
| Max Power Consumption (W/m2) | ≤850W/ |
| Average Power Consumption (W/m2) | ≤280W/ |
| IP Rating | Front IP 65, Back IP 55 |
| Life Span (hrs) | ≥100,000 |
| Power supply requirement | AC: 220×(1±10%)V, 50×(1±5%)Hz |
| Temperature Range (℃) | -20~50 |
| Humidity Range (RH) | 10%~90%, Nocondensation |
Wooden case or flight case package are available. Shipping by sea, air or DHL, multiple shipping ways for your choice.

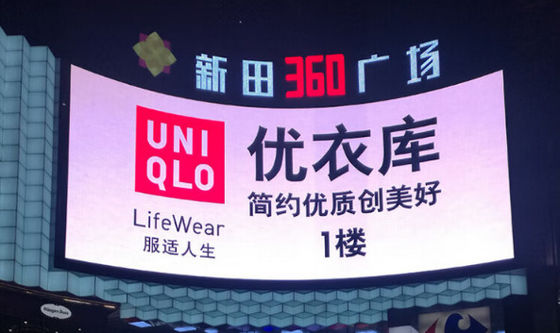

Outdoor LED screen can work under the sun for high brightness and large viewing angle with a certain function of a windbreak, rainproof and waterproof.

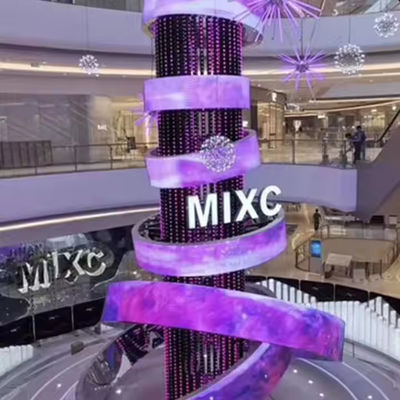

Which is widely used as outdoor advertising and information media at station, square and shopping mall. Outdoor LED screen can be divided into a pillared screen, wall-mounted screen, and floor-standing screen, etc.
