Waterproof Indoor Outdoor P3.91 Night Club Wedding Party LED Dance Floor Renal Screen

Waterproof Indoor Outdoor P3.91 Night Club Wedding Party LED Dance Floor Renal Screen

Product Details:
Place of Origin: ShenZhen in China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P3.91
Payment & Shipping Terms:
Minimum Order Quantity: 2sqm
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: Western Union, MoneyGram, D/P, T/T, L/C
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Pixel Pitch: 3.91mm Tube Chip Color: Full Color
Waterproof: IP65 Pixel Configuration: 1R1G1B
Dot Density: 43222dots/sqm Driving Mode: DC5V
Optimal Viewing Distance: >=4m Viewing Angle: H:160 V:140
Highlight:

waterproof LED dance floor

,

P3.91 LED rental screen

,

indoor outdoor party LED floor

Waterproof Indoor Outdoor P3.91 Night Club Wedding Party LED Dance Floor Rental Screen
Product Description

DC5V Waterproof Indoor Outdoor P4.81 Night Club Wedding Party LED Dance Floor Rental Screen

Display Function

Graphics, animations, pictures, text, videos

Description

More than 13 bit gray level processing and 3500 CD/m² brightness make pictures more realistic and clearer. Mainly used in indoor and outdoor applications, government buildings, halls, enterprise plazas, showrooms, stages, and party scenes. It can be made into different shapes such as ceilings, T-stages, arcs and stair shapes, suitable for both fixed installation and rental use.

Product Specification
LED Specifications
1 Type SMD
2 LED Standard Real Pixel(1R1G1B)
3 Red Wavelength 625-630nm
4 Green Wavelength 515-530nm
5 Blue Wavelength 465-475nm
Module Specifications
1 Pixel Pitch 3.91mm
2 Resolution 64x64 dots
3 Module size 250x250mm
Cabinet Specifications
1 Cabinet Size(W*H) 500x1000mm
2 Cabinet Resolution 128x256 dots
3 Pixel Density 65410 dots/㎡
4 Cabinet Weight ≤6.5kg
5 Material Die casting aluminum
6 Flatness of cabinet ≤0.3mm
Screen Parameters
1 Color/Brightness Calibration Yes
2 Color Temperature(K) 3000-10000
3 Light Centre Distance Deviation <3%
4 Brightness Uniformity ≥97%
5 Color Uniformity Within ±0.003C×,Cy
6 Contrast Ratio 5000:1
7 View Angle Horizontal160°/ Vertical 140°
8 Input Voltage AC100~240V(50-60Hz)
9 Power Consumption Max:800w/㎡ Avg:280w/㎡
10 Driving Method 16 scanning
11 Protection Level IP65 waterproof
12 Grey Scale Levels R(256) G(256) B(256)
13 Life Span 100,000 Hrs
14 Temperature-Operating -20 -- 40℃
15 Humidity-Operating 10 - 99%
16 Features Anti-slip, anti-collision, big load-bearing capacity
17 Usage LED floors, LED wall background
18 Display function Txt, picture, video
Production Process
  1. Incoming Inspection
  2. SMD
  3. Plug-in
  4. Wave Soldering
  5. After Welding
  6. Testing
  7. Semi Finished Aging
  8. Module Assembly
  9. Gluing
  10. Finished Aging
  11. Detection Finishing Warehousing
Our Advantages
  • OEM service, No MOQ
  • Easy installation, regular items in Stocks
  • Offering free design drawing as requested
  • Remote controlling and adjusting are available
  • Wooden case or flight case options
  • Your reply will be replied within 24 hours
  • Fast delivery: Usually 6-8 working days
  • Excellent R&D team, factory price and quality assurance
Packaging and Shipping

Wooden case or flight case package are available. Shipping by sea, air or DHL, multiple shipping ways for your choice.

Methods for Quality Assurance

Aging: 100% fully test, 72 hours with 256 grey level

Vibration Testing: 3-5 mins up and down in 5mm range

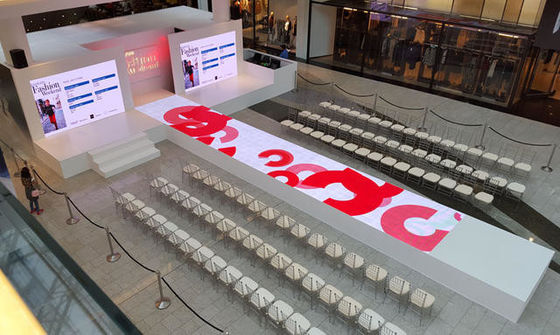

Project
Waterproof Indoor Outdoor P3.91 Night Club Wedding Party LED Dance Floor Renal Screen 0
Why Choose Us

Continues Quality: With more than 12 years experience in LED display production, regularly updated equipment and unique standardized module production ensure continuous quality.

Competitive Price: Large scale production capacity and professional technology allow us to reduce costs while maintaining quality.

Fast Delivery: We maintain strict adherence to promised delivery dates using special procedures when needed.

Perfect Service: Comprehensive pre-sales consultation and after-sales support with product usage tracking.

Our team will be forever here to offer you full supports!
