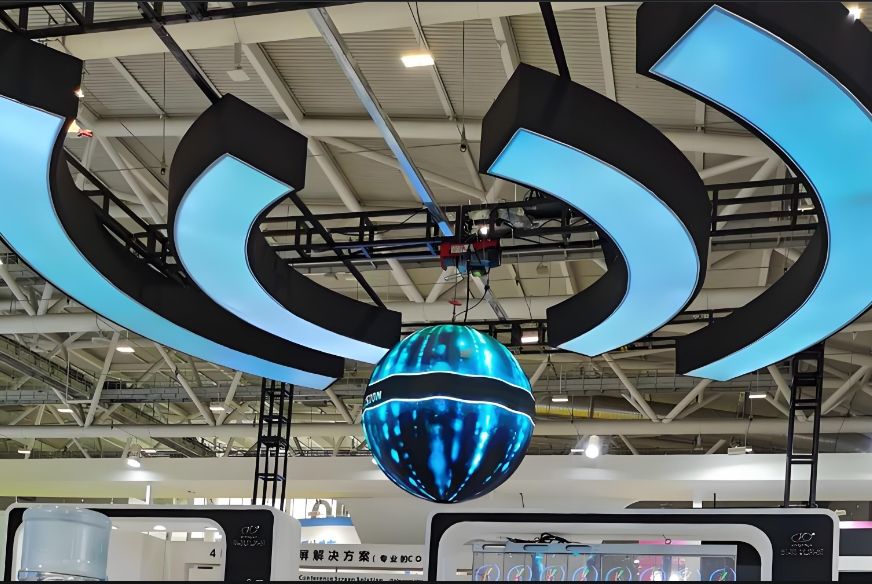

Indoor 360° Degree Full Color Column Sphere LED Display Screen Building Billboard

Indoor 360° Degree Full Color Column Sphere LED Display Screen Building Billboard

Brand Name:	SCXK
Model Number:	P3.91
MOQ:	5 pcs
Price:	negotiation
Payment Terms:	T/T, Western Union
Supply Ability:	5000sqm per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen China

Certification:

CE/ROHS/FCC/ISO/CB

Pixel Pitch:

3.91mm

Cabinet:

Die-casting Aluminum

Module Size:

500*1000mm

Module Resolution:

64*64

Pixel Configuration:

1R1G1B

Dot Density:

65410dots / Sqm

Cabinet Size:

500*1000mm

Warranty:

3 Years

Voltage:

DC5V

Driving Mode:

1/16 Scan

Packaging Details:

flight case, wooden case, carton, it is up to you.

Highlight:

360° full color sphere LED screen

indoor column LED display billboard

building sphere LED screen with warranty

Product Description

Indoor 360° Degree Full Color Column Sphere LED Display Screen Building Billboard

Product Description

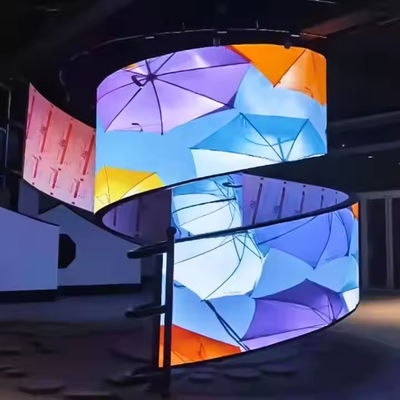

360° Degree Cylinder Video Display Outdoor Column Screen on Building Billboard Led Wall

Application

Full Color P2 P2.5 P4 Indoor Flexible Circle Column LED Screen Display Cylinder Curve LED Display Screen is widely used in advertising, sports, industrial enterprises, transportation, station, wharf, airport, construction, education system and other public places.

Features

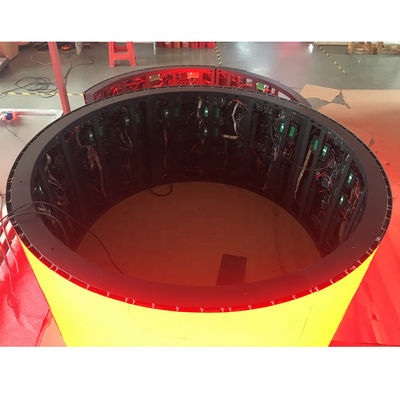

The installation of the flexible LED display screen has a good on-site installation structure. It adopts strong magnet adsorption installation and direct adsorption. And safety and stability are high. The PCB uses flexible soft board, and the mask and bottom case are made of rubber.
The connection between modules adopts high-end connector-HDMI connector; using distributed scanning and modular design technology, higher reliability and stability.
High grayscale and high refresh rate design: The grayscale level can be 10-16bit, and the refresh frequency can be 400-1500Hz, which makes the LED display screen display the image without delay and smear.

Technical Specifications

Parameter	Specification
Unit module \| Model number	p3.91-16s
Model size	250mm*250mm
Pixel pitch	3.91mm
Pixel density	65536 dots/m2
Cabinet size	500mm*500mm
Pixel configuration	1R1G1B
Package mode	SMD2121
Pixel resolution	64 dots(W)*64 dots(H)
Drive type	Consistent drive
Scan mode	1/16 scan
Port type	HUB75
Brightness of white balance	≥2000cd/m2
Temperature	Storage: -35-80°C, Working: -20-50°C
Operation humidity	10%-95%
Thickness	85mm
Best viewing distance	4m~30m
Working voltage	AC220V±10%
Average power consumption	310w/s

Advantages

Support all kinds of videos, graphics, pictures, files, text, and etc.
Energy-saving. Using high brightness LEDs with low power consumption.
Reliability - Support 24/7 working without any faulty.
Intelligent control - Support synchronization, asynchronization, wireless control(3G, WIFI), or Cluster control.
Modular design for easy installation and maintenance.
Brightness can be adjustable.
Wide viewing angle and longer viewing distance for more audiences.

Packaging & Shipping

Manufacture Process

Why Choose Us

Continues Quality

With more than 12 years experience in led display producing, equipments are updated regularly. What's more, unique standardized and module production ensure our products continuous quality.

Competitive Price

With large scale production capacity and professional production technology, our company have built effective modular production. We always stick to promote the technical innovation and reduce cost to benefit customers.

Fast Delivery

Once we promise the delivery date, we will try our best to fulfill it. Special procedures such as emergency inventory will be used to maintain your uninterrupted supply of the products.

Perfect Service

Pre-sales: Your purchasing requirements will be highly valued and we'll recommend suitable products to you.

After-sales: We will track the products usage and then constantly perfect our products.
