Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | Shenzhen |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P3 |
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7working days after receive your payment |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000sqm per month |
| Usage: | Indoor | Pixel Pitch: | 3mm |
|---|---|---|---|
| Pixel Density: | 111111 Pixels/m2 | Module Pixles: | 4096dots |
| Module Resolution: | 64dots × 64dots | Module Size: | 192mm × 192mm |
| Module Weight: | 0.4kg/pc | Cabinet Size(WXH): | 576x576mm |
| Cabinet Resolution: | 192dots X192dots | Material: | Die-casting Aluminum |
| Highlight: | indoor led display screen,indoor led billboard |
||
High quality wholesale Indoor P3 Full Color Led Display movie Video Wall flexible Led Module Church Pantalla Giant Smd
Features
1. Indoor LED display screen adopts SMD3-IN-1 technology
2. Wide viewing angle: 140° horizontally, 140° vertically
3. Special design and advanced SMT technology improve heat dissipation effect
4. Equipped with high refresh rate controller to ensure no scanning line when taking pictures
5. Regular shapes and special shapes (such as curves, circles) can be designed
6. Easy to assemble and connect after adding connectors
7. High color uniformity and clear images can bring you vivid audio-visual effects
8. Front and rear output are available
Product Specification
| Resolution/mm | 3mm |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels | 111111/m² |
| Module resolution | 64*64 |
| Module size | 192mm*192mm |
| View distance | ≥3mm |
| Color temperature | 6500K-9500K |
| Vertical view angle | 120degrees |
| Horizontal view angle | 120degrees |
| Working hours | ≥72hours |
| Out of control point | <1/10000 |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Maximum power:/㎡ | ≮220W |
| Average power:/㎡ | ≮90W |
| Control mode | Computer synchronous |
| Refresh frequency | ＞1200HZ |
| Self-check technology |
LED spot selfcheck, communications check, power check, temperature monitor(need customization) |
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators(need customization |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Brightness uniformity | ＜10% |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
| System protection |
Moistureproof,dustproof,high temperature protection, anti-corrosion,anti-burning,anti-static,anti-vibration |

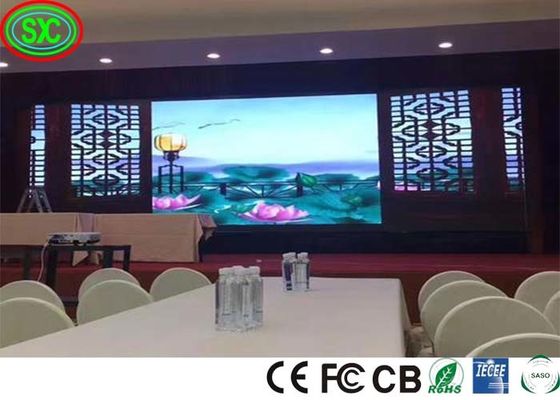

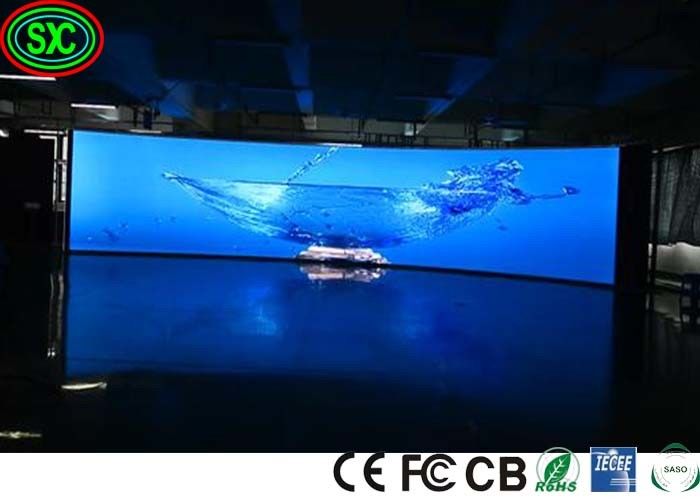

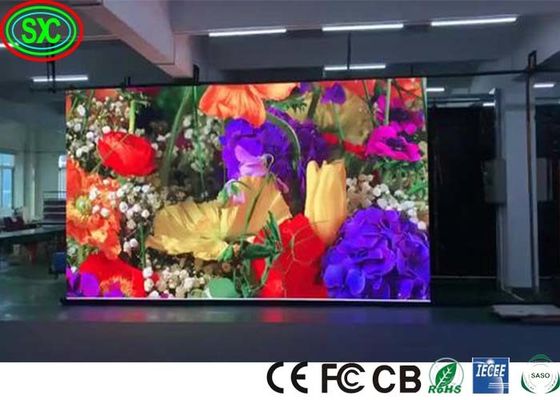

Detailed Pictures
Assembly Process
Why choose us
1. High quality:100% tested before shipping, Best quality LED chip tube the CREE, SILAN, OPTO, EPISTAR assuring high brightness and long life span. industry-leading
2. Strong productivity:5000 pieces per month, Shorter delivery time
3. Light weight:aluminum cabinet greatly saving fright cost and conveniently installing.
4. Stable performance:our most basic guarantee:the aging time exceeding 24 hours. Malfunction
dot rate less than 0.0001. MTBF more than 10000 hours.
5. Supporting different formats of images and videos:Flash, WAV/MIDI, Videos from TV and other equipments.
