Fine Pitch P2 Indoor Full Color LED Video Wall 2mm Pixel Pitch 250000 Pixels/M²

Brand Name:	SCX
Model Number:	P2
MOQ:	5 sqm
Price:	negotiation
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	5000sqm per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen

Certification:

CE/ROHS/FCC/ISO/CB

Net Weight:

6.5kg

Pixel Pitch:

2mm

Pixel Density:

250000 Pixels/square Meter

Life Time Way:

≥100,000hours

Module Size:

256*128mm

Control System:

LSN/Nova

Packaging Details:

flight case, wooden case, carton, it is up to you.

Highlight:

led stage display

stage led display

Product Description

HD High Brightness Indoor Full Color Fine Pitch Stage Touring Concert LED Video Wall Hire

HD Indoor Full Color Fine Pitch Stage Touring Concert LED Video Wall Hire

Application

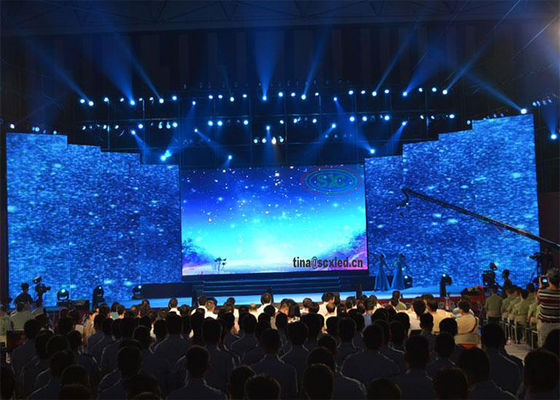

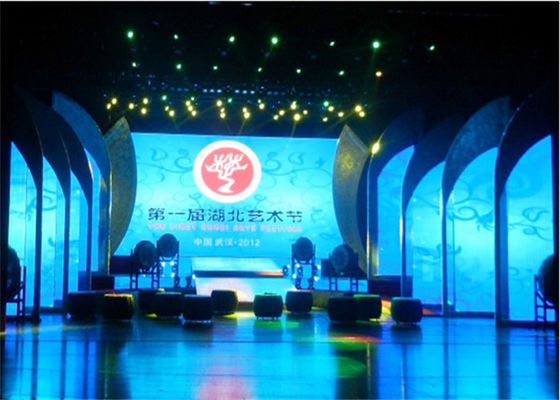

The Indoor LED Video Wall is highly usable at indoor places like malls, stages, chain stores, hotels, public buildings, bars, and restaurants. Its thin size and ultra-lightweight module make it easy to install in any area without occupying much space.

Product Description

Classical and stable structure and performance
Two patent-protected strong locks design, ensuring reliability and security
Die-casting aluminum body, lightweight for easy transportation and high-accuracy installation
Compatible with any existing controller without screen shaking, quick flashing, or mosaic problems
Supports hanging/ground mounting for stage, TV show, studio, and other event applications
Tool-free assembly and disassembly

Product Specification

Specification	Indoor SMD P2
Lamp size	2121
Resolution/mm	2
Pixel configuration	RGB 3 in 1
Pixel density/pixels/m²	250000/m²
Module resolution	160x80
Module size/mm	320x160
View distance	≥2m
Single point brightness adjust	Can be added
Single point color adjust	Can be added
White balance brightness	>800cd/㎡
Color temperature	6500K-9500K
Horizontal view angle	120(degrees)
Vertical view angle	60(degrees)
Signal Process bit	10 or 14 bit
Grey process	1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances	Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode	Constant driving current
Scanning mode	1/13
Frame rate	60Hz
Refresh frequency	>3000Hz
Control mode	Computer synchronous
Brightness adjusted range	Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss
Out of control point	<1/10000
Working hours	≥72hours
Mean Time Between Failure	>5000hours
Life time	100000hours
Life-all-white(brightness halving)	50000hours
Environment temperature range	Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡	<1100W
Average power:/㎡	<280W
Self-check technology	LED spot self-check, communications check, power check, temperature monitor(need customization)
Remote monitoring	Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization)
Software environment	WindowsNT,Windows1999,WindowsXP
Luminous point width between centres	Deviation<3%
Brightness uniformity	<10%
Color uniformity(chromaticity coordinate)	±0.003
Power supply request	AC85-264V(50Hz-60Hz)
Contrast	(1000:1)
System protection	Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working)	working:10-95%
Humidity(storing)	storing:10-95%

Production Process

Incoming Inspection
SMD
Plug-in
Wave Soldering
After Welding
Testing
Semi Finished Aging
Module Assembly
Gluing
Finished Aging
Detection Finishing Warehousing

Packaging and Shipping

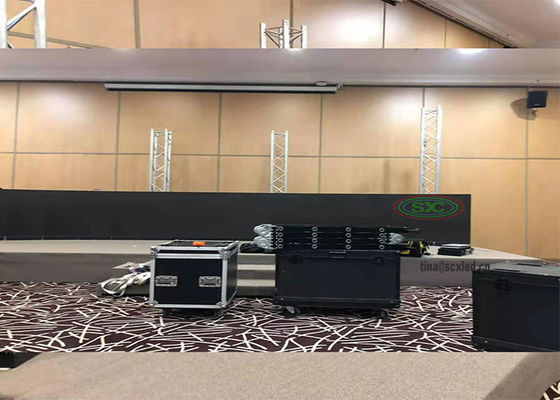

Wooden case or flight case package are available. Shipping by sea, air or DHL, multiple shipping ways for your choice.

Why Choose Us

Continues Quality

With more than 10 years experience in LED display production, equipment is updated regularly. Our unique standardized and modular production ensures continuous product quality.

Competitive Price

With large scale production capacity and professional production technology, we maintain effective modular production. We constantly promote technical innovation to reduce costs and benefit customers.

Fast Delivery

We strictly adhere to promised delivery dates, using emergency inventory procedures when necessary to maintain uninterrupted product supply.

Perfect Service

Pre-sales: We carefully evaluate your requirements and recommend suitable products.

After-sales: We track product usage to continuously improve our offerings.

About Us

Established in 2005, our clients cover more than 50 countries including USA, Europe, Dubai, North and Mid America, South America, and Asia. As a high-tech enterprise integrated with scientific research, design, production, maintenance, sales and system integration, we have a professional R&D team, experienced engineers, excellent marketing team, and 24-hour pre and after-sales service. We carefully select materials to create optimal solutions even in harsh environments.

Our team will be forever here to offer you full supports!
