HD 3 Years Warranty Full Color 3840hz P3.91 Indoor Curved Led Display Screen For Stage

HD 3 Years Warranty Full Color 3840hz P3.91 Indoor Curved Led Display Screen For Stage

  • HD 3 Years Warranty Full Color 3840hz P3.91 Indoor Curved Led Display Screen For Stage
  • HD 3 Years Warranty Full Color 3840hz P3.91 Indoor Curved Led Display Screen For Stage
  • HD 3 Years Warranty Full Color 3840hz P3.91 Indoor Curved Led Display Screen For Stage
  • HD 3 Years Warranty Full Color 3840hz P3.91 Indoor Curved Led Display Screen For Stage
HD 3 Years Warranty Full Color 3840hz P3.91 Indoor Curved Led Display Screen For Stage
Product Details:
Place of Origin: Shenzhen
Brand Name: SCX
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P3.91
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7 working days after receive your payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 3000sqm per month
Contact Now
Detailed Product Description
Pixel Pitch: 3.91mm Module Size: 250*250mm
Module Resolution: 64*64 Contrast: 3000:1
Module Pixles: 4096 Dots Pixel Density: 65410 Dots/ Sqm
Driving Method: 1/16 Scanning Color Temperature Condition: 3500K~9500K,(can Be Adjustable)
Number Of Colors: 16.7 Trillion
Highlight:

led stage display

,

stage led display

high definition 3 years warranty full color 3840hz p3.91 indoor curve led display screen for stage





Stage Led Screens Products function



1) High brightness, adjustable, can meet customer requirements according to the application environment;
2) Good uniformity, well solve the mosaic problem, with excellent light consistency;
3) For images and text, it has a clear, delicate and real display effect;
4) Large viewing angle, up to 110 degrees horizontally and 60 degrees vertically. Within this range, no matter from which angle you watch, there will be no image change or color shift;
5) Each LED lamp can be repaired, so the maintenance cost is low and easy to repair.





Stage Led Screens Specification

LED module
Pixel pitch(mm) 3.91mm
Module size(W×H) 250mmX250mm
Pixel configuration SMD2121
Module resolution(W×H) 64dots × 64dots
Module pixels 4096dots

LED cabinet
Cabinet size(WxHxD) 500mm×1000mm
Cabinet resolution 128dots×256dots
Cabinet pixels 10816dots
Driving method 1/16 scan, constant current
Weight(kg/pcs) 10kg/pcs
Material aluminum cabinet
Included 1. E-energy/Meanwell Power supplies
2. MBI5124IC/ICN2153 high refresh IC
3. Mounting/locking plates between cabinets
4. air plug Inter-connecting cables & ribbons (both power and signal)



Working voltage 110/220V 50Hz-60Hz
Average power consumption 350W/m²
Max power consumption 750 W/m²
Brightness > 1000 nits (cd/m²)
Gray level 65,536 levels
Refresh rate > 1920/3840Hz
Viewing angle 150°/150°
best Viewing distance 3.91m-100m
Frame rate > 60 frames/sec
Defects rate ≤0.00001
Available color palette 4.4 Trillion colors (RGB 14 bit control)
MTBF > 10,000hours
Life-span > 100,000 hours
Protective Grade IP45
Working temperature -20℃ ~ +60℃
Operating humidity 10%~90%







Stage Led Screens Detailed Pictures

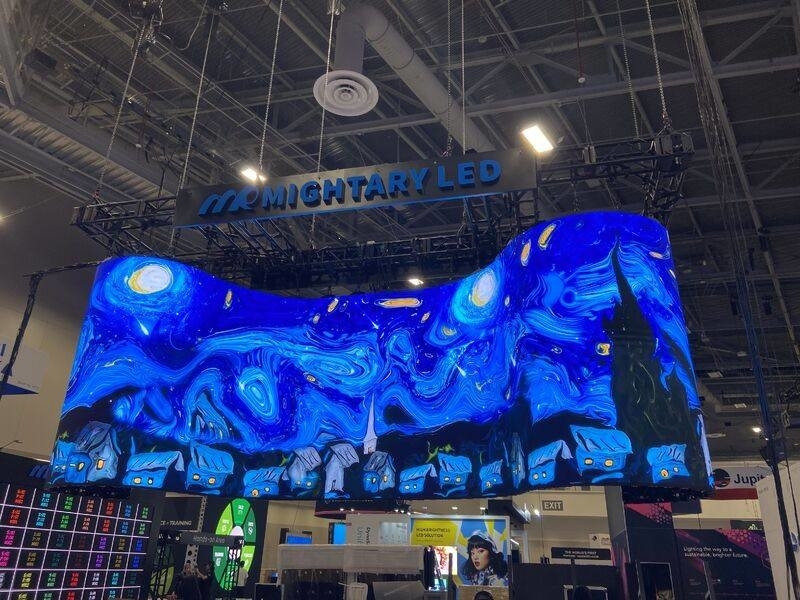

HD 3 Years Warranty Full Color 3840hz P3.91 Indoor Curved Led Display Screen For Stage 0

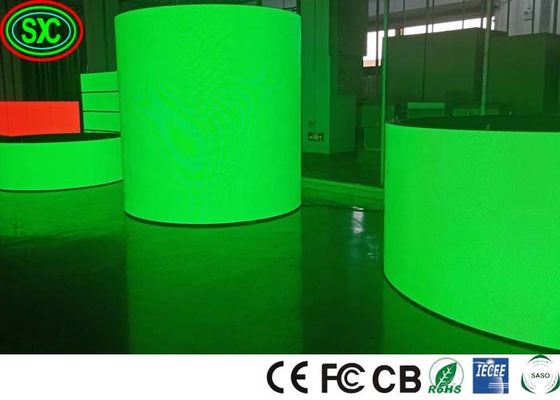

HD 3 Years Warranty Full Color 3840hz P3.91 Indoor Curved Led Display Screen For Stage 1

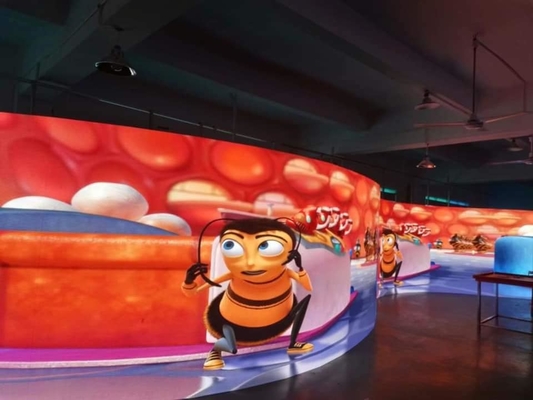

HD 3 Years Warranty Full Color 3840hz P3.91 Indoor Curved Led Display Screen For Stage 2

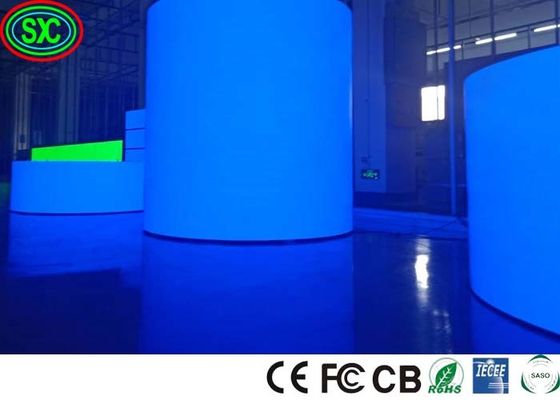

HD 3 Years Warranty Full Color 3840hz P3.91 Indoor Curved Led Display Screen For Stage 3







Why choose us



Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.
