Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | Shenzhen |
| Brand Name: | SCX |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | SCX-2.604 |
| Minimum Order Quantity: | 3 Square Meter/Square Meters |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after receive your payment |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 3000sqm per month |
| Model Size: | 250*250mm | Module Resolution: | 96*96 |
|---|---|---|---|
| Module Pixles: | 7056 | Cabinet Size(WXH): | 500*500mm |
| Cabinet Resolution: | 192*192 | Pixel Density: | 147475 Dots/m2 |
| Material: | Die-casting Aluminum | Cabinet Weight: | 7.5KG |
| Driving Method: | 1/28 Scanning | Contrast Ratio: | 3000:1 |
| Highlight: | stage background led screen,stage led display |
||
High Definition Indoor LED Video Wall Screen P2.6mm Stage Led Screens HD LED Display Panel 500x500mm
Products function introduction
1) High brightness, adjustable, can meet customer requirements according to the application environment;
2) Good uniformity, well solve the mosaic problem, with excellent light consistency;
3) For images and text, it has a clear, delicate and real display effect;
4) Large viewing angle, up to 110 degrees horizontally and 60 degrees vertically. Within this range, no matter from which angle you watch, there will be no image change or color shift;
5) Each LED lamp can be repaired, so the maintenance cost is low and easy to repair.
| Module Parameters | |||||
| Pixel Pitch | 2.604mm | ||||
| Pixel Configuration | 1R1G1B | ||||
| Density | 147456 pixels/sqm | ||||
| LED Lamp | SMD2020 | ||||
| Module Size | 250*250mm | ||||
| Module Resolution | (W)96Pixels * (H)96Pixels | ||||
| Working Voltage | DC5V | ||||
| Scan Mode | 1/24 Scan | ||||
| Port Type | HUB75 | ||||
| Screen Parameters | |||||
| Cabinet Size | (W)1000*(H)250*(D)70mm | ||||
| Cabinet Material | Die-casting aluminum | ||||
| Cabinet Weight | 6KG | ||||
| Cabinet Resolution | 384*96 Pixels | ||||
| Module Qty | 4pcs | ||||
| Power Supply | 200W | ||||
| Working Voltage | AC220V±10% | ||||
| Max Power Consumption | 600W/sqm | ||||
| Ave Power Consumption | 200W/sqm | ||||
| Brightness | 1200 Nits | ||||
| Refresh Rate | 3840Hz | ||||
| Frame Frequency | 60Hz | ||||
| Grey Scale | 14 bit | ||||
| Brightness Level | 256 levels | ||||
| Best View Distance | 3M-30M | ||||
| View Angle | 120°(Horizontal); 120°(Vertical) | ||||
| Protection Degree | IP30 | ||||
| Working Temperature | -20℃ ~ +60℃ | ||||
| Relative Humidity | 10%-95% | ||||
| Operation system | WIN7/WIN8 | ||||
| Control Method | Synchronous or Asynchronous | ||||
| Control System | Nova/Linsn/ColorLight | ||||
| Control Distance | 100M(Ethernet cable); 20KM(Optical fiber cable) | ||||
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI | ||||
| Out-of-Control Pixel Rate | ≤0.01% | ||||

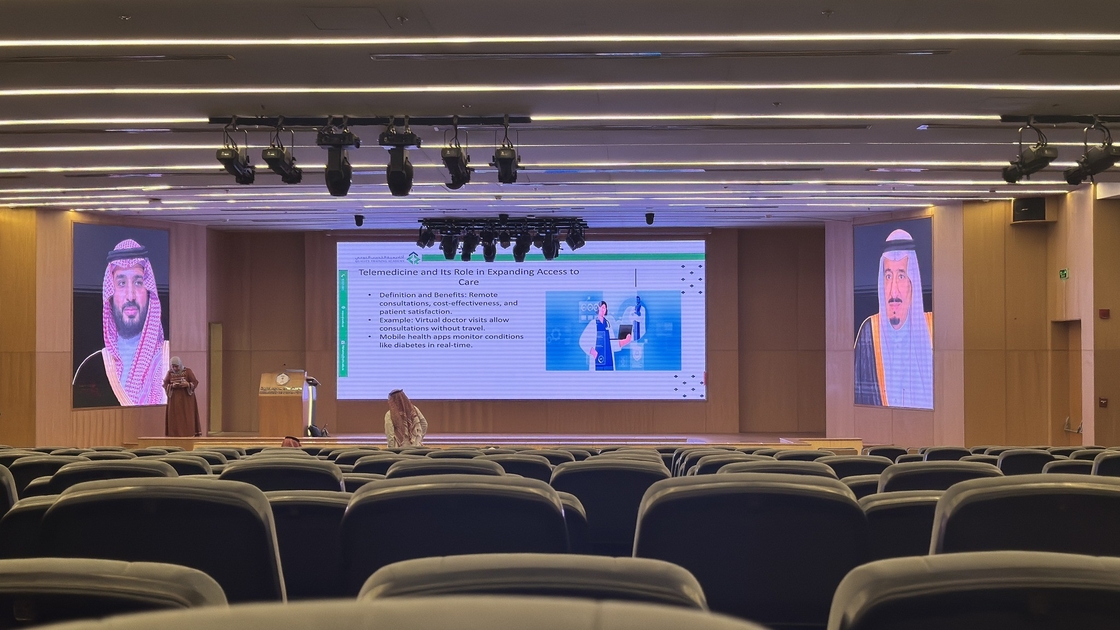

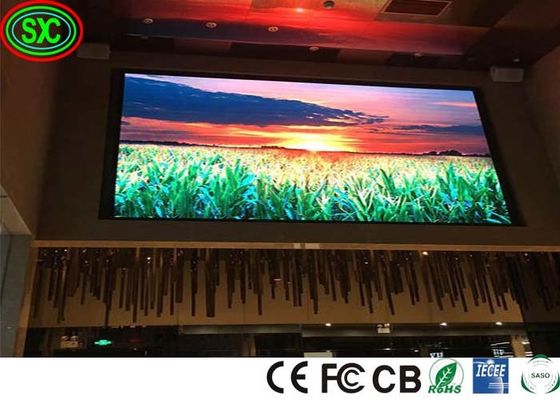

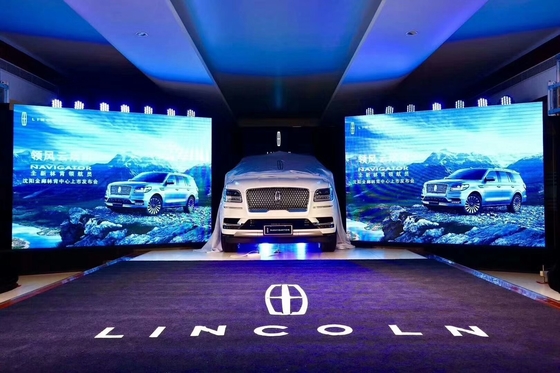

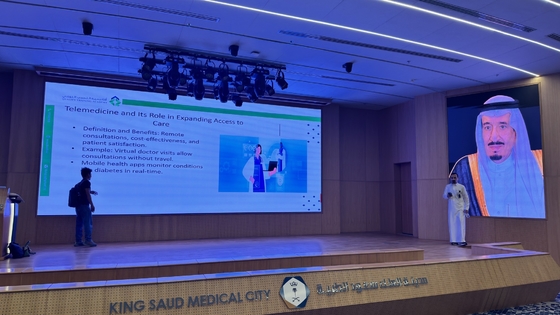

Our Projects
Why choose us
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
