Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.

|
| Place of Origin: | Shenzhen in China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL/CB/IECEE |
| Model Number: | P3.91 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7 working days after receive your payment |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 3000sqm per month |
| Pixel Pitch: | 3.91mm | Module Size: | 250mm × 250mm |
|---|---|---|---|
| Module Resolution: | 64dots × 64dots | Module Pixles: | 4096dots |
| Pixel Density: | 65410dots/m2 | Brightness: | ≥1300cd/㎡ |
| Driving Method: | 1/16 Scan | Contrast Ratio: | ≥3000:1 |
| Number Of Colors: | 16.7 Trillion | Viewing Angle: | Horizontal 140° Vertical 120° |
| Gray Scale: | 16384 | ||
| High Light: | smd led display,outdoor smd led display |
||
P3.91 Rental Stage LED Screen Background Pantalla LED Display Indoor Video Wall for Concert
Stage Led Screen Features
1. High refresh, high gray-scale, high-resolution and high-contrast, coupled with the industry's advanced point by point correction technology, making the display pictures more gorgeous and vivid.
2. With high contrast, consistent white balance, uniform display color, high-definition screen, it can meet the requirements of live
3. Frequent Video source switching and powerful seamless switching system.
4. Not only easy to install and dismantle, but also have cost advantages which fit for making large-scale stage background
5. With professional audio and video processing systems to support live, large and clear live images, breaking the seat restrictions, allowing remote viewing performance easier, giving an immersive audio-visual feast. Wonderful scenes, slow-motion playback, close-up, creating a special background environment.
Stage Led Screen Specifications
| Pixel Pitch | 3.9mm | 4.81mm | 5.682mm | 6.25mm |
| LED Configuration | SMD2020 | SMD3528 | SMD3528 | SMD3528 |
| Pixel Density | 65536dot/m2 | 43222dot/m2 | 30973dot/m2 | 25600dot/m2 |
| Resolution | 64x64dot | 52x52dot | 44x44dot | 40x40dot |
| Cabinet Size | 500x500X75mm | 500x500X75mm | 500x500X75mm | 500x500X75mm |
| 500x1000X75mm | 500x1000X75mm | 500x1000X75mm | 500x1000X75mm | |
| Cabinet Weight | 7KG,12KG | 7KG,12KG | 7KG,12KG | 7KG,12KG |
| IP Rating ( front/back) | IP30 | IP30 | IP30 | IP30 |
| Scanning Mode | 16S | 13S | 11S | 10S |
| Brightness Intensity | ≥1200CD/m2 | ≥1200CD/m2 | ≥1500CD/m2 | ≥1500CD/m2 |
| Viewing Angle (H/V) | 140°/140° | 120°/120° | 120°/120° | 120°/120° |
| View Distance | >5m | >6m | >7m | >8m |
| Gray Scale | 14bit | 14bit | 14bit | 14bit |
| Display Scale | 16.7M | 16.7M | 16.7M | 16.7M |
| Max.Power Consumption | 716W/m² | 582W/m² | 493W/m² | 448 W/m² |
| Ave.Power Consumption | 238W/m² | 194W/m² | 164W/m² | 150W/m² |
| Refresh Frequency | ≥1920HZ | ≥1920HZ | ≥1920HZ | ≥1920HZ |
| Gamma Correction | -5.0~+5.0 | -5.0~+5.0 | -5.0~+5.0 | -5.0~+5.0 |
| Environmental | INDOOR | INDOOR | INDOOR | INDOOR |
| Brightness Adjustment | 0 - 100 levels adjustable Synchronous display with control PC by DVI Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI AC100~240 50/60HZ - 20℃~+50℃ 10~95% RH 100,000hours |
|||
| Control Mode | ||||
| Support Input | ||||
| Operation Power | ||||
| Operating Temperature | ||||
| Operating Humidity | ||||
| Operating Life | ||||

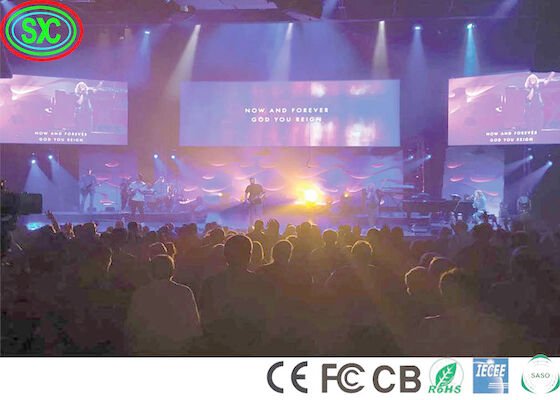

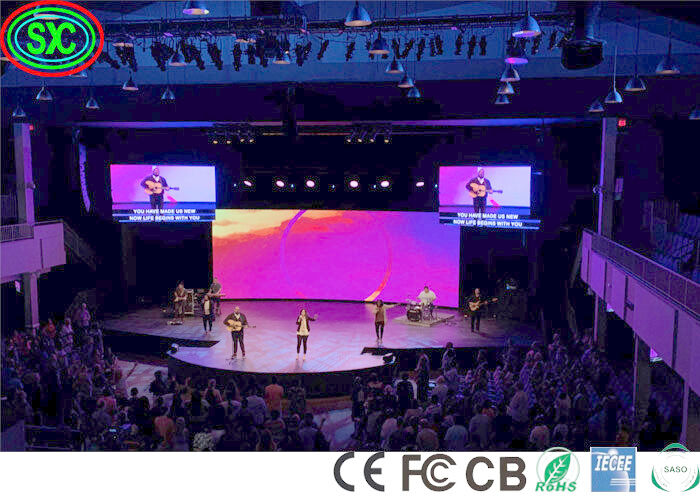

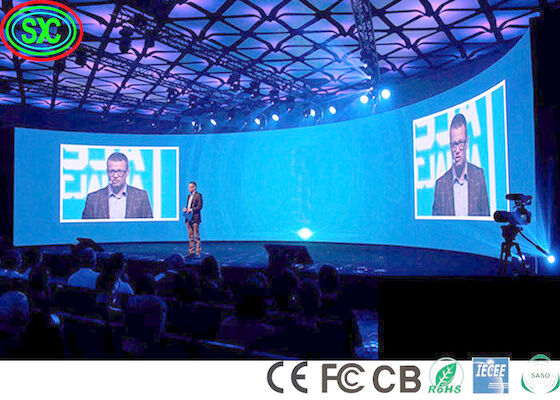

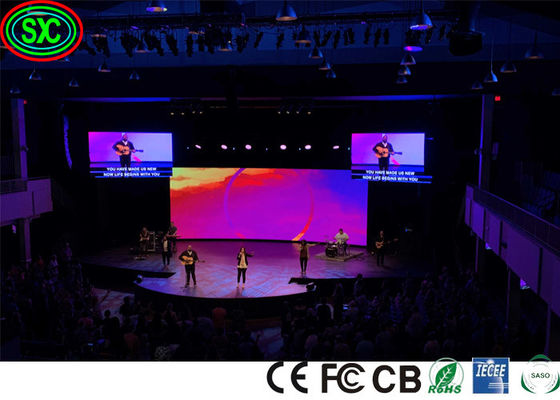

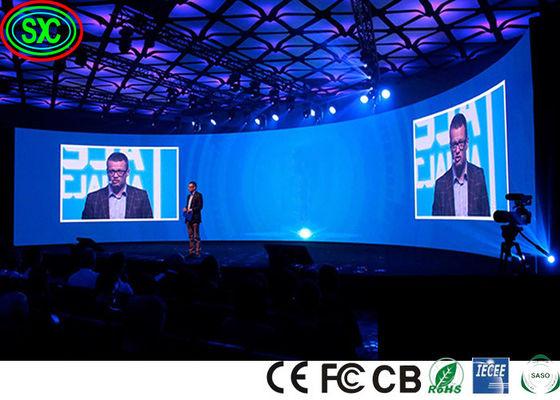

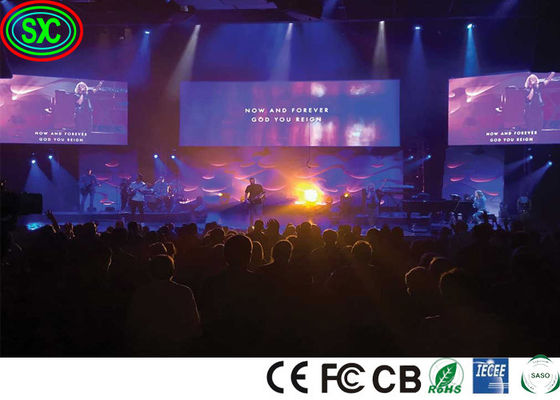

Stage Led Screen Pictures
Stage Led Screen Projects
Our advantages
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality goods.
FAQ
What kind of payment terms you can accept ?
We can accept T/T and Western Union.
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection before shipment ensure the
quality of our products continuity.
What is your delivery time ?
Within 7-35 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 10 years.Mass and professional production
ensure our led display’s competitiveness.
