|Place of Origin:||made in china|
|Minimum Order Quantity:||5sqm|
|Packaging Details:||flight case, wooden case, carton, it is up to you.|
|Delivery Time:||7-10 working days after receive your payment|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||5000sqm per month|
|Material:||Steel Iron And Aluminum||Color:||RGB|
advertising led display board,
outdoor advertising led display
p8 SMD full color waterproof advertising led display 1/4 scanning with iron cabinet

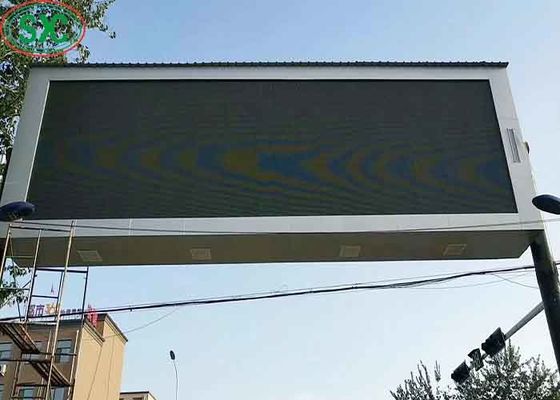

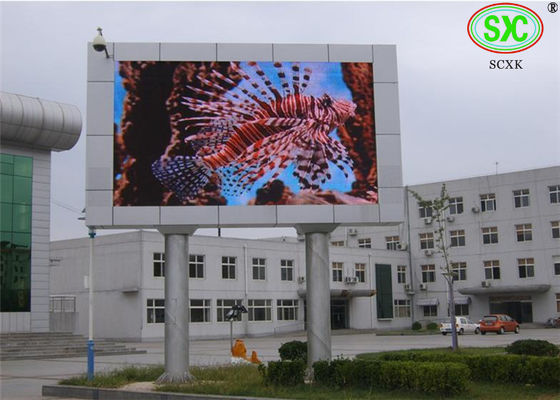

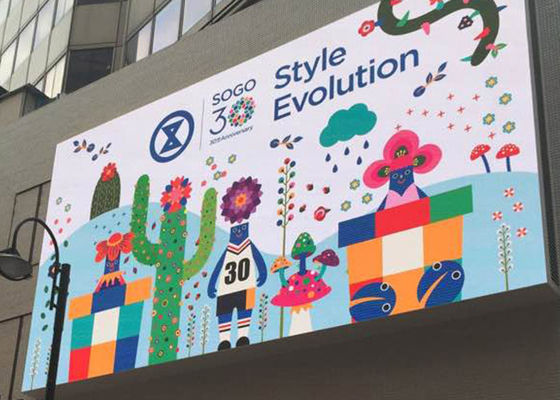

P8 SMD Outdoor Full Color LED Display Screen
8mm pixel pitch,1R1G1B,15625 dots/sqm,P8 SMD Outdoor Full Color LED Display Screen creates high brightness and energy saving,display variable video resources,animations,messages to attract attention. We can see P8 SMD Outdoor Full Color LED Display Screen in many occasions,like Sports,advertising,traffic,entertainment,stage,events,stations,shopping center,airport,exhibitions, car shows, fashion shows, concerts, ceremonies, etc
Sports,advertising,traffic,entertainment,stage,events,stadium,train station,bus station,shopping center,airport,exhibitions, car shows, fashion shows, concerts, ceremonies, et
Hanging ,floor type,push-in- type,wall mounting type,brace type,pillar base...
|LED Lamps||Type||SMD3535(High Brightness LEDs)|
|LED Standard||Real Pixel(1R1G1B)|
|LED Module||Pixel Pitch||8mm|
|LED Cabinet||Cabinet Size||768mmX768mm|
|Cabinet Resolution||96pixels *96pixels|
|LED Display||Pixel Density||15625pixels/sq.m|
|Power Supply||Series connection|
|Best Viewing Distance||16m~200m|
|Max Power Consumption||600 w/sq.m|
|Average Power Consumption||300 w/sq.m|
|Input Voltage||AC220V/50H or AC110V/60H|
|Grey Scale Levels||1024|
|Display Colors||R(1024) x G(1024) x B(1024)|
|Failure percentage of leds||less than 0.0003|
|Drive Mode||1/4 scaning|
|Control System||Control method||Synchronization & Asynchronization|
|Control System||LINSN Control System (sender,receiver,HUB with 75 interface,software) ( within xinxun Asynchronization)|
|Software||LED Studio (LINSN)|
|PC Operating system||
Microsoft Windows 7, 98, 2000, XP and Vista
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.
About our led displays
commercial advertising LED display screen, Stadium perimeter LED display screen, Mobile trailer LED display screen for mobile media,shopping mall LED display screen for logo showing, bank&stock exchange LED display screen for rates showing, train & bus station LED display screen
air port LED display screen, telecommunication LED display screen system for information showing and instruction .
2. High Contrast ratio: 4000:1
Which is a very high level to ensure a vivid image of our LED display screen system.
3. First-class LED chip:
Supplied by Nichia of Japan & other high strictly selected LED chip to ensure the long lifetime and high brightness of our LED display screen system
4. Clear vivid image quality:
Even in direct, full-on sunlight to ensure you attract more audience to get short ROI of your LED display screen's investment.
Methods for Quality Assurance
1. 100% fully test Condition: 72 hours with 256 gray level
b. Vibration Testing
Condition: 3-5 min up and down in 5mm range
The package and shippment
we can receive all kinds of transportation. and the shippment term. FOB and CIF. EXW and so on.
we can choose the best shippment which is convenient to you!
SCXK group can give you the short delivery time and With the large production ability ,
you can feel free about this . By air ,by train, by sea?
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
A. Flight case Packing
1)150KG Per flight case
2)3 cabinets in one case
3)Flight case size: 1010mm*560mm*1175mm=39inch*22inch*46inch
B. Plywood case
1)180KG per plywood case
2)3 cabinets in one case
3)Plywood case size: 1120mm*585mm*930mm= 44inch*23inch*36inch
C.customized packing is acceptable
D. 20"FT container loading of 100sq.m
♦ Why choose us:
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
After-sales:We will track the products usage and then constantly perfect our products.
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 7-10 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure
our led display’s competitiveness.
