Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | made in china |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | SCXK-P6 |
| Minimum Order Quantity: | 5sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after receive your payment |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000sqm per month |
| Material: | Steel And Aluminum | Color: | RGB |
|---|---|---|---|
| Function: | Video,words,text,picture | Water Proof: | IP65 |
| View Distance: | 5m-200m | Module Size: | 192mm X192mm |
| High Light: | led display smd,outdoor smd led display |
||

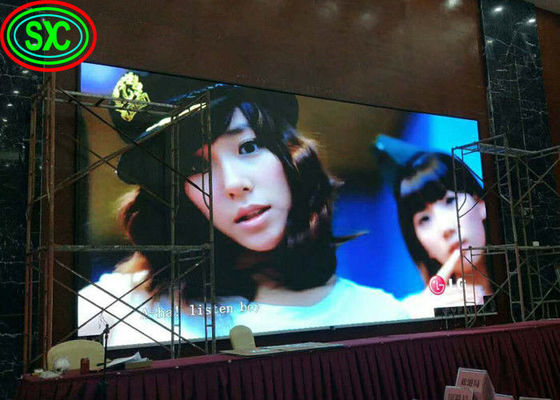

p6 192MM*192MM full color outdoor led video display with front maintenance cabinet commercial advertising led display
P6 smd Outdoor Full Color LED Display Screen
6mm pixel pitch,1R1G1B,27777dots/sqm,P16 SMD Outdoor Full Color LED Display Screen creates high brightness and energy saving,display variable video resources,animations,messages to attract attention. We can see p6 SMD Outdoor Full Color LED Display Screen in many occasions.
We have 10 year production experience, We have 12-year design experience of offering solution, installation, and after-sales service, etc. According to different environment conditions, too cold temperature till -40℃ or too hot temperature till +55℃, we carefully choose different suitable materials and make the best offer for every customer. It differs in cables, LED lamps, plastic masks, waterproof materials, IC, etc. Faced with a variery of requirements, we offer flexible diverse solutions. We offer 24-hour all- direction online service.
Application Areas
·---Outdoor advertising, digital billboards, advertising in big companies
·---Sports halls, fields, playgrounds.
·---Airports, bus stations and railway passenger terminals.
·---Facades of shopping malls, department stores, banks and car dealerships.
·---Architecture and social projects, information systems in cities.
·---Show-business, concerts, festivals, motor shows and other public events.
| Specifictions | |||||||||
| LED Lamps | Type | SMD3535(High Brightness LEDs) | |||||||
| LED Standard | Real Pixel(1R1G1B) | ||||||||
| Red Wavelength | 625-630nm | ||||||||
| Green Wavelength | 515-530nm | ||||||||
| Blue Wavelength | 465-475nm | ||||||||
| LED Module | Pixel Pitch | 6mm | |||||||
| Module Size | 192mx192m | ||||||||
| Module Resolution | 32*32dots | ||||||||
| LED Cabinet | Cabinet Size | 768mmX800mm | |||||||
| Cabinet Resolution | 80pixels *768pixels | ||||||||
| Cabinets Material | Iron steel cabinet | ||||||||
| LED Display | Pixel Density | 27777pixels/sq.m | |||||||
| Drive IC | MBI5024 | ||||||||
| Power Supply | Series connection | ||||||||
| Brightness | >8500cd/sqm | ||||||||
| Display Color | 16.7million | ||||||||
| Viewing Angle | 110°(Horizontal),50°(Vertical) | ||||||||
| Best Viewing Distance | 5m~200m | ||||||||
| Max Power Consumption | 600 w/sq.m | ||||||||
| Average Power Consumption | 300 w/sq.m | ||||||||
| Weight | 40Kgs/sq.m | ||||||||
| Refresh Rate | 3000hz | ||||||||
| Input Voltage | AC220V/50H or AC110V/60H | ||||||||
| Output Voltage | DC5V,40A | ||||||||
| Grey Scale Levels | 16bit | ||||||||
| Display Colors | R(1024) x G(1024) x B(1024) | ||||||||
| MTBF | 10,000 hours | ||||||||
| Life-span | 100,000 hours | ||||||||
| Protection Level | IP65 | ||||||||
| Failure percentage of leds | less than 0.0003 | ||||||||
| Working Temperature | -25℃~65℃ | ||||||||
| Drive Mode | 1/8 scaning | ||||||||
| Working Humidity | 10%~99% | ||||||||
| Control System | Control method | Synchronization & Asynchronization | |||||||
| Control System |
LINSN Control System (sender,receiver,HUB with 75 interface,software) ( within xinxun Asynchronization) |
||||||||
| Software | LED Studio (LINSN) | ||||||||
| Input Signal |
MPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RM/ASF/BMP /GIF/PCX etc |
||||||||
| PC Operating system | Microsoft Windows 7, 98, 2000, XP and Vista | ||||||||
Methods for Quality Assurance
a. Aging
1. 100% fully test Condition: 72 hours with 256 gray level
b. Vibration Testing
Condition: 3-5 min up and down in 5mm range
Company information
Order Procedure
Negotiation---First solution recommended---Finalize all the details---30%deposit in advance or full deposit---
Start production---Pay the balance---shipment by DHL--provide tracking number---feedback.
A. Flight case Packing
1)150KG Per flight case
2)3 cabinets in one case
3)Flight case size: 1010mm*560mm*1175mm=39inch*22inch*46inch
B. Plywood case
1)180KG per plywood case
2)3 cabinets in one case
3)Plywood case size: 1120mm*585mm*930mm= 44inch*23inch*36inch
C.customized packing is acceptable
D. 20"FT container loading of 100sq.m
1) T/T, 30% deposit, 70% before shippment.
2) 100% Western Union in advance.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
♦ FAQ
What kind of payment terms you can accept ?
We can accept T/T and Western Union.
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 7-35 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure
our led display’s competitiveness.
