Commercial P20 DIP Outdoor Full Color Led Display Unit 10000cd Brightness

Commercial P20 DIP Outdoor Full Color Led Display Unit 10000cd Brightness

  • Commercial P20 DIP Outdoor Full Color Led Display Unit 10000cd Brightness
  • Commercial P20 DIP Outdoor Full Color Led Display Unit 10000cd Brightness
  • Commercial P20 DIP Outdoor Full Color Led Display Unit 10000cd Brightness
  • Commercial P20 DIP Outdoor Full Color Led Display Unit 10000cd Brightness
  • Commercial P20 DIP Outdoor Full Color Led Display Unit 10000cd Brightness
Commercial P20 DIP Outdoor Full Color Led Display Unit 10000cd Brightness
Product Details:
Place of Origin: Shenzhen
Brand Name: SCX
Certification: CE/ROHS/FCC/ISO/UL
Model Number: SCXK- P20
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T, Western Union
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Module Size: 320mm*160mm Module Resolution: 16*8
LED Encapsulation: 1R1G1B Pixel Density: 2500dots/sqm
Cabinet Size: 1280*960mm Pixel Pitch: 16mm
LED Size: DIP 346 Driving Mode: Static Full Color
Brightness: 1000cd Contrast: ≥3000:1
Display Color: 1.07 Billion Brightness Adjustment: 0-100% 8 Levels
Operation Power: 220V 60HZ Working Voltage: DC5V
Max Power Consumption: 750 W Average Power Consumption: 280 W
Frame Update Frequency: 100hz Screen Refresh Frequency: 480hz
Gamma Correction: (-0.5—5.0) Operating Temp.: - 10° —+55° Celcius Degree
Operating Humidity: 10 - 90 % RH Operating Life: 100,000 Hours
MTBF: 5000 Hours Protection Level: IP65
Out Of Control Pixel Rate: 0.01% View Angle: 120° Degree Horizontal & 60° Degree Vertical
Input Signal Support: Composite, S-Video,Component,VGA, DVI,HDMI,SDI,HD_SDI Control Distance: UTP CAT5E:100m; Multi-mode Fiber:500m;Single-mode Fiber:10km
Support VGA Mode: 800 X 600, 1024 X 768, 1280 X 1024, 1600 X 1200 Brightness Correction: Dot By Dot,module By Module, Cabinet By Cabinet
Control Mode: Synchronous Display With Control PC By DVI
High Light:

full color led signs outdoor

,

outdoor full color led screen

Shenzhen Manufacturering Top Selling P20 DIP Outdoor Full Color LED Advertising Display Screen 1R1G1B Production Description :





Part No. P20
Module Size 320*160mm
Module Resolution 16*8
Cabinet Size 1024*1024mm
Pixel Pitch 20mm
LED Size DIP 346
Driving Mode Static Full Color
Brightness 10000cd
Contrast ≥3000:1
Display Color 1.07 billion
View Angle 120° degree Horizontal & 60° degree Vertical110
Brightness Adjustment 0-100% 8 levels
Frame Update Frequency 100hz
Screen Refresh Frequency 480hz
Gamma Correction (-0.5—5.0)
Operating Temp. - 10° —+55° Celcius degree
Operating Humidity 10 - 90 % RH
Operating Life 100,000 Hours
MTBF 5000 Hours
Protection Level IP65
Out of Control Pixel Rate 0.01%
Input Signal Support Composite, S-Video,Component,VGA, DVI,HDMI,SDI,HD_SDI
Control Distance UTP CAT5E:100m; Multi-mode Fiber:500m;Single-mode Fiber:10km
Support VGA Mode 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200,
Brightness Correction Dot by Dot,module by module, cabinet by cabinet
Control Mode Synchronous display with control PC by DVI



♦ Applications



 --- Outdoor and indoor advertising, digital billboards, advertising companies
 --- Sports halls, fields, playgrounds,school church
 --- Airports, bus stations and railway passenger terminals.
 --- Facades of shopping malls, department stores, banks and car dealerships.
 --- Architecture and social projects, information systems in cities.
 --- Show-business, concerts, festivals, motor shows and other public events.





1. Lightweight. Convenient in transporting and installing and saving labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed and dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.



♦ Specifications

1 DIP 346 led display
2 Supper refresh rate
3 Supper energy saving system
4 High brightness

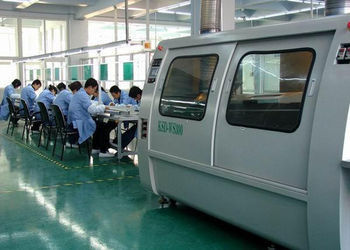

Shenzhen Manufacturering Top Selling P20 DIP Outdoor Full Color LED Advertising Display Screen 1R1G1B Production process:

1) Incoming Inspection→2)SMD→3)Plug-in

→4) Wave Soldering→5)After Welding→6)Testing

→7) Semi Finished Aging→8)Module Assembly

→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing















Shenzhen Manufacturering Top Selling P20 DIP Outdoor Full Color LED Advertising Display Screen 1R1G1B Certifications:





Why choose us:



Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.
