Lightweight SMD Outdoor Full Color LED Display Advertising LED Screen led display outdoor advertising

Brand Name:	SCX
Model Number:	SCXK- P10
MOQ:	Negotiation
Price:	negotiation
Payment Terms:	T/T, Western Union
Supply Ability:	3000sqm per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen

Certification:

CE/ROHS/FCC/ISO/UL

Module Size:

320mm*160mm

Module Resolution:

32*16

LED Encapsulation:

1R1G1B

Pixel Density:

10000dots/sqm

Cabinet Size:

960*960mm

Pixel Pitch:

10mm

LED Size:

SMD 3535

Driving Mode:

Static Full Color

Brightness:

10000cd

Contrast:

≥3000:1

Display Color:

1.07 Billion

Brightness Adjustment:

0-100% 8 Levels

Operation Power:

220V 60HZ

Working Voltage:

DC5V

Max Power Consumption:

750 W

Average Power Consumption:

280 W

Frame Update Frequency:

100hz

Screen Refresh Frequency:

480hz

Gamma Correction:

(-0.5—5.0)

Operating Temp.:

- 10° —+55° Celcius Degree

Operating Humidity:

10 - 90 % RH

Operating Life:

100,000 Hours

MTBF:

5000 Hours

Protection Level:

IP65

Out Of Control Pixel Rate:

0.01%

View Angle:

120° Degree Horizontal & 60° Degree Vertical

Input Signal Support:

Composite, S-Video,Component,VGA, DVI,HDMI,SDI,HD_SDI

Control Distance:

UTP CAT5E:100m; Multi-mode Fiber:500m;Single-mode Fiber:10km

Support VGA Mode:

800 X 600, 1024 X 768, 1280 X 1024, 1600 X 1200

Brightness Correction:

Dot By Dot,module By Module, Cabinet By Cabinet

Control Mode:

Synchronous Display With Control PC By DVI

Packaging Details:

flight case, wooden case, carton, it is up to you.

Highlight:

full color led signs outdoor

full color outdoor led display

Product Description

SCXK Manufacturering Excellent Quality SMD Outdoor Full Color LED Display Advertising LED Screen Production Description :

Part No.	P10
Driving Mode	Static Full Color
Brightness	10000cd
Contrast	≥3000:1
Display Color	1.07 billion
View Angle	120° degree Horizontal & 60° degree Vertical110
Brightness Adjustment	0-100% 8 levels
Operation Power	220V 60HZ
Max Power Consumption	750 w
Average Power Consumption	280 w
Frame Update Frequency	100hz
Screen Refresh Frequency	480hz
Gamma Correction	(-0.5—5.0)
Operating Temp.	- 10° —+55° Celcius degree
Operating Humidity	10 - 90 % RH
Operating Life	100,000 Hours
MTBF	5000 Hours
Protection Level	IP65
Out of Control Pixel Rate	0.01%
Input Signal Support	Composite, S-Video,Component,VGA, DVI,HDMI,SDI,HD_SDI
Control Distance	UTP CAT5E:100m; Multi-mode Fiber:500m;Single-mode Fiber:10km
Support VGA Mode	800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200,
Brightness Correction	Dot by Dot,module by module, cabinet by cabinet
Control Mode	Synchronous display with control PC by DVI

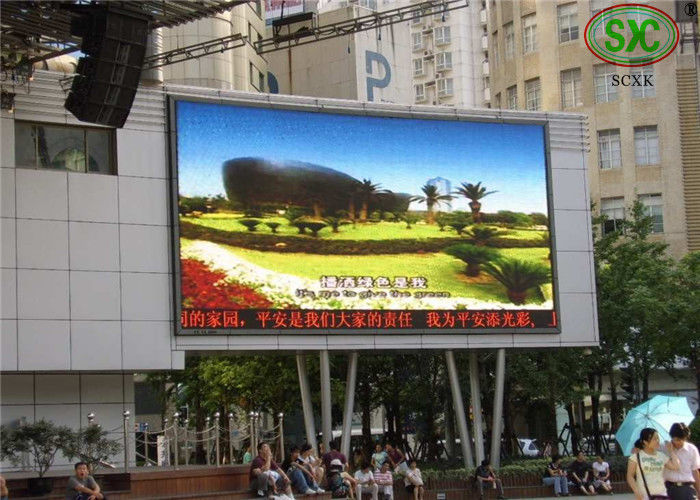

♦ Applications

--- Outdoor and indoor advertising, digital billboards, advertising companies
--- Sports halls, fields, playgrounds,school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car dealerships.
--- Architecture and social projects, information systems in cities.
--- Show-business, concerts, festivals, motor shows and other public events.

1. Lightweight. Convenient in transporting and installing and saving labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed and dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.

♦ Specifications

1 DIP 346 led display
2 Supper refresh rate
3 Supper energy saving system
4 High brightness

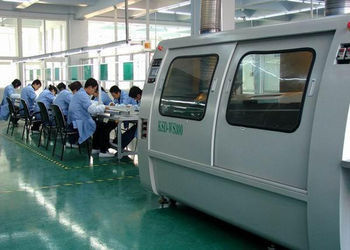

SCXK Manufacturering Excellent Quality SMD Outdoor Full Color LED Display Advertising LED Screen Production process:

1) Incoming Inspection→2)SMD→3)Plug-in

→4) Wave Soldering→5)After Welding→6)Testing

→7) Semi Finished Aging→8)Module Assembly

→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing

Lightweight SMD Outdoor Full Color LED Display Advertising LED Screen led display outdoor advertising 0

Lightweight SMD Outdoor Full Color LED Display Advertising LED Screen led display outdoor advertising 2

SCXK Manufacturering Excellent Quality SMD Outdoor Full Color LED Display Advertising LED Screen Certifications:

Why choose us:

Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.

Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.

Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.

Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.
