products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Advertising LED Screens
Created with Pixso.

P10 full color Outdoor LED Display Screen 10mm Pixel Pitch IP65 Waterproof

P10 full color Outdoor LED Display Screen 10mm Pixel Pitch IP65 Waterproof

Brand Name: SCXK
Model Number: P10
MOQ: 3 pcs
Price: negotiation
Payment Terms: T/T, Western Union
Supply Ability: 5000 sqm per month
Detail Information
Place of Origin:
Shenzhen in China
Certification:
CE/ROHS/FCC/ISO/CB
Pixel Pitch:
10mm
Tube Chip Color:
Full Color
Led Type:
SMD 3535
Display Function:
Video/Text/Image
Waterproof:
IP65
Cabinet Material:
Iron Or Die-casting Aluminum
Driver Mode:
4S
Packaging Details:
flight case, wooden case, carton, it is up to you.
Highlight:

rgb led screen

,

full color outdoor led display

Product Description
Outdoor Shopping Mall Street Advertising LED Panels P10 Big Full Color LED Display Screen
Production Process
  • Incoming Inspection
  • SMD
  • Plug-in
  • Wave Soldering
  • After Welding
  • Testing
  • Semi Finished Aging
  • Module Assembly
  • Gluing
  • Finished Aging
  • Detection Finishing Warehousing
Quality Assurance

5 Years warranty. Even after the warranty period, we continue to provide support and service for clients. Within warranty period, if used according to instructions, any product malfunction or damage will be repaired or replaced at no cost.

Maintenance Costs Apply If:
  • Malfunction caused by incorrect use, unauthorized repairs or alterations
  • Damage from fire, flood, abnormal voltage, natural disasters or secondary damage
  • Malfunction from falls or transportation failures after purchase
  • Improper operation not following user manual
  • Malfunction caused by external factors or devices
Product Specifications
Specification Detail
Lamp size 3535
Resolution/mm 10
Pixel configuration RGB 3 in 1
Pixel density 10000/m²
Module resolution 32x16
Module size 320x160mm
View distance ≥10m
White balance brightness >5000cd/㎡
Color temperature 6500K-9500K
Viewing angle 120° (H) x 120° (V)
Working temperature -20°C to 45°C
Protection grade IP65
Lifetime 100,000 hours
Key Features
  • High brightness (5500cd standard, up to 10000cd) for excellent visibility in sunlight
  • Superior waterproof performance with IP65 rating
  • Strong UV resistance for outdoor durability
  • Automatic brightness adjustment based on ambient light
  • High refresh rate (1200Hz+) for smooth video playback
  • Remote monitoring and control capabilities
  • Easy content updates via computer control
P10 full color Outdoor LED Display Screen 10mm Pixel Pitch IP65 Waterproof 0

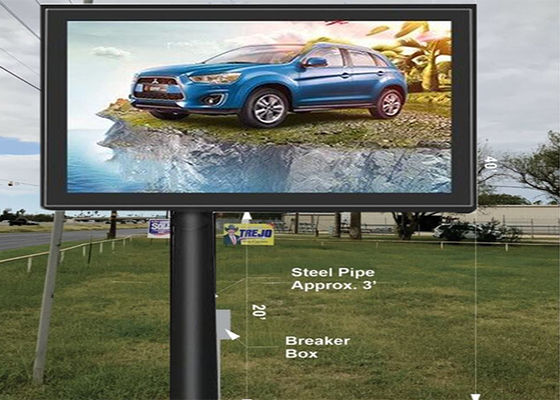

Installation Method
P10 full color Outdoor LED Display Screen 10mm Pixel Pitch IP65 Waterproof 1
Additional Benefits
  • Energy-saving automatic brightness adjustment
  • High-quality image reproduction with 10/14-bit processing
  • Flexible content management system
  • Remote operation capability
  • Scheduled on/off functionality
Our Advantages
  • Professional LED display manufacturer
  • OEM service available with no minimum order quantity
  • Fast delivery (typically 6-8 working days)
  • Free design drawings provided
  • Remote control and adjustment capabilities
  • Custom packaging options (wooden or flight cases)
  • 24-hour customer service response
  • Strong R&D team ensuring quality products



Our team provides comprehensive support for all your LED display needs!
