Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.

|
| Place of Origin: | Shenzhen in China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/CB/UL |
| Model Number: | P3 |
| Minimum Order Quantity: | 2 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after receive your payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000sqm per month |
| Pixel Pitch: | 3mm | Tube Chip Color: | Full Color |
|---|---|---|---|
| Led Type: | SMD1921 | Display Function: | Video/Text/Image |
| Waterproof: | IP43 | Cabinet Material: | Die-catsing Aluminum |
| Frame Frequency: | >=60HZ | Average NO Failure: | >=1000hours |
| Transmiiting Distance: | Internet Cable <100m | Refresh Rate: | >=1920HZ |
| Maximum Power: | 600/m2 | ||
| High Light: | rgb led screen,full color outdoor led display |
||
Indoor Stage Background Full Color LED Video Walls Screen for Live Events,Touring Concert & Performing Acts
As you know, the led technology has changed the world rapidly. As a good application of this technology, led screen has been used universally in different areas. They bring us wonderful visual and auditory experience, Making the world colorful and beautiful.
Module Parameter:
| Pixel pitch | 3mm |
| Pixel configuration | 1R1G1B |
| LED type | 3-in-1 SMD 2121 |
| Module size | 192x192mm |
| Module resolution | 32*32dots |
Cabinet Parameter:
| Cabinet size | 576x576mm |
| Cabinet material | die casting aluminum |
| Cabinet weight | 6.5kg |
| Ingress protection | IP43 |
Whole Screen Parameter
| Pixel density | 111111dots/m² |
| Brightness | ≥1500 cd/m² |
| Viewing angle | H≥140° V≥140° |
| Min.viewing distance | 6m |
| Max.power consumption | 750W/m² |
| Avg.power consumption | 300W/m² |
| Working voltage | 110~220VAC±15% |
| Interface | HUB75 |
| Colors | 16.7millon colors |
| Gray level | 65536 |
| Refresh rate | >1920Hz |
| MTBF | ≥100,000 hours |
| Lifespan | ≥100,000 hours |
| Operating temperature | -10℃ ~ +40℃ |
| Storage temperature | -20℃ ~ +60℃ |
Control System Parameter:
| Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
| Color temperature | Adjustable by software |
| Brightness level | 256 levels, automatic adjustment by software |
| Control way | Computer, video-synchronous, real-time, off-line, wireless, internet etc. |

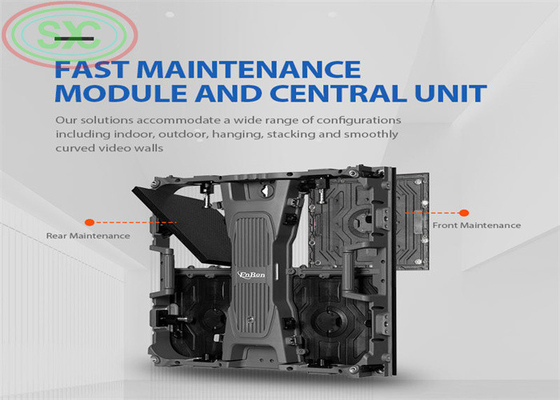

Cabinet photo
Company profile
Shenzhen Shixin Display Technology Co.,Ltd was established in 2009 with300 sqm production area and 300 employees. We have outstanding teams, such as the R&D department, after-sell service, Engineer, sales administration, and Logistics tracking department. Our product mainly includes Indoor/outdoor full-color led display, Car/ Taxi/Van/Bus led screen, poster screen, transparent screen, etc. Thosecan be used on the shopping mall, bank, bus station, train station, center of downtown, airport,school,factory,bus,taxi and so on. We have been exporting our product to all over the world and obtain good reputation due to the high-quality product and excellent service. Our mission is "meeting customer's quality standard, cutting their cost".
Certificate
Packaging and shipping
Packing:
1.wooden case packing for ironed steel cabinet.
2.flight case packing for die casting aluminum cabinet.
Delivery:
Shipping by sea,air or DHL,multiple shipping ways for your choice.
Warranty
1.We guarantee all our display, modules, spare parts for TREE years.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty, we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our productS, you can inform us by E-mail, we will reply you at once when we get it and offer you a good solution to solve the problem.
5.We also could solve problems for you until it recovers well by remote control!
Installation
1.We can assist the training and technical support for the customer in the factory, if the customer require so.
2.We could send our engineer to guide the installation to you. But the relavant cost should be paid by your esteemed company.
3.Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need.
