P10 Full Color Outdoor Sport Led Display With For Football/Basketball Stadium

P10 Full Color Outdoor Sport Led Display With For Football/Basketball Stadium

Brand Name:	SCXK
Model Number:	P10
MOQ:	3 sqm
Price:	negotiation
Payment Terms:	Western Union, MoneyGram, D/P, T/T, L/C
Supply Ability:	5000sqm per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen in China

Certification:

CE/ROHS/FCC/ISO/UL

Pixels:

10mm

Tube Chip Color:

Full Color

Led Type:

SMD 3535

Waterproof:

IP65

Cabinet:

Iron Or Die-casting Aluminum

Frame Frequency:

>=60HZ

Refresh Rate:

>=180HZ

The Optimum:

600w/m2

Packaging Details:

flight case, wooden case, carton, it is up to you.

Highlight:

perimeter led display

led perimeter advertising boards

Product Description

P10 Full Color Outdoor Sport Led Display With High Quality for Football/Basketball Stadium

PH10 Perimeter Led Displays And Perimeter Advertising

The stadium LED screen is ideal for places of with huge crowd. Its high resolution picture and wide viewing angle ensure best quality pictures and videos to every corner of the stadium. Stable body protects the display from any damage, even high speed ball.

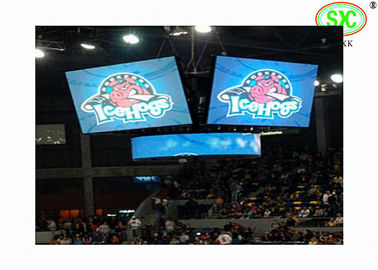

P10 Full Color Outdoor Sport Led Display With For Football/Basketball Stadium 0

♦Stadium LED Display Description

1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed & dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.

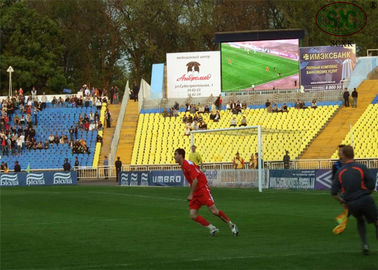

P10 Full Color Outdoor Sport Led Display With For Football/Basketball Stadium 1

♦ Applications of Stadium Led Display

--- Outdoor and indoor advertising, digital billboards, advertising companies.
--- Sports halls, fields, playgrounds, school church.
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car dealerships.
--- Architecture and social projects, information systems in cities.
--- Show-business, concerts, festivals, motor shows and other public events.

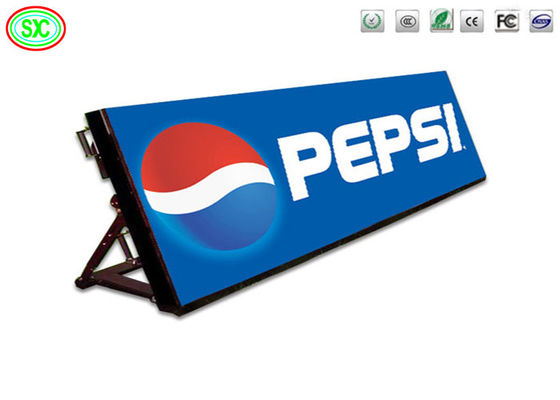

P10 Full Color Outdoor Sport Led Display With For Football/Basketball Stadium 2

♦ Technical Specification

Outdoor SMD P10
Resolution/mm	10
Pixel configuration	1R1G1B
Pixel density/pixels/m²	10000m²
Module resolution	32*16
Module size/mm	320*160
View distance	10-300m
Single point brightness adjust	Can be added
Single point color adjust	Can be added
White balance brightness	>5000cd/㎡
Color temperature	6500K-9500K
Horizontal view angle	120(degrees)
Vertical view angle	60(degrees)
Signal Process bit	10 or 16bit
Driving mode	Constant driving current
Scanning mode	static dring
Frame rate	60Hz
Refresh frequency	3000Hz
Control mode	Computer synchronous
Brightness adjusted range	Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss
Out of control point	<1/10000
Working hours	>72hours
Mean time Between Failure	>500hours
life time	>100000hours
Envirornment temperature range	operating temperature range -20⁰c-50⁰c
Maximun power :/m²	<800w
Average power:/m²	<300w
Self-check technolog	LED spot self-check, communication check, power check, temperature monitor(need customization)
Remote monitoring	Remote supervision and control, record potential fault send out warning signs to the operators(need customization)
Software environment	Windows 1999, Windows
Input power cable	AC110v to220v
Signal input	DVI
Warranty	2years quality warranty, 10 years spare parts support

Dual-backup System

Dual-backup system more reliability and stability which can ensure working correctly during live.

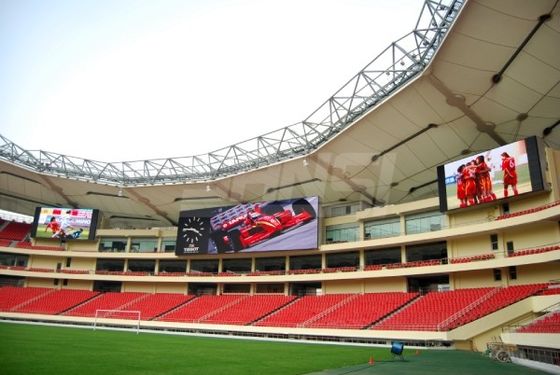

P10 Full Color Outdoor Sport Led Display With For Football/Basketball Stadium 3

♦ Packaging and Shipping

Wooden case or flight case package are available.
Shipping by sea, air or DHL, multiple shipping ways for your choice.

Screen Show

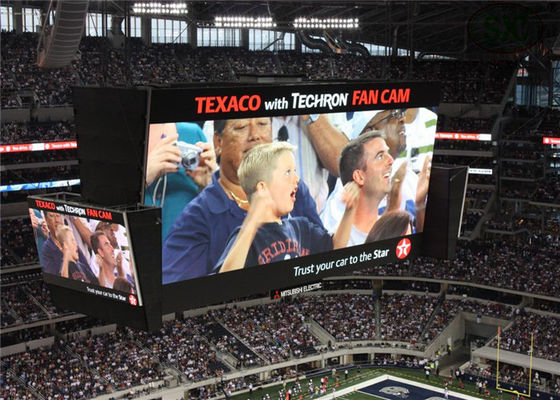

P10 Full Color Outdoor Sport Led Display With For Football/Basketball Stadium 5

Our team will be forever here to offer you full supports !!!
