High Performance HD Single Color LED Display Digital Billboard For Airport

High Performance HD Single Color LED Display Digital Billboard For Airport

    • High Performance HD Single Color LED Display Digital Billboard For Airport
    • High Performance HD Single Color LED Display Digital Billboard For Airport
  • High Performance HD Single Color LED Display Digital Billboard For Airport

    Product Details:

    Place of Origin: China
    Brand Name: SCXK
    Certification: CE/ROHS/FCC/ISO/UL
    Model Number: P10

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiation
    Price: negotiation
    Packaging Details: flight case, wooden case, carton, it is up to you.
    Delivery Time: 7-10 working days after receive your payment
    Payment Terms: T/T or western Union
    Supply Ability: 5000sqm per month
    Contact Now
    Detailed Product Description
    Product Name: The Single Led Display Module Size(W * H): 320mm*160mm
    Standard: CE/ROHS/FCC/ISO2001 Tube Chip Color: Single Color
    Pixel Pitch: 10mm Module Qty: 1pcs
    Type: Free Standing Resolution(W*H): 32dots*16dots

    10mm single color led display with high definition and water-proof cabinet

    Our Advantage service,



    1, We have our own developing and designing team, Which ensure our own technological and innovate products ofr customers.

    2, For any customers who have new idea about some products,just let us know, we can according to your idea provide a unique design of the products.

    3, For any customers who send us the samples of some products, we will design and develop better ones based on the samples.

    4, for every customer,we wll choose the best fit material,and also innovate material for their products.

    5, we can according to any customers' design to do sample for them.

    6, we are manufacturer,factory,so we have the ability of mass production.

    Specifications

    We are the professional manufacturer of outdoor and indoor led display. With more than 8 years experience, our led display enjoy good reputation . The single color P10 led display is very high definition and brightness,its’ very attractive and hot sell.



      1, the red,green,blue, white and yellow color can be choose.

      2, outdoor water-proof and semi-outdoor led display design

      3, The size can be design by customer

      4, The simple frame and water-proof cabinet

      5, 2 years warranty and more than 10 years life use

      6, View angle;H:100 v:50  DC:5V



    The detailed parameter as follows.

    1,  Item Name

      technology parameter( the double color led display)

    2,  pixel tube:

       pixel pitch:10mm;  primary colors: pure red,pure green,pure blue ,

      Pure white  .

       color composing: 1R,1G,1B,1W

       Density 10000dots/sq m;  DIP346

    3 , unit box

      module size:320mm×160mm;  Module resolution:32X16

      cabinet thickness:(cold-roll steel sheet)150mm+(maintain)600mm;

    4, whole screen:

    viewing distance:>15m;working temperature:-20°C~+45°C(-30°C ~+50°C  optional)    relative humidity:≤95%RH;   Drive IC ET6024



    5, operating voltage

    AC220V±10% or 110V±10% ,average consumption:500 W/sq m

      max consumption:≤650 W/ sq m

    6, main parameter

    1. driving mode: 1/4 scan

    2) refreshing rate:≥400Hz/s

    3) frame frequency:≥60Hz/s

    4) gray scale/color:≥16.7Mcolors(Synchronized)

    5) manage gray:≥72bit

    6) brightness:≥2000cd/sq m

    7) color temperature condition:3500K~9500K,be adjustable

    8) adjusting style of brightness: hand movement/auto

    9) video signal: RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc. managing ability of signal:≥12bit.against Y revised curve: owns 3pcs above Y curve that can adjustable.

    10) average trouble-free time:≥5000hours

    11) evenness: between random adjacent pixel ≤0.5mm,module splicing space<1mm

















    1. Applications:

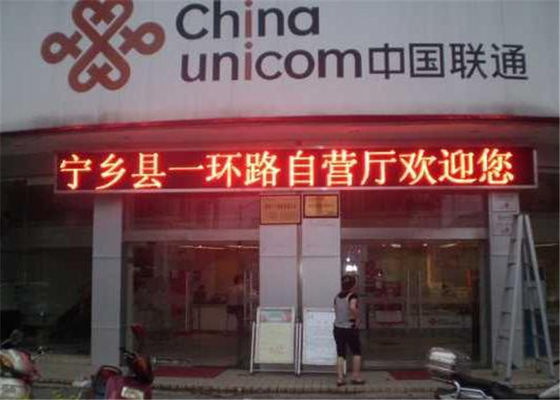

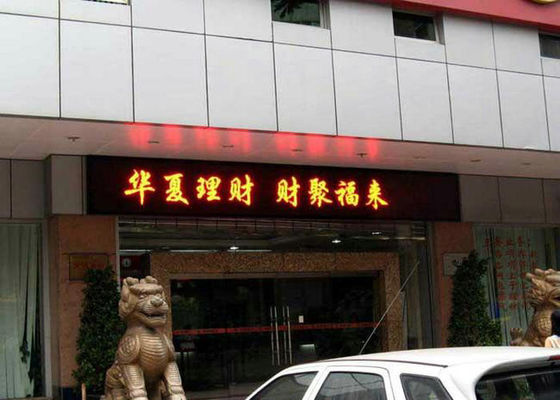

     The single color led display is very popular in LED display advertising field. This type                 digital billboards are widely used  ,store ,stadium,shopping ,airport etc;

     2. Features :

    Vivid and exact words, minimum noise, advanced test equipment, support any PC operation system

    Super brightness single color led display advertising

    1, Superb  brightness  and color uniformity and reproduction.  Brightness  variances  within+/-2.5%

    2, High  reliability:  data  hot  backup  aims  to  avoid  any  communication  risks  during  the  show;  support automatic fault detection

    3, Proprietary image processing produces sharp, brilliant images unmatched by industry competition

     Methods for Quality Assurance

    a. Aging

    1. 100% fully test

    1. Condition: 72 hours with 256 gray level

    b. Vibration Testing

    Condition: 3-5 min up and down in 5mm range

     Factory Equipment

    Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
    Automatic Glue- pouring Machine, Solder Paste Printing Machine,
    Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
    Withstand Voltage Tester, Ground Resistance Tester,
    Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
    Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.





    Competitive Advantage:

    1.  2 years’ warranty with free repair service

    2.  24/7 Hours online Remote Support

    3.  Solution and PCB design

    4.  Free factory training

    5.  On site installation instruction and regular inspection

    6,  Small order accepted.
