Name: SMD P10 Outdoor IP65 Waterproof Full Color LED Display Screen
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: P10
Price: 10000.00 USD
Availability: InStock

Home Products SMD LED Screen

SMD P10 Outdoor IP65 Waterproof Full Color LED Display Screen

Product Details:

Place of Origin:	ShenZhen in China
Brand Name:	SCXK
Certification:	CE/ROHS/FCC/ISO/UL/CB
Model Number:	P10

Payment & Shipping Terms:

Minimum Order Quantity:	No limit
Price:	negotiation
Packaging Details:	flight case, wooden case, carton, it is up to you.
Delivery Time:	7-10 working days after receive your payment
Payment Terms:	Western Union,MoneyGram,D/P,T/T,L/C
Supply Ability:	5000sqm per month

Contact Now

Detailed Product Description

Pixels:	10mm	Tube Chip Color:	Full Color
Led Type:	SMD 3535	Display Function:	Video
Waterproof:	Ip65	Frame Frequency:	>=60HZ
Average NO Failure:	>=1000hours	Transmiiting Distance:	Internet Cable <100m
Viewing Distance:	10-400m	Density:	10000 Piexls
Highlight:	led display smd , outdoor smd led display

SMD P10 Outdoor Waterproof Full Color LED Display Screen Video Advertising

Product Specifications

Pixels	10mm
Tube Chip Color	Full color
Led Type	SMD 3535
Display Function	Video
Waterproof	IP65
Frame Frequency	≥60HZ
Average NO Failure	≥1000hours
Transmitting distance	Internet cable <100m
Viewing distance	10-400m
Density	10000 pixels

Product Features

Classical design with reliable quality and great performance
Seamless connecting technology with screen flatness error <0.1mm
Patented mask eliminates dark spots, improving consistency and viewing angle
High contrast and ideal gray scale for realistic picture presentation
Supports brightness and color correction for the entire screen
Optimized power load and parameter settings for best working conditions

Module Specifications

Color type	Real full color
Module size	320*160mm
Pixel led	SMD3535
Resolution rate	32*16
Driving IC	MBI5024
Working voltage	DC5V
Power	200W
Working temperature	-20°C - +55°C

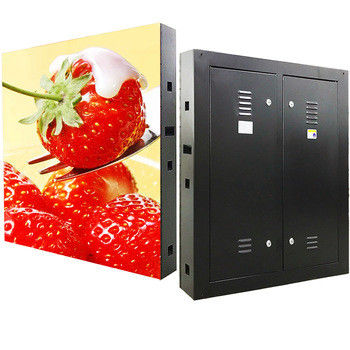

Cabinet Parameters

Cabinet size	960x960mm
Cabinet material	Ironed/Die-casting aluminum
Cabinet weight	32.5kg
Ingress protection	Front/Rear IP65

Screen Specifications

Material	Iron/Die-casting aluminum
Color	Full Color
Size	960*960mm
Resolution rate	32*16
Module quantity	4*6
Density	1000dots/m2
White balance luminance	≥5500cd/m2
Color temperature	6500
Horizontal view angle	110
Vertical view angle	50
Protection grade	Before/after: IP65/IP43
Non-Flatness	1mm
Module interval	1mm
Weight	10-40kg
Maximal power/m2	600W
Frame frequency	≥60Hz/s
Refresh frequency	≥300Hz/s
Gray grade	16777216
Luminance adjusted	256 grade by hand & 8 grade by auto-optic/color
Input signal	RF, S-video, RGB, RGBHV, YUV, YC & Composition, etc
Control system	PCTV non-linear editing card + DVI display card + main controller card + optic fiber transmission (Optional)
MTBF	>5000h
Life-span	>100000h
Speckles rate	<0.0002

Control System Parameters

Video signal (with video processor)	AV, S-video, VGA, DVI, YPbPr, HDMI, SDI, DP
Color temperature	Adjustable by software
Brightness level	256 levels, automatic adjustment by software
Control way	Computer, video-synchronous, real-time, off-line, wireless, internet etc.

Packaging and Shipping

Wooden case or flight case package are available. Shipping by sea, air or DHL, multiple shipping ways for your choice.

Why Choose Us

Continuous Quality

With more than 10 years experience in LED display production, our equipment is regularly updated. Our unique standardized and modular production ensures consistent product quality.

Competitive Price

Our large-scale production capacity and professional technology allow us to maintain competitive pricing while promoting technical innovation to benefit customers.

Fast Delivery

We honor our delivery commitments and implement special procedures like emergency inventory to maintain uninterrupted product supply.

Perfect Service

Pre-sales: We carefully consider your requirements and recommend suitable products. After-sales: We track product usage to continuously improve our offerings.
