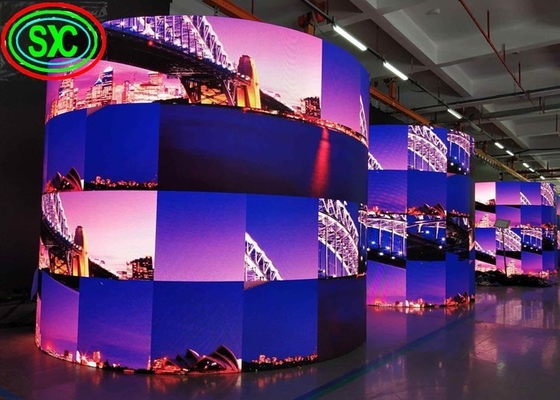

Rolling Advertising led flexible display , Digital curved led screen Video P10 smd 3535

Rolling Advertising led flexible display , Digital curved led screen Video P10 smd 3535

Rolling Advertising led flexible display , Digital curved led screen Video P10 smd 3535
Rolling Advertising led flexible display , Digital curved led screen Video P10 smd 3535
Rolling Advertising led flexible display , Digital curved led screen Video P10 smd 3535
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: p10
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Usage: Indoor And Outdoor Contrast Ratio: 8,000:1
Protection Grade:: IP65 Display Function:: Video
Storage Temperature(Celsius Degree):: -40~+85' Lifetime: 100 000 Hours
High Light:

flexible led stage screens

,

flexible led display

Flexible Rolling Advertising LED Display , Digital Curved LED Video Screen



About Feature



1. High-definition backdrops: Our Company’s backdrops are used in studios around the world, reaching over two billion ers every day. Customers can choose LED or lamp rear-projection video wall modules for their news studio backdrops. For TV shows, Our Company also offers a large variety of creative LED solutions and projectors.

2. Monitoring: Our Company’s solutions perfectly fit broadcast or monitoring rooms. Not only large video walls, but also large format LCD displays and the corresponding controllers and software, make sure the TV streams are sent to the ers in an optimal way. A range of reliable reference monitors for screening and post-production checks the quality of the images at all times.





Advantage :



1 . Wide viewing angle: Viview led display show clear pictures or image without mosaics even when audiences see it from a small viewing angle;
2 . Rich colors: With three basic colors (red, green and blue), 256-level gradation of each color, and form 16777216 kinds of colors;
3 . Adjustable brightness: Viview LED screen brightness can be adjusted automatic and manual according to environment light;
4 . Good color blending: Display clear, exquisite, nature color video even at close distance;
5 . Wide range of display content: Viview led wall can easily to display txt documents, doc documents, pictures and video
6.led display usage range: Governmental plazas, Large-scale entertainment plazas, business and commercial centers, playground, station, airport and so on



Resolution/mm 10mm
Pixel configuration 1R1G1B
Pixel density/pixels/m² 10000/m²
Module resolution 32x16
Module size/mm 320x160
View distance 9-500m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >8000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode (1/8)
Frame rate 60Hz
Refresh frequency >3000Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Maximum power:/㎡ <750W
Average power:/㎡ <250W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast  (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%



Items Indoor Led display:
P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
Outdoor Led display:
P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25
Material steel,aluminum ,die casting aluminum
Payment
terms
30% deposit before production, 70% balance before shipping
T/T
Western Union
Packing: Standard Export Carton with fully Polyfoam or Pearl Wool
Flight case;
Anti-shaking wooden case
Shipping: 5 to 7 working days upon receiving deposit payment
After-Sales-Service: Lifetime with professional engineer support for free.
Within 5 year, supply spare parts for free if has quality problem
( not by man-made damage)
Using Range Shopping mall,bank,bus station, train station,
center of downtown, airport, school, factory, bus, taxi,and so on.



Rolling Advertising led flexible display , Digital curved led screen Video P10 smd 3535 0

Methods for Quality Assurance

a. Aging
1) 100% fully test
2) Condition: 72 hours with 256 grey level

b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range



♦ Production process



1) Incoming Inspection→2)SMD→3)Plug-in

→4) Wave Soldering→5)After Welding→6)Testing

→7) Semi Finished Aging→8)Module Assembly

→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing



♦ Packaging and shipping



Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.



♦ Why choose us



Assured High Quality

With more than 10 years experience in led display producing,equipments are updated regularly. clients cover more than 50 cuntries. As a high-tech enterprise integrated with scientific research, design, production, maintenance, sales and system integration, we have a professional high-quality technical R & D team,rich experienced engineers and professional product development and design engineers,excellent marketing team, pre and after-sales 24 hours service.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.
