P5 Indoor Outdoor Waterproof Full Color LED Display 5mm Pitch 40000dots/㎡ IP65

Brand Name:	SCXK
Model Number:	P5
MOQ:	3 sqm
Price:	negotiation
Payment Terms:	T/T, Western Union
Supply Ability:	5000sqm per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen in China

Certification:

CE/ROHS/FCC/ISO/CB

Pixels:

5mm

Tube Chip Color:

Full Color

Waterproof:

IP65

Pixel Configuration:

1R1G1B

Pixel Density:

40000dots/㎡

Driving Mode:

DC5V

Optimal Viewing Distance:

>=5m

Viewing Angle:

H:160 V:140

Packaging Details:

flight case, wooden case, carton, it is up to you.

Highlight:

indoor led display screen

indoor led billboard

Product Description

High-end Indoor Full Color Big LED Display Screen P5 Hire Led Video Wall for Meeting Room Hospitality

High-end Indoor Full Color Big LED Display Screen P3 Hire Led Video Wall for Meeting Room Hospitality

Product Features:

The first level LED chip from Taiwan Epistar.
With pure golden wire connection in LED.
Grand A row material for module frame and mask.
4 layers PCB and copper plating thickness > 18mil.
Ag alloy solder paster to ensure good soldering on PCB.
Stainless steel screws when assembly.
Disassembly and assembly are quick and easy.
Three years warranty.

Widely used in indoor environments such as halls, TV studios, hotels, theaters, meeting rooms, schools, hospitals, gymnasiums, advertising, bars and restaurants etc., to display text, graphics, pictures and videos.

Technical Specifications:

Items	P5 indoor led display
Pitch size	5mm
Module size	320mm*160mm
Module pixel(dots)	64dots*32dots
Pixel configuration	1Red, 1Green, 1Blue
LED chip	Epistar
Color scale	65536degree/16777216colors
Pixel density	40000pixels/square meter
View angle(H/V)	≥120/120degree
Brightness	≥1200cd/square meter
Brightness adjustment	64 level automatic or manual
View distance	≥5m
Power consumption	350-950W/square meter
Net weight	less than 45kg/square meter
Operating temperature	-25°C~+60°C
Operating humidity	10%--95%RH
Life time	≥100,000hours
Out of control dot	≤1/10,000
Whole Display Flatness	≤1mm Juncture
Exchange frame speed	>150frames per second
Refresh frame frequency	600Hz
Control distance	120m (without repeater), single mode fiber:20km, multi mode fiber: 500m
Power	110V/220V±15% 50Hz
Operating system	Windows98/Me/2000/Xp
Drive mode	constant current driving, 1/8 scan
Display mode	VGA640X480--VGA1600X1024
Protections for outdoor display	IP54
Maintenance way	Rear access
Accepting signal	PAL/NTSC/SECAM, S-Video; VGA; RGB; Composite Video; SDI

Installation Details:

Competitive Advantages:

P5 SMD outdoor full color LED display uniform in brightness and color
Full color P5 LED screen is utilizing full black color LED chips
Indoor full color LED video screens contrast ratio up to 1000:1 to react real color of the content
Utilizing Sum driver IC to reach high refresh frequency and high grey grade
Large viewing angle at 140 degree horizontal and vertical
P4 LED display is of high resolution for indoor rental events that require high quality presentation and its cost is being lower for large size indoor LED screens use

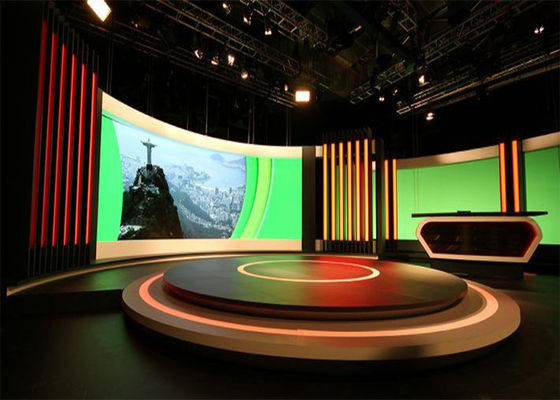

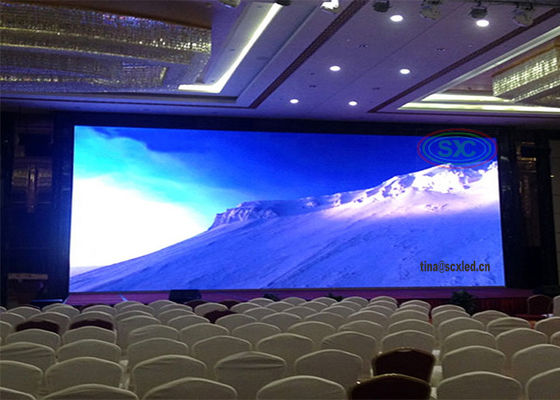

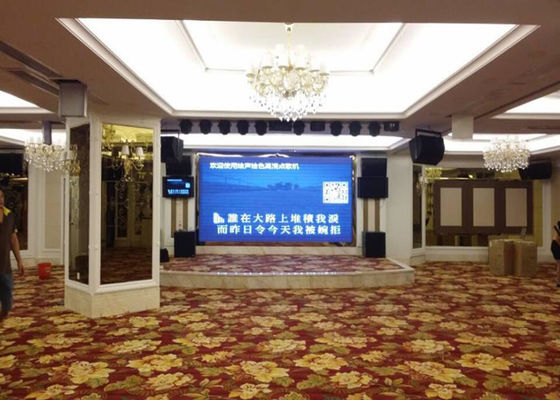

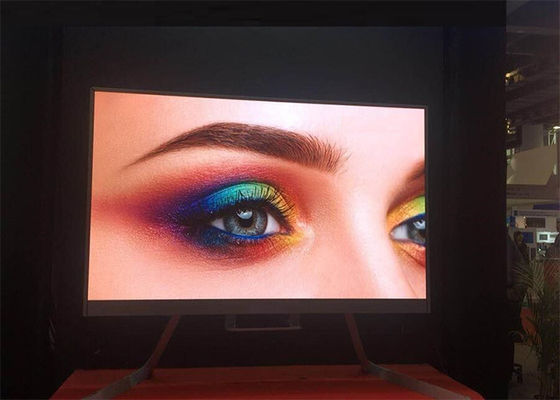

Our Cases:

Frequently Asked Questions:

Q1: What's the warranty of your LED Display Screen?

A1: We have a 3-year warranty for our led display screen, and 100,000 hours life span of the led lamps.

Q2: What about your pre-sale service and post-sale service?

A2: For pre-sale service: We have a professional sales team and 13 years technical team who are willing to answer your question 24/7. We can offer a whole complete solution for your project! For post-sale service: We can instruct you how to use, adjust the screens, and change the broken modules with spare parts. Also, we can send technicians to your country to solve problems. Mostly, our led display will not have big problems within warranty time!

Q3: Whats your payment term? How long it takes to delivery?

A3: We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery. Our average Production time is 16 days, after receiving the deposit.

Q4: What's the control system?

A4: For synchronization control: We use Nova, Linsn Or Colorlight control system. For asynchronous control: We use ONBON or XIXUN control system.

Q5: How can you ensure the led display product quality?

A5: Our led display screen quality is our core competence, for 8 years, what we rely on. We have each standard process to make quality products. If any quality failures within warranty time, we will refund you.

Welcome to visit our website and inquire us more info, waiting for you all the time!
