Indoor Outdoor 5mm Pixel Pitch Full Color LED Display Panel 32x32 Dots

Indoor Outdoor 5mm Pixel Pitch Full Color LED Display Panel 32x32 Dots

Brand Name:	SCXK
Model Number:	P5
MOQ:	2 pcs
Price:	negotiation
Payment Terms:	T/T, Western Union
Supply Ability:	5000sqm per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen in China

Certification:

CE/ROHS/FCC/ISO/CB

Pixel Pitch:

5mm

Tube Chip Color:

Full Color

Led Type:

SMD2121

Display Function:

Video/Text/Image

Cabinet:

Iron Or Aluminum For Options

Driving Mode:

1/8 Scan

Warranty:

3 Years

Voltage:

DC5V

LED Span Lifetime:

100000 H

Module Resolution:

32x32dots

Packaging Details:

flight case, wooden case, carton, it is up to you.

Highlight:

led video screen rental

rental led display screen

Product Description

High Definition Rental Full Color Extra Thin LED Screen Video Wall Display Panels

Product Description

High Definition Rental LED Display / Super Thin LED Screen Video Wall Display Panels

Applications

Outdoor and indoor advertising, digital billboards, advertising companies
Sports halls, fields, playgrounds, schools, churches
Airports, bus stations and railway passenger terminals
Facades of shopping malls, department stores, banks and car dealerships
Architecture and social projects, information systems in cities
Show-business, concerts, festivals, motor shows and other public events

Key Features

Lightweight design for convenient transportation and installation, saving labor costs
Attractive appearance with simple structures
Tool-free assembly and disassembly by one person
User-friendly interface with breakdown indicator lights for easy maintenance
High brightness with preserved gray scale for excellent image quality

Technical Specifications

Module Parameters

Pixel pitch	5mm
Pixel configuration	1R1G1B
LED type	3-in-1 SMD 2727
Module size	320x160mm
LED lamp	KingLight or Nationstar
Module resolution	64x32 dots

Cabinet Parameters

Cabinet size	640x640mm
Cabinet material	Die casting aluminum cabinet
Cabinet weight	9.5kg
Ingress protection	Front/Rear IP65/IP54

Whole Screen Parameters

Pixel density	40000 dots/m²
Brightness	≥1200 cd/m²
Viewing angle	H≥120° V≥120°
Min. viewing distance	5m
Max. power consumption	800W/m²
Avg. power consumption	250 W/m²
Working voltage	110~220VAC±15%
Interface	HUB75
Colors	16.7 million colors
Gray level	65536
Refresh rate	≥1920Hz
MTBF	≥100,000 hours
Lifespan	≥500,000 hours
Protective functions	Over-heat/Over-load/Power-down/Power-leakage/Lightning-protection
Operating temperature	-10℃ ~ +60℃
Storage temperature	-20℃ ~ +60℃

Control System Parameters

Video signal (with video processor)	AV, S-video, VGA, DVI, YPbPr, HDMI, SDI, DP
Color temperature	Adjustable by software
Brightness level	256 levels, automatic adjustment by software
Control way	Computer, video-synchronous, real-time, off-line, wireless, internet

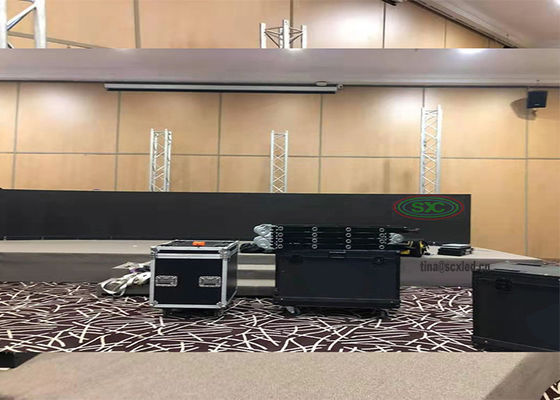

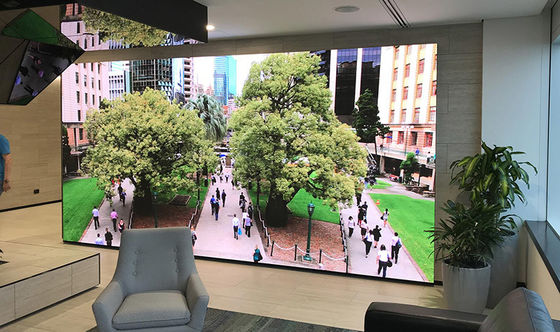

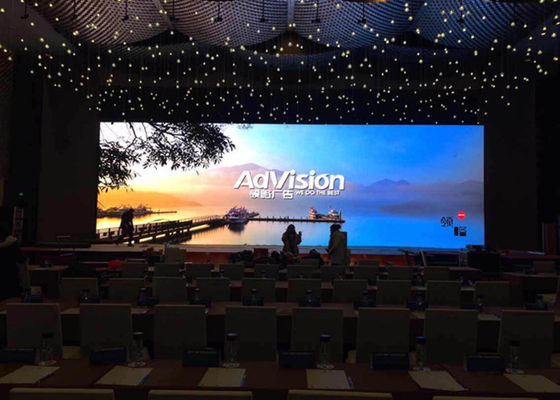

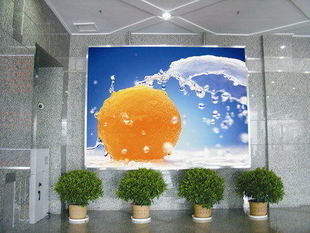

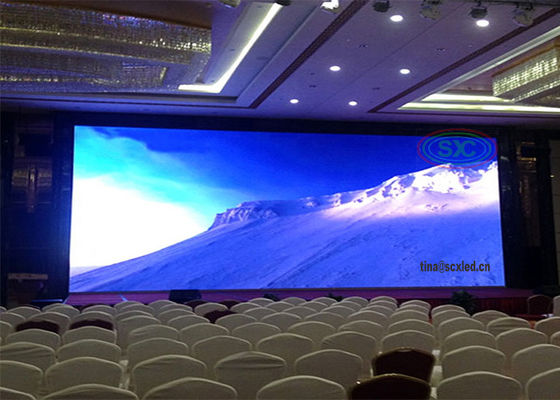

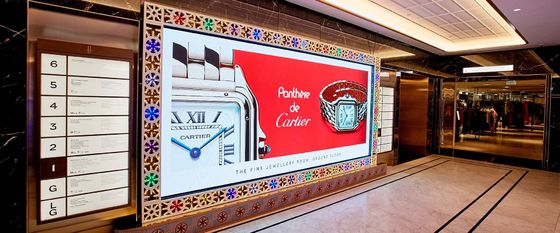

Installation Case

Why Choose Us

Continuous Quality

With more than 10 years experience in LED display manufacturing, our equipment is regularly updated. Our unique standardized and modular production ensures consistent product quality.

Competitive Pricing

Our large-scale production capacity and professional technology allow us to maintain competitive prices while promoting technical innovation to benefit customers.

Fast Delivery

We honor our delivery commitments and implement special procedures like emergency inventory to ensure uninterrupted product supply.

Perfect Service

Pre-sales: We carefully assess your requirements and recommend suitable products. After-sales: We track product usage to continuously improve our offerings.

Company Profile

Shenzhen SCXK Electronic Co., Ltd was established in 2009 with a standard new factory and about 100 employees. We have an outstanding R&D department and dedicated after-sales service team with separate design capabilities. Our product range includes LED indoor/outdoor full color displays, wireless car USD screens, poster screens, and transparent screens for applications in shopping malls, banks, transportation hubs, schools, factories, and vehicles. We employ various marketing methods and provide excellent after-sales service to distribute our products worldwide, always adhering to the principle that professionalism creates quality products at good prices.

Certificate

Packaging and Shipping

Wooden case packing for ironed steel cabinet
Flight case packing for die casting aluminum cabinet
