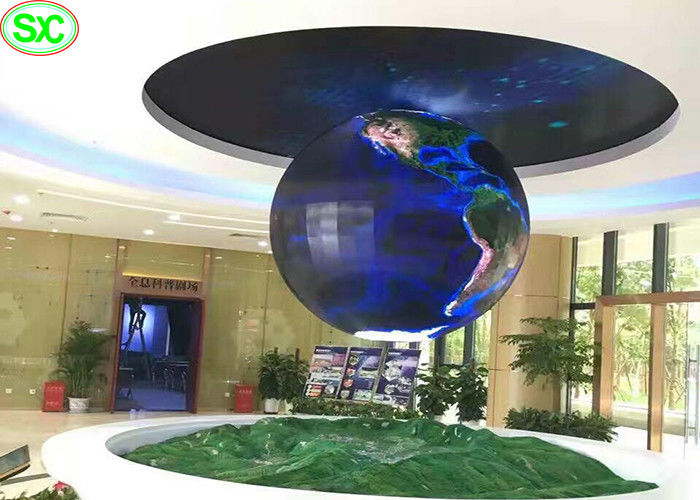

360 degree flexible Sphere advertising digital led display screens ball

360 degree flexible Sphere advertising digital led display screens ball

  • 360 degree flexible Sphere advertising digital led display screens ball
  • 360 degree flexible Sphere advertising digital led display screens ball
360 degree flexible Sphere advertising digital led display screens ball
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: SMD P6
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Product Name: 360 Degree Flexible Sphere Advertising Digital Led Display Screens Ball Level Up Degree:: Pixel≤0.5mm;module<1mm
Color: Full Color Viewing:: 360 ℃
Switch Power Load:: 5V/40A Malfunction Dot Rate: <0.0001
High Light:

sphere led display

,

advertising led display board

                                   360 degree flexible Sphere advertising digital led display screens ball



Our service



1. We can provide customers a comprehensive solution delivery of series-related products

2. We can provide customers high quality products which allow they to scream

3. We can provide custom-made service.

4. We can provide customers one year free warranty, and support renewals extended

5. We can provide customers the free installation guidance and technical support

6. We willing to provide any countries and regions in the world with products and technical support. at present, our product has covered more than 50 countries and regions.



♦ Product specification

indoor  SMD P6
Lamp size 2121
Resolution/mm 6
Pixel configuration RGB  3 in 1
Pixel density/pixels/m² 27778/m²
Module resolution 32x32
Module size/mm 192x192
View distance ≥5m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >1800cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 360(degrees)
Vertical view angle 360(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Scanning mode 1/16
Frame rate 60Hz
Refresh frequency >1200Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡ <1000W
Average power:/㎡ <280W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%



♦ Production process:



1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing



♦ Quick Detail



1. Super lighter and thinner;


2. Easy to connection and uninstall;


3. It can display,words,texts,graphics and videos.

4. High resolution and high frequency dynamic image.



♦ Our advantages

Professional Manufacturer of led display

1. OEM service,No MOQ

2. Easy installation,regular items in Stocks

3. Offering free design drawing as requested.

4. Remote controlling and adjusting are available.

5. Wooden case or flight case,you are the boss.

6. Your reply will be replied within 24 hours.

7. Fast delivery: Usually 6-8 working days

8. Excellent R&D team,factory Price and assure you quality goods.



♦ Packaging and shipping

Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.



♦ Why choose us:

Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.

360 degree flexible Sphere advertising digital led display screens ball 0
