P4.81mm Full Color LED Dance Floor 500x500mm IP65 Waterproof 3-Year Warranty

Name: P4.81mm Full Color LED Dance Floor 500x500mm IP65 Waterproof 3-Year Warranty
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: P4.81
Price: 10000 USD
Availability: InStock

Brand Name:	SCXK
Model Number:	P4.81
MOQ:	2 sqm
Price:	negotiation
Payment Terms:	T/T, Western Union
Supply Ability:	5000sqm per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen in China

Certification:

CE/ROHS/FCC/ISO/CB

Pixels:

4.81mm

Tube Chip Color:

Full Color

Led Type:

SMD 3528

The Optimum Viewing Angel:

H:160°,V:140°

Relative Humidity:

≤90%RH

Module Size:

250mmx250mm

Warranty Time:

3 Years

Chip Brand:

Epistar Led

Scan Mode:

Constant Current 5scan

Cabine Size:

500*1000mm

Packaging Details:

flight case, wooden case, carton, it is up to you.

Highlight:

interactive dance floor

light up dance floor

Product Description

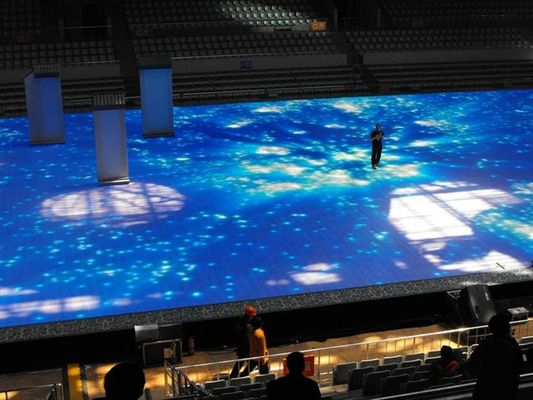

P4.81 Indoor And Outdoor Dance Floor LED Screen Disco Bar Floor Full Color For Wedding

P4.81 Indoor and Outdoor Dance Floor LED Screen Disco Bar Floor LED for Wedding

Description

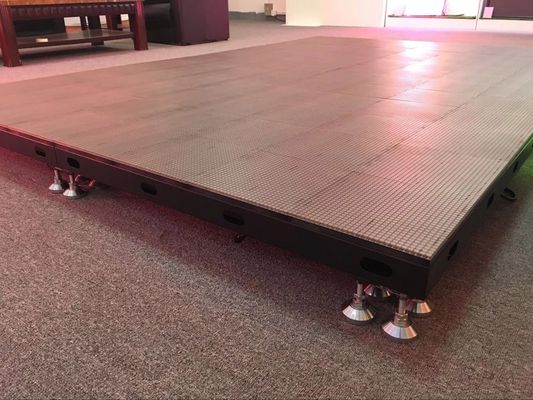

LED video dance floor is a new digital terrestrial solution. Our LED dance floor features a high-strength resin mask with solid aluminum die-casting support, offering big load-bearing capacity and easy connection. Designed for direct foot traffic with high-performance protective structure, panels connect seamlessly and allow for random combinations.

RGB Colorful LED Dance Floor Features

Unlimited programming effects
Special lighting effects
32-bit color (16.7 million color combinations)
Modular & highly portable design
Quick and easy installation
More affordable than existing solutions
Sealed for long, durable lifetime

Product Specification

LED Specifications
Type	SMD
LED Standard	Real Pixel(1R1G1B)
Red Wavelength	625-630nm
Green Wavelength	515-530nm
Blue Wavelength	465-475nm

Module Specifications
Pixel Pitch	4.81mm
Resolution	52x52dots
Module size	250x250mm

Cabinet Specifications

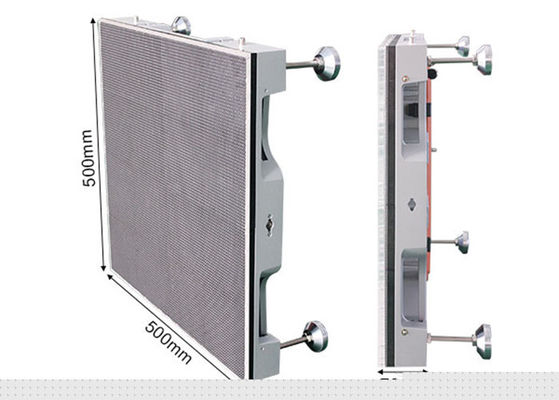

Cabinet Size(W*H)	500x500mm
Cabinet Resolution	104x104dots
Pixel Density	43222dots/㎡
Cabinet Weight	≤6.5kg
Material	Die casting aluminum
Flatness of cabinet	≤0.3mm

Screen Parameters
Color/Brightness Calibration	Yes
Color Temperature(K)	3000-10000
Light Centre Distance Deviation	＜3%
Brightness Uniformity	≥97%
Color Uniformity	Within ±0.003C×,Cy
Contrast Ratio	5000:1
View Angle	Horizontal160°/Vertical140°
Input Voltage	AC100~240V(50-60Hz)
Power Consumption	Max:800w/㎡ Avg:280w/㎡
Driving Method	13 scanning
Protection Level	IP65 waterproof
Grey Scale Levels	R(256) G(256) B(256)
Life Span	100,000 Hrs
Temperature-Operating	-20 -- 55℃
Humidity-Operating	10 - 99%
Features	Anti-slip, anti-collision, big load-bearing capacity
Usage	LED floors, LED wall background
Display function	Txt, picture, video

Production Process

Incoming Inspection
SMD
Plug-in
Wave Soldering
After Welding
Testing
Semi Finished Aging
Module Assembly
Gluing
Finished Aging
Detection Finishing Warehousing

Packaging and Shipping

Wooden case or flight case package are available. Shipping by sea, air or DHL, multiple shipping ways for your choice.

Applications

Stage, Sports, advertising, traffic, events, stadium, shopping center, airport, exhibitions, car shows, fashion shows, concerts, ceremonies, entertainment, etc.

Our Advantages

Professional Manufacturer of LED display
OEM service, No MOQ
Easy installation, regular items in stocks
Offering free design drawing as requested
Remote controlling and adjusting are available
Wooden case or flight case options
Your reply will be replied within 24 hours
Fast delivery: Usually 6-8 working days
Excellent R&D team, factory price and quality assurance

Service

Pre-sale service:

Reply enquiries in 24 hours
Market research and forecast for customer
Provide unique and professional solutions based on customer's requirement
Data sheet and samples offer
Other services, such as special packing design, factory visiting

In-sale service:

Tracking report in producing
Quality test report for every order
Photos and videos as per customer's requirement
Free spare parts

After-sale service:

Lifetime free maintenance and upgrade
Complaint respond period not exceed 24 hours; maintenance guidance in 48 hours
Customer satisfaction tracking report
Free technician training
Full set of documents free of charge
Special service for big projects

Our team will be forever here to offer you full supports!
