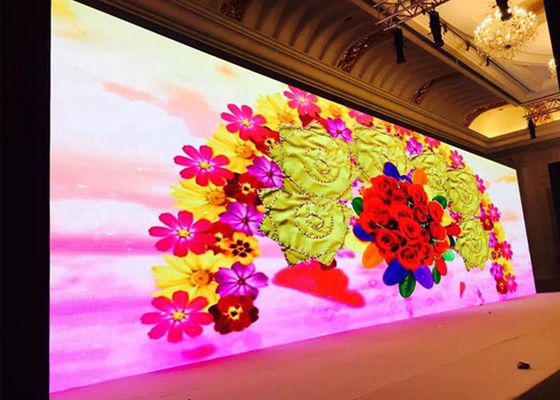

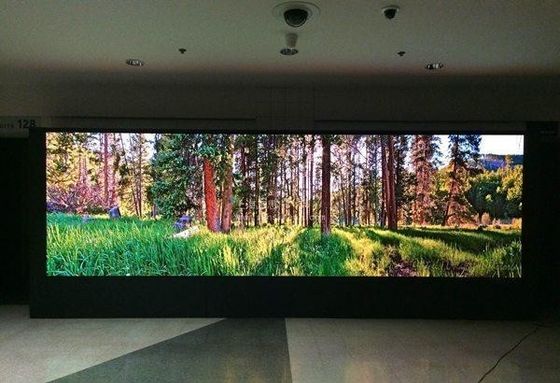

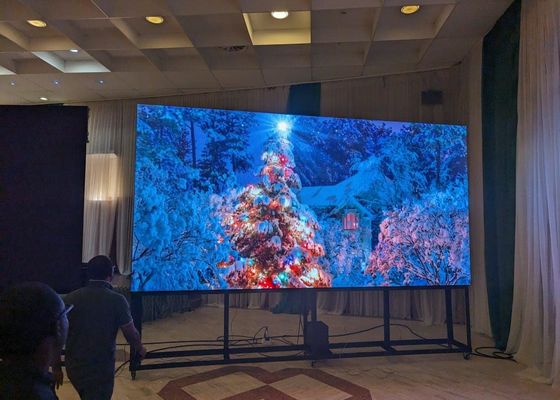

P4 SMD 2121 Indoor Full Color High Pixel LED Video Wall Screen 4mm Pitch

P4 SMD 2121 Indoor Full Color High Pixel LED Video Wall Screen 4mm Pitch

Brand Name: SCXK
Model Number: P4
MOQ: 3 sqm
Price: negotiation
Payment Terms: Western Union, MoneyGram, D/P, T/T
Supply Ability: 5000sqm per month
Detail Information
Product Description
Detail Information
Place of Origin:
ShenZhen in China
Certification:
CE/ROHS/FCC/ISO/UL
Pixels Pitch:
4mm
Tube Chip Color:
Full Color
Led Type:
SMD2121
Cabinet:
Iron Or Aluminum For Options
Refresh Rate:
720HZ
Module Size:
320*160mm
Cabinet Size:
640*640mm/960*960mm
Module Resolution:
64*32/80*40
Viewing Angle:
H:160 V:140
Packaging Details:
flight case, wooden case, carton, it is up to you.
Highlight:

led display smd

,

outdoor smd led display

Product Description
Clear SMD 2121 P4 Indoor LED Video Wall Screen for Events / Advertising
Product Specifications
Pixels pitch 4mm
Tube Chip Color Full color
Led Type SMD2121
Cabinet Iron or Aluminum For Options
Refresh Rate 720HZ
Module size 320*160mm
Cabinet size 640*640mm/960*960mm
Module resolution 64*32/80*40
Viewing angle H:160° V:140°
Product Features
P4 SMD LED Screen
  • LED: Uses well-known international brand LEDs with wide viewing angle, high brightness, minimal attenuation, excellent heat dissipation, and vivid colors.
  • Driving IC: Features premium brands like Taiwan MBI and Japanese Toshiba, eliminating issues like dark bright or virtual light.
  • Power supply: Industrial-strength brand with 20% maximum power reserve, less than 5% voltage fluctuation, and high stability.
  • Connector: Aerial grade brands ensure stable power and signal transmission.
  • PCB Board: 4-layer design for enhanced durability and performance.
  • Easy installation: 100 cabinets can be installed in one hour by one person, with cabinet replacement possible within 50 seconds.
Technical Specifications
Pixel configuration 1R1G1B
Pixel density 62500/m²
Module resolution 64x32
Module size 320x160mm
View distance 4-300m
White balance brightness >1000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120°
Vertical view angle 60°
Refresh frequency >3000Hz
Frame rate 60Hz
Working temperature -20°C to 45°C
Maximum power <750W/㎡
Average power <250W/㎡
Lifetime 100,000 hours
Production Process
  1. Incoming Inspection
  2. SMD
  3. Plug-in
  4. Wave Soldering
  5. After Welding
  6. Testing
  7. Semi Finished Aging
  8. Module Assembly
  9. Gluing
  10. Finished Aging
  11. Detection Finishing Warehousing
Packaging & Shipping
