SMD 2121 HD Led Curtain Video Wall With Meanwell Novastar System , 1000x1000 Cabinet Size

SMD 2121 HD Led Curtain Video Wall With Meanwell Novastar System , 1000x1000 Cabinet Size

    • SMD 2121 HD Led Curtain Video Wall With Meanwell Novastar System , 1000x1000 Cabinet Size
    • SMD 2121 HD Led Curtain Video Wall With Meanwell Novastar System , 1000x1000 Cabinet Size
    • SMD 2121 HD Led Curtain Video Wall With Meanwell Novastar System , 1000x1000 Cabinet Size
  • SMD 2121 HD Led Curtain Video Wall With Meanwell Novastar System , 1000x1000 Cabinet Size

    Product Details:

    Place of Origin: China
    Brand Name: SCXK
    Certification: CE/ROHS/FCC/ISO/UL
    Model Number: SMD P3.91

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiation
    Price: negotiation
    Packaging Details: flight case, wooden case, carton, it is up to you.
    Delivery Time: 7-10 working days after receive your payment
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 5000sqm per month
    Contact Now
    Detailed Product Description
    Item: SCXK-P3.91 Cabinet: Iron Fixed Cabinet
    Cabinet Size: 1000x1000 Led Chip: Epistar
    Led Type: SMD 2121 LED Lamp Color: Black Lamp

    HD p3.91 Indoor Video Full Color LED Display with Meanwell Novastar system



    1. Product feature

    1.color spots or picture shade will be removed through the adjustment of brightness and color by each independent pixel

    2, adopted with self developed steel structure and special kits will be kept in good flatness and smoothness

    3, strict water proof testing by Ip65

    4, according to environmental changes the brightness can be adjusted automatically for energy saving

    5, special PVC kits are adopted to protect from corrosion according to coastal weather

    6, according to environmental changes the brightness can be adjusted automatically for energy saving

    7, auto power on/off, work unattended



    ♦ Product specification

    indoor  SMD P3.91
    Lamp size 2121
    Resolution/mm 3.91
    Pixel configuration RGB  3 in 1
    Pixel density/pixels/m² 65410/m²
    Module resolution 64x64
    Module size/mm 250*250
    View distance ≥0.5m
    Single point brightness adjust Can be added
    Single point color adjust Can be added
    White balance brightness >2500cd/㎡
    Color temperature 6500K-9500K
    Horizontal view angle 120(degrees)
    Vertical view angle 60(degrees)
    Signal Process bit 10 or 14 bit
    Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
    Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
    Driving mode Constant driving current
    Scanning mode 1/16
    Frame rate 60Hz
    Refresh frequency >4200Hz
    Control mode Computer synchronous
    Brightness adjusted range

    Manual, automatic operation, stepless continuous adjusted

    255 steps. No grey loss

    Out of control point <1/10000
    Working hours ≥72hours
    Mean Time Between Failure >5000hours
    Life time 100000hours
    Life-all-white(brightness halving) 50000hours
    Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
    Maximum power:/㎡ <1000W
    Average power:/㎡ <280W
    Self-check technology

    LED spot self-check, communications check, power check,

    temperature monitor(need customization)

    Remote monitoring

    Remote supervision and control, record potential fault,

    send out warning signs to the operators.(need customization)

    Software environment WindowsNT,Windows1999,WindowsXP
    Luminous point width between centres Deviation<3%
    Brightness uniformity <10%
    Color uniformity(chromaticity coordinate) ±0.003
    Power supply request AC85-264V(50Hz-60Hz)
    Contrast (1000:1)
    System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
    Humidity(working) working:10-95%
    Humidity(storing) storing:10-95%



    Product Overviews

    Items Indoor Led display:
    p1.5, P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
    Outdoor Led display:
    P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25
    Material steel,aluminum ,die casting aluminum
    Payment
    terms
    30% deposit before production, 70% balance before shipping
    T/T
    Western Union
    Packing: Standard Export Carton with fully Polyfoam or Pearl Wool
    Flight case;
    Anti-shaking wooden case
    Shipping: 5 to 7 working days upon receiving deposit payment
    After-Sales-Service: Lifetime with professional engineer support for free.
    Within 5 year, supply spare parts for free if has quality problem
    ( not by man-made damage)

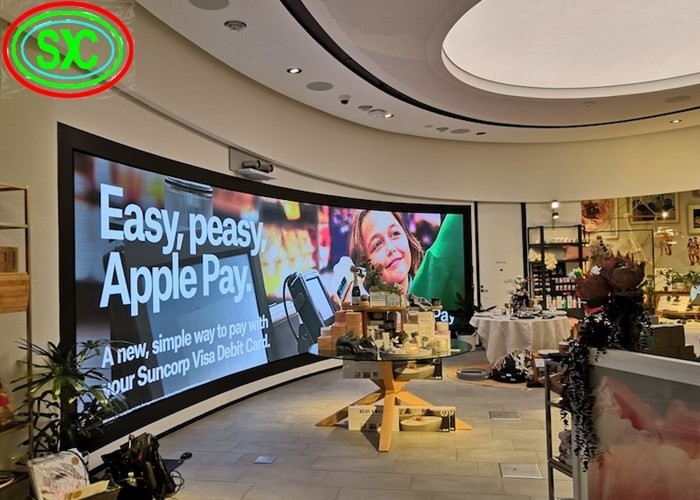

    Using Range Shopping mall,bank,bus station, train station,
    center of downtown, airport, school, factory, bus, taxi,and so on.



    With high quality Meanwell power supply

    SMD 2121 HD Led Curtain Video Wall With Meanwell Novastar System , 1000x1000 Cabinet Size



    Cabinet

    SMD 2121 HD Led Curtain Video Wall With Meanwell Novastar System , 1000x1000 Cabinet Size

    ♦ Production process:

    1) Incoming Inspection→2) SMD→3) Plug-in

    →4) Wave Soldering→5) After Welding→6) Testing

    →7) Semi Finished Aging→8) Module Assembly

    →9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing



    ♦ Our advantages

    Professional Manufacturer of led display

    1. OEM service,No MOQ

    2. Easy installation,regular items in Stocks

    3. Offering free design drawing as requested.

    4. Remote controlling and adjusting are available.

    5. Wooden case or flight case,you are the boss.

    6. Your reply will be replied within 24 hours.

    7. Fast delivery: Usually 6-8 working days

    8. Excellent R&D team,factory Price and assure you quality goods.



    ♦ Packaging and shipping

    Wooden case or flight case package are available.

    Shipping by sea,air or DHL,multiple shipping ways for your choice.



    ♦ Methods for Quality Assurance

    a. Aging
    1) 100% fully test
    2) Condition: 72 hours with 256 grey level

    b. Vibration Testing
    Condition: 3-5 mins up and down in 5mm range
