Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.

|
| Place of Origin: | ShenZhen in China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P3.91 |
| Minimum Order Quantity: | 5 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after receive your payment |
| Payment Terms: | Western Union, MoneyGram, D/P, T/T, L/C |
| Supply Ability: | 5000sqm per month |
| Pixels: | 3.91mm | Tube Chip Color: | Full Color |
|---|---|---|---|
| Display Function: | Video | Frame Frequency: | >=60HZ |
| Transmiiting Distance: | Internet Cable <100m | Refresh Rate: | >=180HZ |
| Maximum Power: | 600m2 | Voltage: | DC5V |
| Dot Density: | 65410 | Driving Mode: | 1/16 Scan |
| Highlight: | rental led display screen,led rental screen |
||
High Definition SMD Large Led Display Screen , Advertising Led Video Display full color p3.91 linsn /nova control
♦ Description:
This kind of product is special for indoor or outdoor column facade, can be cylinder and square shape. 360 degree viewing angle show a perfect viewing experience.
Front service makes it easy to maintain if there is any problem. City development and improvement need this kind screen better.
Especially square LED screen, we can support any pixel pitch according to your project requirement, group control makes it easily.
♦ Product specification
| Indoor SMD P3 | ||||||||||||||
| Lamp size | 2121 | |||||||||||||
| Resolution/mm | 3 | |||||||||||||
| Pixel configuration | RGB 3 in 1 | |||||||||||||
| Pixel density/pixels/m² | 111111/m² | |||||||||||||
| Module resolution | 64x64 | |||||||||||||
| Module size/mm | 192x192mm | |||||||||||||
| View distance | ≥3m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >1000cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 14 bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | 1/32 | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >3000Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
| Maximum power:/㎡ | <900W | |||||||||||||
| Average power:/㎡ | <300W | |||||||||||||
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||
LED Display-Die Cast cabinet
|
Indoor P3 LED Module 192 x 192mm front face
|
Indoor P3 LED Module 192 x 192mm back face
|
Control Card
Receiving-Card  |
Sending-Card |

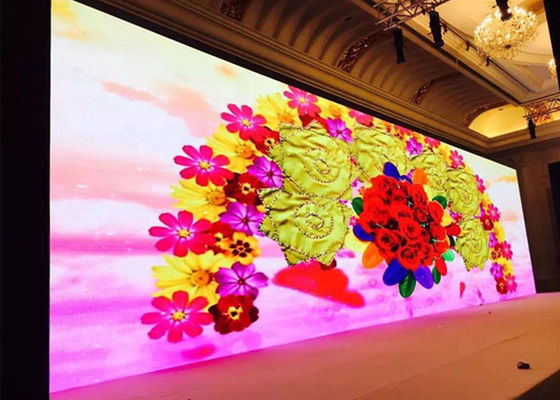

| HD-led-screen-display- mounted -in -the wall |
kingdigitals-indoor -led-display-screen-case-in-Laos |
kingdigitals-indoor-commercial-led-video-screen |
| P3-LED-video-wall-project-indoor-full-color-Republic of Lithuania |
PH2.5-LED Display-wal-screenl-hilton-hawaiian -village |
HD-indoor-color-led-display-for-hotel-in-United Arab Emirates |
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English .
3.OEM&ODM, any your customized screen we can help you to design and put into product.
4.Distributoer ship are offered for your unique design and some our current models .
5.Protection of your sales area, ideas of design and all your private information
Warranty:
We guarantee all our displays, modules, parts for two full years. During this time, we will replace or amend all our goods for free if there is something wrong with them. We provide lifetime maintenance and charge only for the raw materials. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory. We also provide the operation manual, software, test report and so on. Any associated CAD drawing on how to fix up the display and some other expert suggestion will be provided.
Additional service:
We provide you the forwarding information, and some other information ,such as flight box, structure information for your reference for free.
