High Resolution Indoor/Outdoor Led Rental Display Stage Led Wall Panel 500*500mm Led Screen

High Resolution Indoor/Outdoor Led Rental Display Stage Led Wall Panel 500*500mm Led Screen

Brand Name: SCXK
Model Number: P3.91
MOQ: 5 pcs
Price: 524$-828$
Payment Terms: T/T, Western Union
Supply Ability: 5000sqm per month
Detail Information
Place of Origin:
ShenZhen China
Certification:
CE/ROHS/FCC/ISO/CB
Pixels:
3.91mm
Led Type:
SMD2121/1921
Waterproof:
IP43
Cabinet:
Die Casting Aluminum
MBI:
5124
Viewing Angle:
H:160 V:140
Optimal Viewing Distance:
>=4m
Voltage:
DC5V
Module Size:
250*250MM
Cabinet Size:
500*500/1000*500mm
Module Resolution:
64X64(Real)
Packaging Details:
flight case, wooden case, carton, it is up to you.
Highlight:

led video screen rental

,

rental led display screen

Product Description

High Resolution indoor / outdoor led rental display stage led wall panel 500*500mm led screen

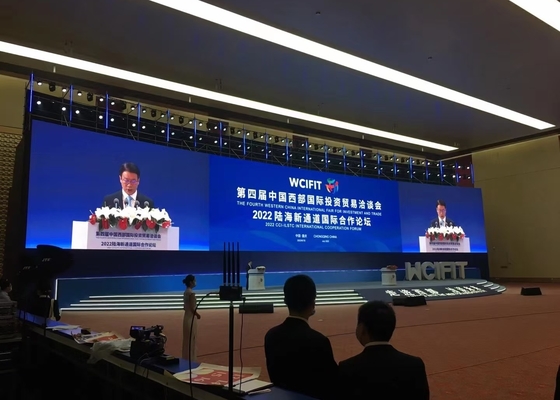

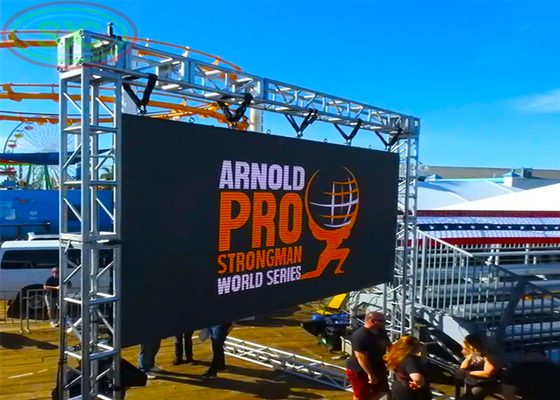

Application: Widely used in stage rental,singing and dancing events, various

conferences, exhibitions, stadiums, theaters, auditoriums, lecture halls, Multi-purpose hall, conference room, interpretation hall, Di Bar, night club, high-end entertainment disco, TV station Spring Festival Evening, auto show, important large cities and municipalities cultural activities, etc.



Seamless display and visual effects

The advanced assembled structure produces seamless display and visual effects, offering you the perfect visual performance you desire from your LED display. The picture quality remains high due to best quality display material.



Silence Operation - Low Power Consumption

The PH3.91 Rental LED Display is known for its silence operation and low power consumption. It is also known for fast heat dissipation which will save more energy. Cut on the electricity expenses and help environment with this highly advanced advertising display.



♦ Product Specification

Indoor SMD 3.91
Lamp size 2121
Resolution/mm 3.91
Pixel configuration RGB 3 in 1
Pixel density/pixels/m² 65410/m²
Module resolution 64x64
Module size/mm 250x250
View distance ≥3m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >2500cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable: 100m, multimembrane: 500m, monofilm: 5km
Driving mode Constant driving current
Scanning mode 1/13
Frame rate 60Hz
Refresh frequency >3000Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡ <1100W
Average power:/㎡ <280W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

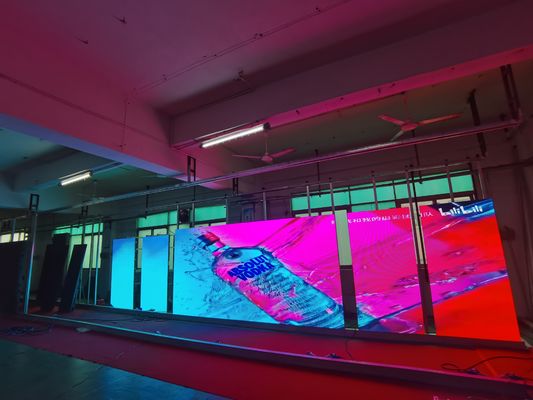

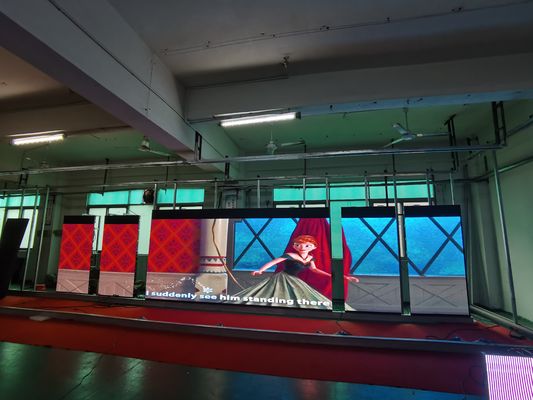

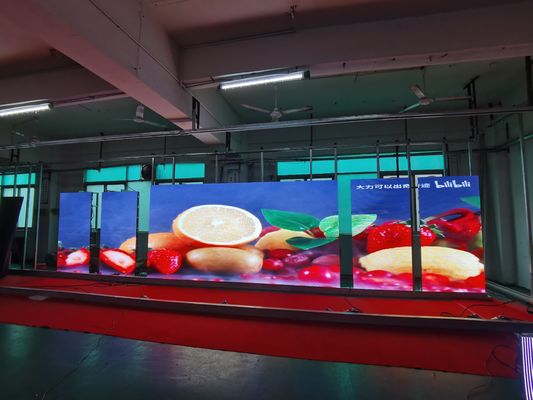

High Resolution Indoor/Outdoor Led Rental Display Stage Led Wall Panel 500*500mm Led Screen 0High Resolution Indoor/Outdoor Led Rental Display Stage Led Wall Panel 500*500mm Led Screen 1







Installation Instructions

High Resolution Indoor/Outdoor Led Rental Display Stage Led Wall Panel 500*500mm Led Screen 2
High Resolution Indoor/Outdoor Led Rental Display Stage Led Wall Panel 500*500mm Led Screen 3
High Resolution Indoor/Outdoor Led Rental Display Stage Led Wall Panel 500*500mm Led Screen 4


High Resolution Indoor/Outdoor Led Rental Display Stage Led Wall Panel 500*500mm Led Screen 5


Production Process:

1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing



♦ Packaging and Shipping

1. Wooden case or flight case package.

2. Shipping by sea, air or DHL, multiple shipping ways.

High Resolution Indoor/Outdoor Led Rental Display Stage Led Wall Panel 500*500mm Led Screen 6



♦ Why Choose us:

Continues Quality

With more than 10 years experience in led display producing, equipments are updated regularly. What’s

more, unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology, our company have built

effective modular production. We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date, we will try our best to fulfill it. Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales: Your purchasing requirements will be highly valued and we’ll recommend suitable products to you.

After-sales: We will track the products usage and then constantly perfect our products.





Our team will be forever here to offer you full supports !!!
