P3 Full Color Indoor Rental LED Display Module 192x192mm 64x64 Pixels

Brand Name:	SCXK
Model Number:	P3
MOQ:	2sqm
Price:	negotiation
Payment Terms:	Western Union,MoneyGram,D/P,T/T,L/C
Supply Ability:	5000sqm per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen in China

Certification:

CE/ROHS/FCC/ISO/UL

Pixels:

3mm

Tube Chip Color:

Full Color

Display Function:

Video

Cabinet:

Die-casting Aluminum

Frame Frequency:

>=60HZ

Average NO Failure:

>=1000hours

Transmiiting Distance:

Internet Cable <100m

Refresh Rate:

>=180HZ

Maximum Power:

600m2

Viewing Angle:

Optimal Viewing Distance:

>=4m

Packaging Details:

flight case, wooden case, carton, it is up to you.

Highlight:

rental led display screen

led rental screen

Product Description

Full Color P3 High Resolution SMD Indoor Rental LED Display Module 192mm X 192mm

Full Color P3 High Resolution SMD Indoor Rental LED Display module 192mm x 96mm 64*64 pixel

Product Specification

Indoor SMD P3
Lamp size	2121
Resolution/mm	3
Pixel configuration	RGB 3 in 1
Pixel density/pixels/m²	111111/m²
Module resolution	64x64
Module size/mm	192x192mm
View distance	≥3m
Single point brightness adjust	Can be added
Single point color adjust	Can be added
White balance brightness	>1000cd/㎡
Color temperature	6500K-9500K
Horizontal view angle	120(degrees)
Vertical view angle	60(degrees)
Signal Process bit	10 or 14 bit
Grey process	1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances	Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode	Constant driving current
Scanning mode	1/32
Frame rate	60Hz
Refresh frequency	>3000Hz
Control mode	Computer synchronous
Brightness adjusted range	Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss
Out of control point	<1/10000
Working hours	≥72hours
Mean Time Between Failure	>5000hours
Life time	100000hours
Life-all-white(brightness halving)	50000hours
Environment temperature range	Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡	<600W
Average power:/㎡	<180W
Self-check technology	LED spot self-check, communications check, power check, temperature monitor(need customization)
Remote monitoring	Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization)
Software environment	WindowsNT, Windows1999, WindowsXP
Luminous point width between centres	Deviation<3%
Brightness uniformity	<10%
Color uniformity(chromaticity coordinate)	±0.003
Power supply request	AC85-264V(50Hz-60Hz)
Contrast	(1000:1)
System protection	Moistureproof, dustproof, high temperature protection, anti-corrosion, anti-burning, anti-static, anti-vibration
Humidity(working)	working: 10-95%
Humidity(storing)	storing: 10-95%

Advantages

Natural Heat Dissipation (no cooling system needed)
Stunning Visual Experience
High recall rate and attracting customers

Components

Receiving-Card

Sending-Card

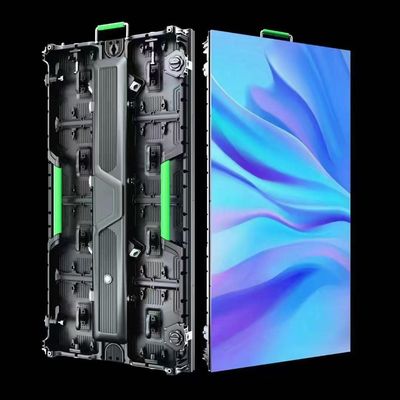

LED Video Screen Cabinet

Packaging and Shipping

Wooden case or flight case package are available.
Shipping by sea, air or DHL, multiple shipping ways for your choice.

Why Choose Us

Continues Quality

With more than 10 years experience in LED display producing, equipments are updated regularly. What's more, unique standardized and module production ensure our products continuous quality.

Competitive Price

With large scale production capacity and professional production technology, our company have built effective modular production. We always stick to promote the technical innovation and reduce cost to benefit customers.

Fast Delivery

Once we promise the delivery date, we will try our best to fulfill it. Special procedures such as emergency inventory will be used to maintain your uninterrupted supply of the products.

Perfect Service

Pre-sales: Your purchasing requirements will be highly valued and we'll recommend suitable products to you.
After-sales: We will track the products usage and then constantly perfect our products.

FAQ

How to protect power supply?

Electrical peaks can put more force on the electrical components which will decrease life time. It is wise to install a protection (voltage stabilizer) that can control the peaks.

What is the life time for a LED screen?

The life time for the LED screen is basically over 100,000 hours, but it depends how the client is taking care of his LED screen and how it is used. When a LED Screens' life time gets to 100,000 hours, it means that the brightness of the LED lamps of the LED screen is about 50% off as compared to the original brightness depending on several factors that will enlarge a LED screen's life time or reach 100,000 hours.

How about the quality guarantee of your products?

We have manufacturing indoor advertising small LED display screen for many years and can claim to produce a high quality that no competitor has yet succeeded in producing at the price quoted. The price we quoted leaves us with only the smallest of margins. They are in fact lower than those of our competitors for goods of similar quality.
