| Place of Origin: | ShenZhen in China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P5 |
| Minimum Order Quantity: | 2 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after receive your payment |
| Payment Terms: | Western Union, MoneyGram, D/P, T/T, L/C |
| Supply Ability: | 5000sqm per month |
| Pixels: | 5mm | Tube Chip Color: | Full Color |
|---|---|---|---|
| Led Type: | SMD 2727 | Display Function: | Video |
| Waterproof: | Ip65 | Cabinet: | Steel Or Aluminum For Options |
| The Optimum: | 600w/m2 | Module: | 320*160mm |
| Cabinet Size: | 960*960mm | ||
| High Light: | truck mounted led screen,digital led sign |
||

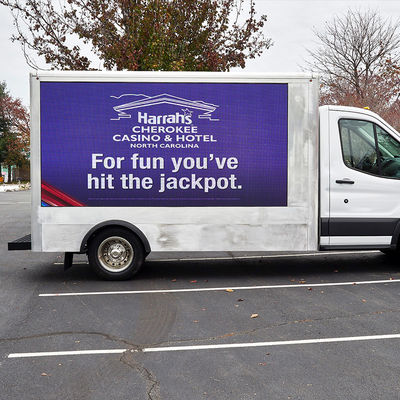

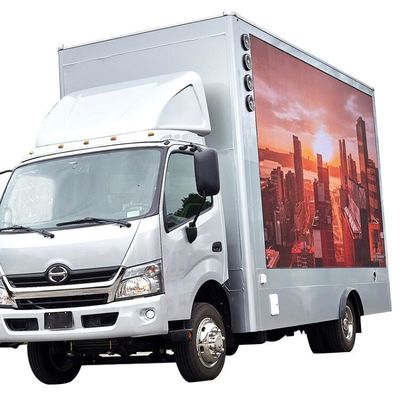

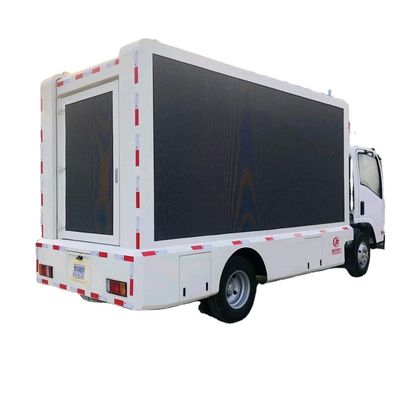

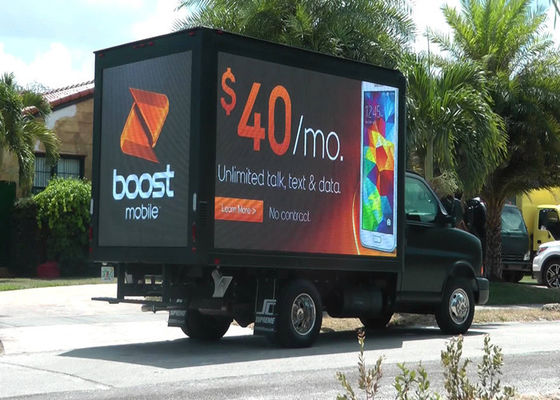

Full Color SMD 2727 Outdoor P5 Digital Mobile Truck Led Display Billboard Easy To Carry
♦ Applications of our products
--- Outdoor and indoor advertising, digital billboards, advertising companies
--- Sports halls, fields, playgrounds,school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car dealerships.
--- Architecture and social projects, information systems in cities.
--- Show-business, concerts, festivals, motor shows and other public events.
♦ P5 Mobile truck led display description
1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed & dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.
♦ P5 Mobile truck led display technical parameters
|
|
P6
|
P8
|
P10
|
P16
|
|
Pixel Pitch
|
3mm
|
4mm
|
5mm
|
6mm
|
|
Module Size
|
192mmx192mm
|
256mmx128mm
|
320mmx160mm
|
384mmx192mm
|
|
Module Resolution
|
32x32dots
|
32x16dots
|
16x16dots
|
|
|
Pixel Density
|
27,777 dots/sqm
|
15,625 dots/sqm
|
10,000 dots/sqm
|
3,906 dots/sqm
|
|
Minimum Viewing Distance
|
6m
|
8m
|
10m
|
16m
|
|
Brightness
|
6,500nits
|
6,500nits
|
7,000nits
|
6,000nits
|
|
Grey Scale
|
16384 level
|
|||
|
Color Number
|
68.7194billion
|
|||
|
Display Mode
|
Synchronous with video source
|
|||
|
Refresh Rate
|
≥1920Hz
|
|||
|
Driver IC
|
MBI5124/MBI5020
|
|||
|
Drive Mode
|
1/8 scanning, constant current
|
1/4 scanning, constant current
|
Static drive,constant current
|
|
|
Viewing Angle
|
Vertical 140° Horizontal 120°
|
|||
|
Temperature Range
|
-20℃ to +60℃
|
|||
|
Ambient Humidity
|
10%-99%
|
|||
|
Service access
|
Rear
|
|||
|
Power Consumption
|
Max: 905 w/sqm; Average : 300w/sqm
|
Max: 1020w/sqm; Average : 320w/sqm
|
Max: 650 w/sqm; Average : 220w/sqm
|
Max: 450 w/sqm; Average : 160w/sqm
|
|
Protection Level
|
Front: IP65
|
|||
|
Lifetime to 50% brightness
|
75,000hr
|
|||
|
LED Failure Rate
|
<0,00001(Led display line standard <0,0001)
|
|||
|
MTBF
|
> 100.000 hours
|
|||
|
Input power cable
|
AC110V / 220V
|
|||
|
Certification
|
CCC,ROHS,CE
|
|||
|
Warranty
|
2 ~5 Years quality warranty
|
|||
Our advantages
Our Service
1) Reply your inquiry in 24 working hours.
2) Experienced staffs answer all your query in fluent English
3) Customized design is available,OEM & ODM are welcomed.
4) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5) Special discount and protection of sales area provided to our distributor.
6) Warmly welcome your visit in our company if available.
7) Warranty: 2~5 years warranty
Packaging & Shipping
Packaging: Wooden & Flight case is available
Shipping: Air, Sea, Express delivery for option
