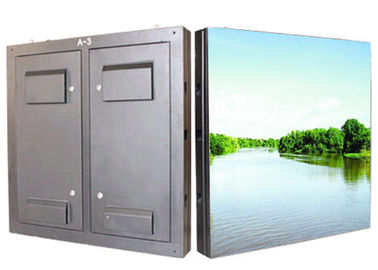

Waterproof P6mm Outdoor Full Color LED Advertising Display SMD 1/8 Scan

Waterproof P6mm Outdoor Full Color LED Advertising Display SMD 1/8 Scan

Waterproof P6mm Outdoor Full Color LED Advertising Display SMD 1/8 Scan

Brand Name: SCXK
Model Number: P6
MOQ: 3 sqm
Price: negotiation
Payment Terms: Western Union,MoneyGram,D/P,T/T
Supply Ability: 5000 sqm per month
Detail Information
Product Description
Detail Information
Place of Origin:
ShenZhen in China
Certification:
CE/ROHS/FCC/ISO/UL
Pixels:
6mm
Tube Chip Color:
Full Color
Cabinet:
Iron Or Aluminum For Options
Pixel Configuration:
1R1G1B
Warranty:
3 Years
Pixel Density:
27778
Packaging Details:
flight case, wooden case, carton, it is up to you.
Highlight:

led screen module

,

rgb led display module

Product Description
SMD P6mm Commercial LED Advertising Billboards 1/8 Scan Full Color LED Panel Screen
Product Specifications
Attribute Value
Pixels 6mm
Tube Chip Color Full color
Cabinet Iron or Aluminum For Options
Pixel Configuration 1R1G1B
Warranty 3 years
Pixel Density 27778
Product Overview

The SMD P6mm Commercial LED Advertising Billboard features a 1/8 scan full color LED panel screen designed for outdoor advertising and stage displays.

Key Features
  • High refreshing rate (3840-4000Hz) for excellent color balance
  • Specially designed for fast cabinet connection with slim profile
  • Wide viewing angle of 150°
  • Consistent mask quality
  • Comprehensive lifetime service support
Product Advantages
  • High brightness and refresh rate for durability
  • Die-cast aluminum cabinets
  • Super slim and lightweight design
  • Easy maintenance and fast installation
  • Low power consumption with long lifespan
Technical Specifications
Module Specifications
Model Number P6
Module Size 192mm × 192mm
Pixel Pitch 6mm
Pixel Configuration 1R1G1B
LED Package Mode SMD3532/2727
Max Power 22W
Scan Mode 1/8 scan
Brightness ≥5000cd/sqm
Cabinet Specifications
Power Supply 5V/60A × 1pcs
Best Viewing Distance 4M-200M
Viewing Angle 160°(W) × 120°(H)
Operating Temperature -20℃ to +50℃
Quality Assurance
  • Rigorous quality control with 24+ hours aging test
  • Malfunction dot rate less than 0.0001
  • MTBF exceeding 10,000 hours
  • High brightness with long lifespan
Manufacturing Advantages
  • Direct factory pricing with no middlemen
  • Advanced automated production equipment
  • Taiwanese auto-encapsulate machines for consistent quality
After-Sales Service
  • Lifetime free maintenance and upgrades
  • 24-hour complaint response time
  • 48-hour problem resolution guarantee
Packaging & Shipping

Packaging options include wooden cases or flight cases. Shipping available by air, sea, train, or DHL.

Waterproof P6mm Outdoor Full Color LED Advertising Display SMD 1/8 Scan 0 Waterproof P6mm Outdoor Full Color LED Advertising Display SMD 1/8 Scan 1
