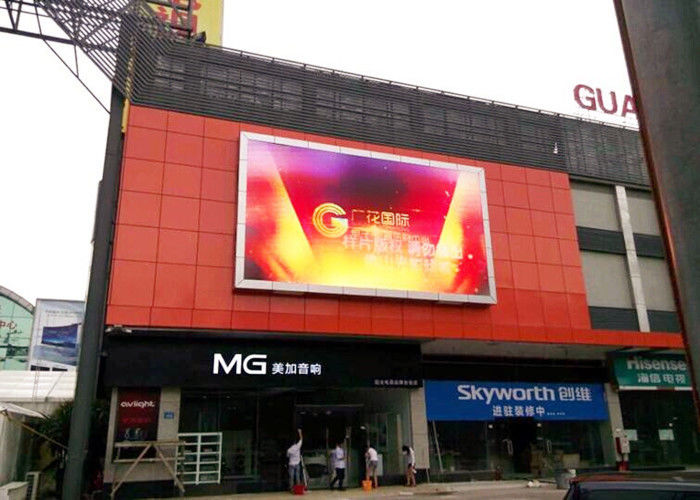

P10 Outdoor Waterproof Full Color LED Billboard 10mm Pixel 960x960mm Cabinet

P10 Outdoor Waterproof Full Color LED Billboard 10mm Pixel 960x960mm Cabinet

Brand Name:	SCXK
Model Number:	P10
MOQ:	5 sqm
Price:	negotiation
Payment Terms:	Western Union, MoneyGram, D/P, T/T, L/C
Supply Ability:	5000sqm per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen in China

Certification:

CE/ROHS/FCC/ISO/UL

Pixels:

10mm

Tube Chip Color:

Full Color

Cabinet:

Iron Or Aluminum For Options

Module Size:

320*160mm/

Pixel Configuration:

1R1G1B

Cabinet Size:

960*960mm

Warranty:

3 Years

Voltage:

DC5V

Driving Mode:

1/4 Scan

Packaging Details:

flight case, wooden case, carton, it is up to you.

Highlight:

led screen module

rgb led display module

Product Description

P10 Outdoor High Brightness LED Digital Advertising Video Wall Billboards

LED Billboards Quick Details

High brightness
Big viewing angle
Good white balance
Long aging time

LED Billboards Description

P10 1R1G1B LED display with 10,000 dots/m² guarantees vivid and clear image quality
Cabinets with protection grade IP65 front and IP54 rear, suitable for all outdoor environments
Fast locks at four sides of cabinet for easy assembly, stacking, and hoisting
Backside maintenance with exterior exposed module screws for easy dismantling
Waterproof connectors ensure safe and steady operation

Technical Parameters

Parameter	Specification
Lamp size	3535
Resolution/mm	10
Pixel configuration	RGB 3 in 1
Pixel density/pixels/m²	10000/m²
Module resolution	32x16
Module size/mm	320x160
View distance	≥10m
Single point brightness adjust	Can be added
Single point color adjust	Can be added
White balance brightness	>5000cd/㎡
Color temperature	6500K-9500K
Horizontal view angle	120°
Vertical view angle	60°
Signal Process bit	10 or 14 bit
Grey process	1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances	Internet cable: 100m, multimembrane:500m, monofilm: 5km
Driving mode	Constant driving current
Scanning mode	Constant driving static
Frame rate	60Hz
Refresh frequency	>3000Hz
Control mode	Computer synchronous
Brightness adjusted range	Manual, automatic operation, stepless continuous adjusted (255 steps, no grey loss)
Out of control point	<1/10000
Working hours	≥72hours
Mean Time Between Failure	>5000hours
Life time	100000hours
Life-all-white (brightness halving)	50000hours

Control System

LED Billboards Applications

Outdoor and indoor advertising, digital billboards, advertising companies
Sports halls, fields, playgrounds, schools, churches
Airports, bus stations and railway passenger terminals
Facades of shopping malls, department stores, banks and car dealerships
Architecture and social projects, information systems in cities
Show-business, concerts, festivals, motor shows and other public events

Our Service

Guidance service: Online support for installation and usage. For large projects, we provide one week free training or on-site guidance (customer bears relevant costs)
Warranty period: 2 years after shipment
Maintenance principles: Timely response and problem resolution
Maintenance terms: Free maintenance during warranty period. After warranty, only material costs apply

Packing & Shipping
