Epistar Outdoor Waterproof P10 960*960mm Large Screen Size Led Billboards Screen

Epistar Outdoor Waterproof P10 960*960mm Large Screen Size Led Billboards Screen

Brand Name: SCXK
Model Number: P10
MOQ: 6 sqm
Price: negotiation
Payment Terms: Western Union, MoneyGram, D/P, T/T, L/C
Supply Ability: 5000 sqm per month
Detail Information
Place of Origin:
ShenZhen in China
Certification:
CE/ROHS/FCC/ISO/UL
Pixel Pitch:
10mm
Tube Chip Color:
Full Color
Led Type:
SMD 3535
Waterproof:
IP65
Cabinet:
Iron/die Casting Aluminum
Viewing Angle:
H:110 V:50
Voltage:
DC5V
Brightness:
More Than 5000cd/㎡
LED Parameter:
R:625-630nm
Module:
320*160mm
Cabinet:
960*960mm/640*640mm
Packaging Details:
flight case, wooden case, carton, it is up to you.
Highlight:

outdoor advertising led display

,

advertising led billboard

Product Description

Epistar Outdoot P10 960*960mm Large Screen Size Digital Advertising Led Billboards Screen





♦ Product Description



1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed & dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.



♦ Applications

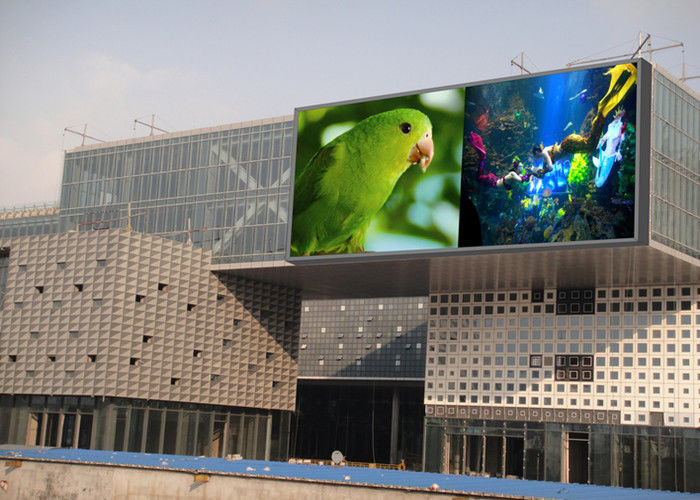

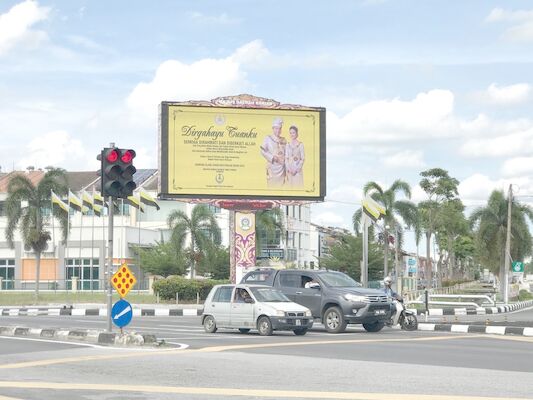

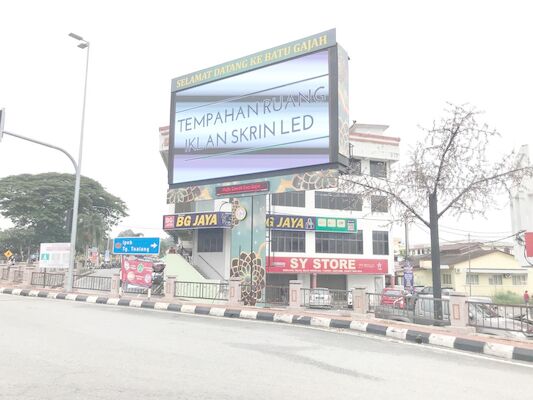

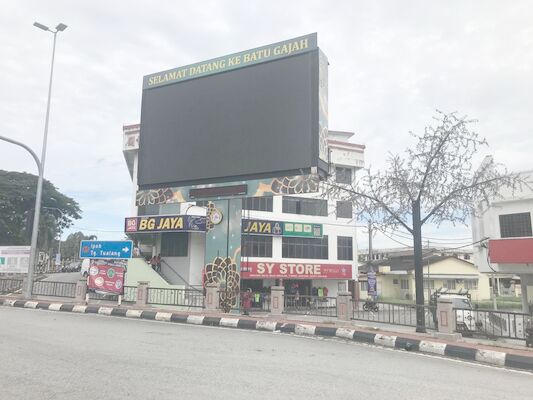

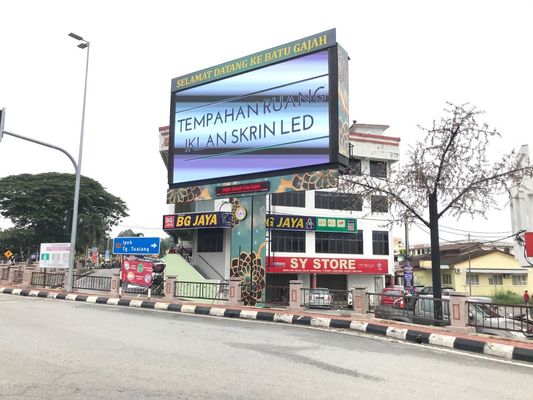

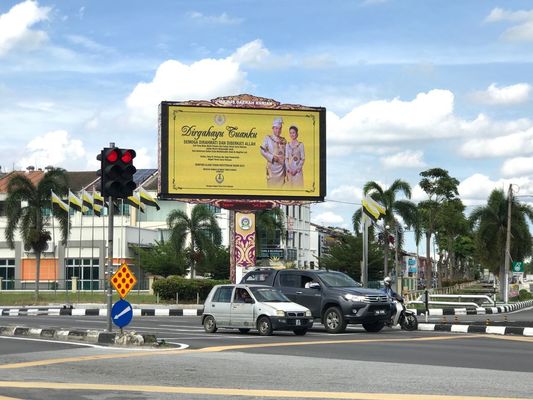

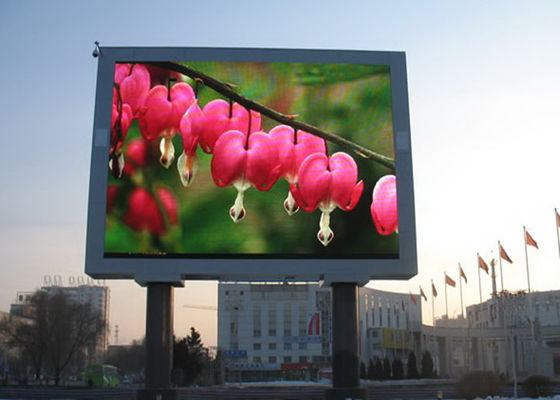

--- Outdoor and indoor advertising, digital billboards, advertising companies
--- Sports halls, fields, playgrounds, school church.
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car dealerships.
--- Architecture and social projects, information systems in cities.
--- Show-business, concerts, festivals, motor shows and other public events.



♦ Technical Specification



Outdoor SMD P10
Resolution/mm 10
Pixel configuration 1R1G1B
Pixel density/pixels/m² 10000/m²
Module resolution 16x16
Module size/mm 160x160
View distance 4-250m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >8000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable: 100m, multimembrane: 500m, monofilm: 2km
Driving mode Constant driving current
Scanning mode (1/4)
Frame rate 60Hz
Refresh frequency >3000Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Maximum power:/㎡ <950W
Average power:/㎡ <350W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT, Windows1999, WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof, dustproof, high temperature protection, anti-corrosion, anti-burning, anti-static, anti-vibration
Humidity(working) working: 10-95%
Humidity(storing) storing: 10-95%



Epistar Outdoor Waterproof P10 960*960mm Large Screen Size Led Billboards Screen 0



♦ Production Process:



1) Incoming Inspection→2)SMD→3)Plug-in

→4) Wave Soldering→5)After Welding→6)Testing

→7) Semi Finished Aging→8)Module Assembly

→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing



♦ Packaging and Shipping



Wooden case or flight case package are available.

Shipping by sea, air or DHL, multiple shipping ways for your choice.
