Outdoor Full Color P10 LED Display 10mm Pixel Pitch Full Color 600W Power

Outdoor Full Color P10 LED Display 10mm Pixel Pitch Full Color 600W Power

Brand Name: SCXK
Model Number: P10
MOQ: 3 sqm
Price: negotiation
Payment Terms: T/T, Western Union, L/C, MoneyGram
Supply Ability: 5000sqm per month
Detail Information
Place of Origin:
ShenZhen in China
Certification:
CE/ROHS/FCC/ISO/CB
Pixel Pitch:
10mm
Tube Chip Color:
Full Color
Display Function:
Video/Text/Image
Cabinet:
Iron Or Aluminum For Options
Frame Frequency:
>=60HZ
Average NO Failure:
>=1000hours
Transmiiting Distance:
Internet Cable <100m
Refresh Rate:
>=1920HZ
Maximum Power:
600m2
Viewing Angle:
H:160 V:140
Optimal Viewing Distance:
>=10m
Packaging Details:
flight case, wooden case, carton, it is up to you.
Highlight:

led video screen rental

,

rental led display screen

Product Description
Big Led Display Screen Outdoor Full Color Novastar Control Advertising Led Billboard
High Quality Big 4x5m Led Display Screen Novastar Wifi USB Control Advertising Led Billboard
PH10 DIP Outdoor Advertising LED Display

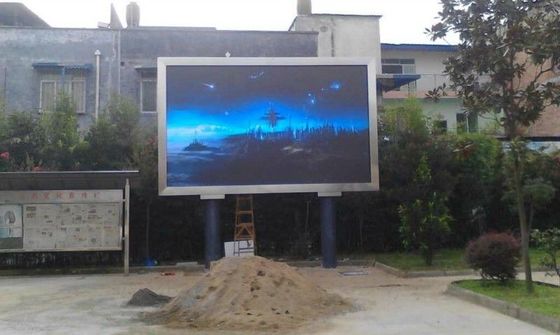

The high resolution LED screen delivers exceptional quality pictures and videos to broad audiences. Ideal for outdoor advertising applications including banks, stages, promotions, exhibitions, highways, stations, stadiums and other outdoor venues.

Outdoor Full Color P10 LED Display 10mm Pixel Pitch Full Color 600W Power 0
High Brightness, High Reliability

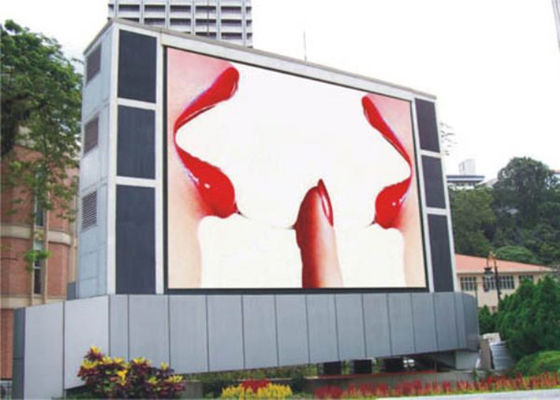

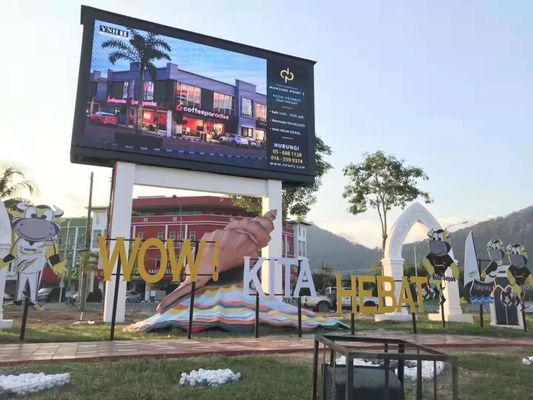

Designed for outdoor installations, the PH10 LED Display features high brightness and high definition output, ensuring excellent visibility even in direct sunlight. Perfect for stages, banks, highways, promotions, stations, stadiums and other outdoor applications.

Outdoor Full Color P10 LED Display 10mm Pixel Pitch Full Color 600W Power 1
Product Specification
Specification Outdoor P10
Lamp size 3535
Resolution/mm 10
Pixel configuration RGB 3 in 1
Pixel density/pixels/m² 10000/m²
Module resolution 32x16
Module size/mm 320x160
View distance ≥10m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >5000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Scanning mode constant driving static
Frame rate 60Hz
Refresh frequency >3000Hz
Control mode Computer synchronous
Brightness adjusted range Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss
Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -10-55℃
Maximum power: /㎡ <600W
Average power: /㎡ <200W
Self-check technology LED spot self-check, communications check, power check, temperature monitor(need customization)
Outdoor Full Color P10 LED Display 10mm Pixel Pitch Full Color 600W Power 2
Our Advantages

Professional Manufacturer of LED Display

  • OEM service, No MOQ
  • Easy installation, regular items in Stocks
  • Offering free design drawing as requested
  • Remote controlling and adjusting are available
  • Wooden case or flight case packaging options
  • 24-hour response time for inquiries
  • Fast delivery: Usually 6-8 working days
  • Excellent R&D team, factory price and quality assurance
Production Process

1) Incoming Inspection → 2) SMD → 3) Plug-in → 4) Wave Soldering → 5) After Welding → 6) Testing → 7) Semi Finished Aging → 8) Module Assembly → 9) Gluing → 10) Finished Aging → 11) Detection Finishing Warehousing

Packaging and Shipping

Wooden case or flight case package are available. Shipping by sea, air or DHL, multiple shipping options available.

Why Choose Us

Continuous Quality: With over 10 years experience in LED display production, regularly updated equipment and standardized module production ensure consistent product quality.

Competitive Price: Large scale production capacity and professional technology enable cost-effective solutions for customers.

Fast Delivery: Committed to promised delivery dates with emergency procedures available to maintain supply.

Perfect Service: Comprehensive pre-sales consultation and after-sales support with ongoing product improvement.

Our team is committed to providing you with full support!
