High Quality Full Color Led Video Wall Panel HD P2.6 Stage Rental Indoor Led Wall Screen

High Quality Full Color Led Video Wall Panel HD P2.6 Stage Rental Indoor Led Wall Screen

Brand Name: SCXK
Model Number: P2.604
MOQ: 2 sqm
Price: negotiation
Payment Terms: Western Union, MoneyGram, D/P, T/T, L/C
Supply Ability: 5000sqm per month
Detail Information
Place of Origin:
Shenzhen in China
Certification:
CE/ROHS/FCC/ISO/UL/CB
Pixels:
2.604mm
Tube Chip Color:
Full Color
Cabinet:
Iron Or Aluminum For Options
Pixel Configuration:
1R1G1B
Warranty:
3 Years
Brand:
SCXK
Packaging Details:
flight case, wooden case, carton, it is up to you.
Highlight:

led full color screen

,

indoor led display screen

Product Description

High Quality Full Color Led Video Wall Panel P2 Fashion HD P2.6 Stage Rental Indoor Led Wall Screen





Indoor Full Color Led Display Description



1. Ultra-light Diecasting Mag alloy density is 2/3 of Alloy and 1/4 of steel, which makes the cabinet more light weight compare to
same size of steel and Aluminum cabinet. Its specific strength and stiffness and also better than stell and aluminum alloy.
2. Ultra-thin Easy to shape up a product by magnuesium alloy, which can make high-end, thin products and make the cabinet
thickness thinner.

3. Excellent vibration absorption For example, in stress level 35MPa, Magnuesium alloy AZ91D attenuation.
coefficient is 25%, Aluminum alloy is only 1%in stress level 100MPa, Magnuesium allou AZ91D, AM60, AS41 is 53%, 72% and 70%, Aluminum
alloy A380 is only 4%. Magnuesium alloy is good for noise reduction.

4. Dimension stable Temperature and time variation have less.
effect on the instability og Magnuesium alloy diecasting product, which have higher precision after CNC process.

5. Excellent heatdissipation Fasting cooling--excellent heat dissipation performance to protect the modular circuit.

6. Excellent heat property.
Compare to other material, Magnuesium alloy heave better radiation protection and anti-interference capacity, make sure the
screen works well.

7. High universality Can be processed according to module drawing, used for outdoor and indoor.



Indoor Full Color Led Display Speicification



Item
Parameter
Parameter
Parameter
Pixel Pitch
2.604mm-indoor
2.976mm-indoor
3.91mm-indoor
Pixel Configuration
1R1G1B / R:G:B=3:6:1
1R1G1B / R:G:B=3:6:1
1R1G1B / R:G:B=3:6:1
LED Lamp
Full color
Full color
Full color
Density
147456dot/m2
112896dot/m2
65536dot/m2
Module Size
250*250mm
250*250mm
250*250mm
Module Pixel
96*96=9216dot
84*84=7056dot
64*64=4096dot
Module Thickness
15mm
15mm
15mm
Module Weight
576g
576g
576g
Module Power
≤40W
≤40W
≤40W
Drive Valtage
DC5V
DC5V
DC5V
Module Electric Current
7.64A
7.64A
7.64A
Standard Caninet Size
500mm*500mm*65mm
500mm*500mm*65mm
500mm*500mm*65mm
Cabinet Weight
6.5KG
6.5KG
6.5KG
Brightness/Adjustment
≥1200cd/m2, Level 16- Automatic / Level 100-Manual operation
≥1300cd/m2, Level 16- Automatic / Level 100-Manual operation
≥1300cd/m2, Level 16- Automatic / Level 100-Manual operation
View Angle
≥160°(Vertical),≥160°(Horizontal)
≥160°(Vertical),≥160°(Horizontal)
≥160°(Vertical),≥160°(Horizontal)
Best View Distance



5-20m
5-20m
5-20m

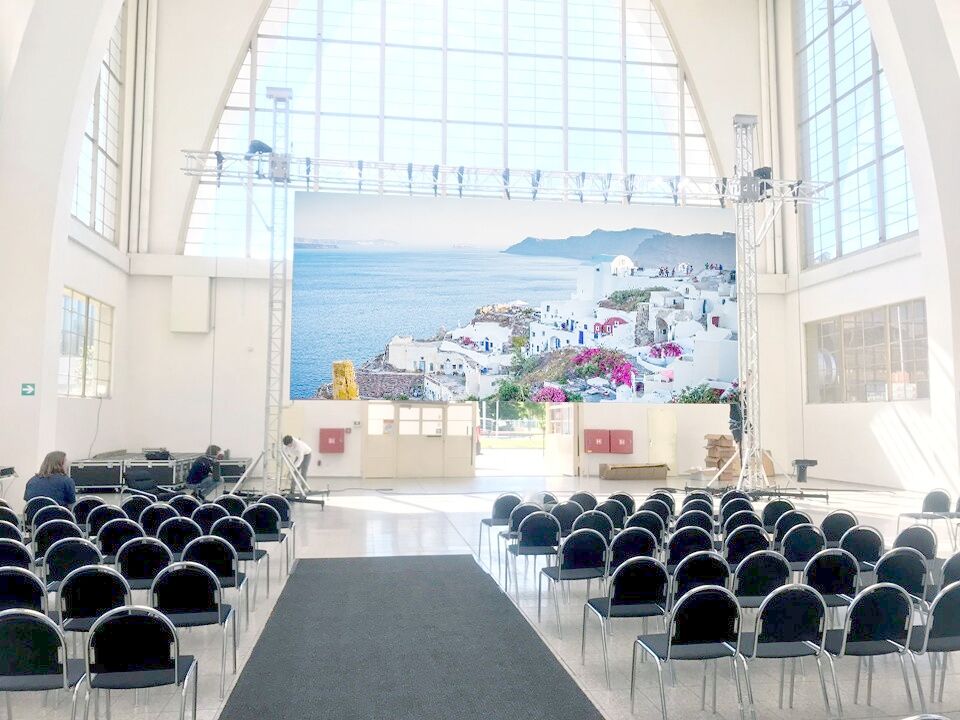

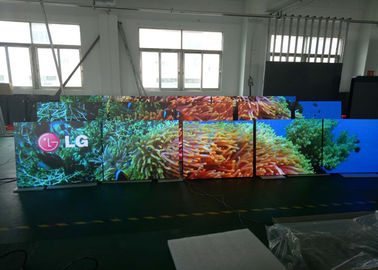

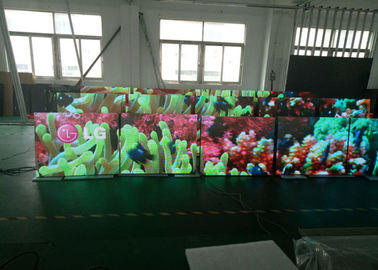

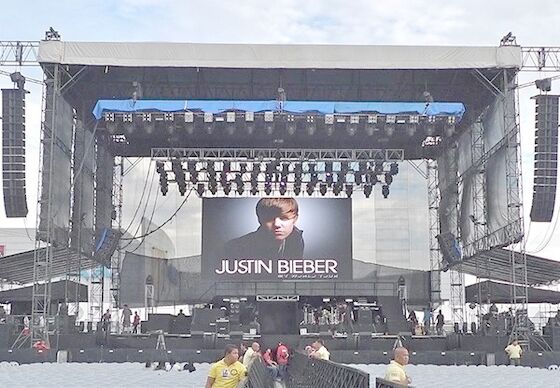

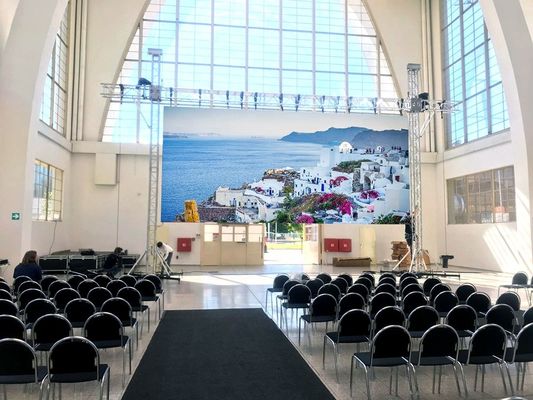

Indoor Full Color Led Display Pictures



High Quality Full Color Led Video Wall Panel HD P2.6 Stage Rental Indoor Led Wall Screen 0





High Quality Full Color Led Video Wall Panel HD P2.6 Stage Rental Indoor Led Wall Screen 1







High Quality Full Color Led Video Wall Panel HD P2.6 Stage Rental Indoor Led Wall Screen 2
