High Definition Outdoor P5 Hd Super Thin Led Display Video full color outdoor advertising led display

High Definition Outdoor P5 Hd Super Thin Led Display Video full color outdoor advertising led display

High Definition Outdoor P5 Hd Super Thin Led Display Video full color outdoor advertising led display
High Definition Outdoor P5 Hd Super Thin Led Display Video full color outdoor advertising led display

Product Details:

Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/SGS
Model Number: P5

Payment & Shipping Terms:

Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: Packed in wooden case and flight case for outer packing
Delivery Time: 10 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 5,000/ Sq m per month
Contact Now
Detailed Product Description
Product Name: Advertising Led Display Module Size(W * H): 160mm*160mm
Standard: CE/ROHS/FCC/ISO2001 Tube Chip Color: Full Color
Pixel Pitch: 5mm Module Qty: 1pcs
Type: Free Standing Resolution: High Brightness Epistar Chip
High Light:

advertising led display board

,

outdoor advertising led display

high definition outdoor p5 hd super thin led display video full color outdoor advertising led display




Shenzhen Shichuangxinke Electronics Co.,Ltd is established in 2005. we are a leading manufacturer and provider of technical solution of full color indoor an outdoor ledisplay,rental LED display, led modules
located in Shenzhen ctiy,Guangdong province,China . and we have been enjoying good reputation in led display both in  domestical and international market.


♦ Product specification



1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed & dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.



Resolution/mm 5
Pixel configuration 1R1G1B
Pixel density/pixels/m² 40000/m²
Module resolution 32x32
Module size/mm 160x160
View distance 3-150m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness 7000 cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode 1/8
Frame rate 60Hz
Refresh frequency >3000Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >10000hours
Life time 100000hours
Life-all-white(brightness halving) 100000hours
Environment temperature range Operating temperature range: -20-45℃
Maximum power:/㎡ <700W
Average power:/㎡ <500W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%

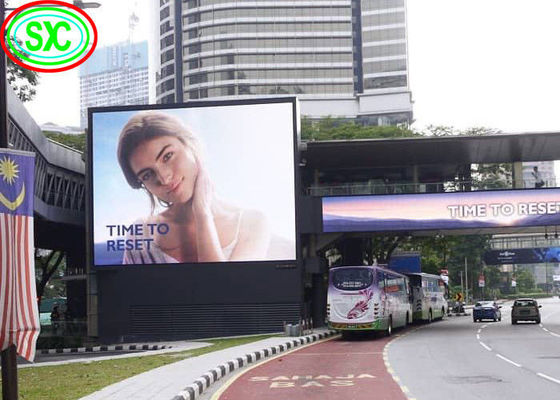

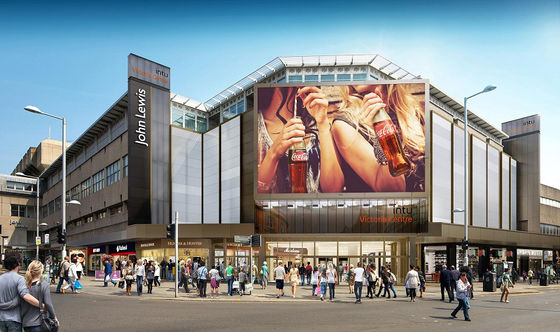

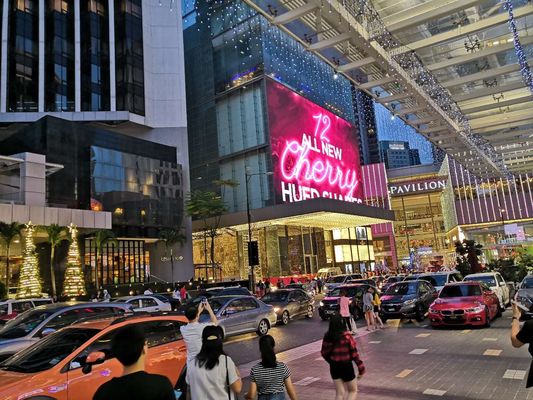

Application
It can be used on the shopping mall,bank, bus station, train station, center of downtown, airport, school, factory, bus, taxi, and so on. we adopt many methods and very good after-sales service to sell our product all over the world.. Whenever and wherever we are , we always take the principle that professional makes good quality, provide the perfect product and service for our customer.





High Definition Outdoor P5 Hd Super Thin Led Display Video full color outdoor advertising led display 0



About our led displays


1.Wide application field & short ROI time:

commercial advertising LED display screen, Stadium perimeter LED display screen, Mobile trailer LED display screen for mobile media,shopping mall LED display screen for logo showing, bank&stock exchange LED display screen for rates showing, train & bus station LED display screen
air port LED display screen, telecommunication LED display screen system for information showing and instruction .

2. High Contrast ratio: 4000:1
Which is a very high level to ensure a vivid image of our LED display screen system.


3. First-class LED chip:
Supplied by Nichia of Japan & other high strictly selected LED chip to ensure the long lifetime and high brightness of our LED display screen system


4. Clear vivid image quality:
Even in direct, full-on sunlight to ensure you attract more audience to get short ROI of your LED display screen's investment.



Methods for Quality Assurance
a. Aging
1. 100% fully test Condition: 72 hours with 256 gray level


b. Vibration Testing
Condition: 3-5 min up and down in 5mm range

High Definition Outdoor P5 Hd Super Thin Led Display Video full color outdoor advertising led display 1




The epistar Led chip. with SMD and DIP Technology .

we adopt the epistar led chip from Taiwan,DIP and SMD led display module will be available



High Definition Outdoor P5 Hd Super Thin Led Display Video full color outdoor advertising led display 2


The steer consturction is very stable for led display,and you can purchase from your local market .


The package and shippment




we can receive all kinds of transportation. and the shippment term. FOB and CIF. EXW and so on.
we can choose the best shippment which is convenient to you!
SCXK group can give you the short delivery time and With the large production ability ,
you can feel free about this . By air ,by train, by sea?



Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.


Competitive Advantage:
1. 2 years’ warranty with free repair service
2. 24/7 Hours online Remote Support
3. Solution and PCB design
4. Free factory training
5. On site installation instruction and regular inspection
6, Small order accepted.





High Definition Outdoor P5 Hd Super Thin Led Display Video full color outdoor advertising led display 5
