Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China ,Guang Dong |
| Brand Name: | Shichuangxinke |
| Certification: | CE RoHS FCC CCC TUV UL |
| Model Number: | SCXK-P2.5 |
| Minimum Order Quantity: | 1 square meters |
|---|---|
| Price: | USD 1200-1400 per square meters |
| Packaging Details: | wooden box flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after deposit payment received |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000sqm per month |
| Resolution/mm: | 2.5 | Pixel Configuration: | 1R1G1B |
|---|---|---|---|
| Scanning Mode: | 1/16 Scanning | Module Size: | 160x160MM |
| Cabinet Size: | 480x480MM | Certificates: | CE RoHS FCC CCC UL |
| Application: | Stadium,airport,shopping Mall,street Advertising | Material: | Aluminum |
| Warranty: | 3-5 Years | ||
| Highlight: | led stage display,stage led display |
||

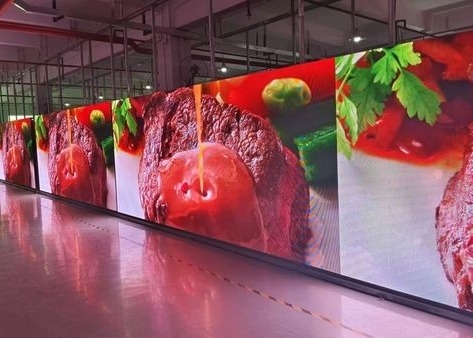

Stage equipment full color indoor screen P2 P2.5 P3 P4 P5 P6 led display video wall
Specifications :
| outdoor DIP P2.5 | |||||
| Resolution/mm | |||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 160000/m² | ||||
| Module resolution | 64x64 | ||||
| Module size/mm | 160x160MM | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/㎡ | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/16 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
1. Specification:

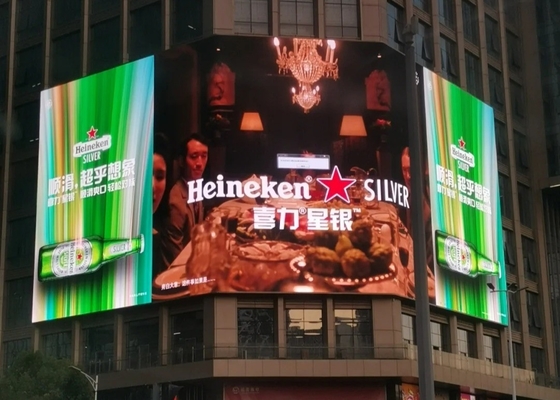

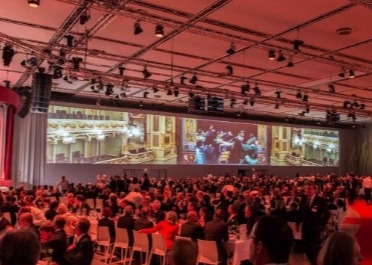

1). Suitable for indoor display, super bright, supports any format of video 2). Simple and easy installation interface and user-friendly software ensure the LED display system is easy to operate. 3). Our LED display screens are widely used in commercial advertising, indoor LED video walls, entertainment industry, stage events, concerts, financial industry, communications, power sector, transportation, stadiums, squares, schools, airports, etc. for advertising and displaying information.
2, Product Features:
1). Adopt brightness and hue adjustment technology to eliminate bright spots, dark spots and spots, and achieve uniform color and brightness of the whole screen; use HDTV standard as a reference for color calibration to restore the color of the whole screen to be natural and realistic.
2). The module is carefully designed to make the plane difference less than 0.2mm, effectively eliminate the mosaic phenomenon, and ensure good flatness and contrast of the whole screen.
3). Modular ultra-light cabinet, quick locking, positioning pin, easy installation, disassembly and maintenance, can be installed on site by hoisting or stacking.
4). The cabinet is made of high-quality die-cast aluminum, with strong bearing capacity and small deformation, suitable for large entertainment venues.
Application

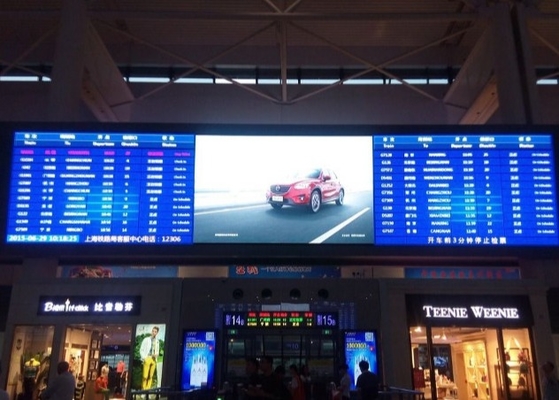

LED display in Bus station&Metro station
Information display in bank,super-market,school,hospital and other place.
Automotive advertising screen.
Information screen in electrically operated gate.
|
The training class is mainly to assure customer have good used the products. It needs both of the buyer and seller to work along with the contract. Seller is responsible for training buyers how to operate the software of LED screen and some basic hardware mantenance knowledge. When installing and testing are being well-finished, the detailed training class informations as below: 1. The basic operation principal 2. Procedures and managements of system operation 3.The daily maintenance and safety caution 4. System software installation 5. Simple software failure treatment 6. Simple hardware failure treatment |
FAQ
1. What is LED?
LED stands for Light Emitting Diode, a kind of semiconductor which is used to give and receive the electronic signal into infrared rays or light, using the characteristics of compound semiconductor.
2. What are Pixel Pitch and Pixel Configuration?
Pixel Pitch is the distance between neighboring pixels.
Pixel Configuration is the description of the consistence of a pixel.
3. What are LED Type, Module Size and Module Resolution?
LED Type is the description of LED lamp.
Module Size is the measurement of a module.
Module Resolution is the number of pixels per module.
4. What is Drive Method, Driving IC?
Drive Method uses static, 1/4 scan, 1/8 scan, 1/16 scan, the latter one contributes to less brightness than the former.
Driving IC is the generic term for several kinds of IC, which are used to control the LED lamps.
5. What is Viewing Angle?
Viewing angle is the maximum angle at which a display can be viewed with acceptable visual performance.
6. Are you factory?
Yes. We are factory.
