10mm Pixel Pitch Outdoor LED Billboards Full Color Commercial Advertising LED Display

Brand Name:	SCXK
Model Number:	P10
MOQ:	10sqm
Price:	negotiation
Payment Terms:	Western Union, MoneyGram, D/P, T/T, L/C
Supply Ability:	5000sqm per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen in China

Certification:

CE/ROHS/FCC/ISO/UL/CB

Pixels:

10mm

Tube Chip Color:

Full Color

Led Type:

SMD3535

Display Function:

Video

Cabinet:

Iron Or Aluminum For Options

Cabinet Size:

960*960

Working Voltage:

DC5V

Warranty Time:

3 Years

Dot Density:

10000

Driving Mode:

1/4scaning

Packaging Details:

flight case, wooden case, carton, it is up to you.

Highlight:

led digital billboards

led screen billboard

Product Description

10mm Pixel Pitch Outdoor LED Billboards Full Color Commercial SMD3535 Advertising LED Display

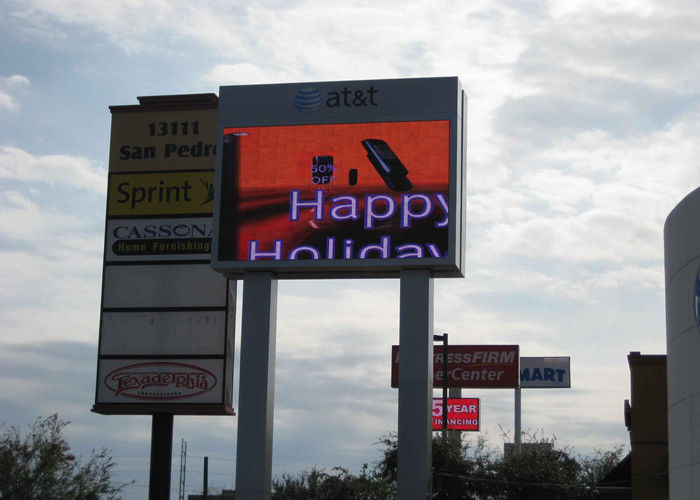

LED Billboard

Billboard advertisements are designed to catch a person's attention and create a memorable impression very quickly, leaving the reader thinking about the advertisement after they have driven past it. They have to be readable in a very short time because they are usually read while being passed at high speeds. Thus there are usually only a few words, in large print, and a humorous or arresting image in brilliant color.

The Feature of P10 Module

1. the use of ultra-high brightness LED and high-quality plastic pieces
2. high-contrast hue can achieve a good display
3. lightweight, easy to install, remove
4. can be single-point, single lamp maintenance, low cost
5. using a constant current way to drive LED, light uniformity, low power consumption
6. the pixel pitch is 6mm, a total of 32 * 16 pixels, each pixel consists of 1R1G1B.

Technical Parameters of P10 Advertising Led Screens

			Outdoor SMD P10

			Resolution/mm
			10

			Pixel configuration
			1R1G1B

			Pixel density/pixels/m²
			10000m2

			Module resolution
			32*16

			Module size/mm
			320*160

			View distance
			12-300m

			Single point brightness adjust
			Can be added

			Single point color adjust
			Can be added

			White balance brightness
			>8000cd/㎡

			Color temperature
			6500K-9500K

			Horizontal view angle
			120(degrees)

			Vertical view angle
			60(degrees)

			Signal Process bit
			10 or 16bit

			Driving mode
			Constant driving current

			Scanning mode
			static dring

			Frame rate
			60Hz

			Refresh frequency
			3000Hz

			Control mode
			Computer synchronous

			Brightness adjusted range
			Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss

			Out of control point
			<1/10000

			Working hours
			>72hours

			Mean time Between Failure
			>500hours

			life time
			>100000hours

			Envirornment temperature range
			operating temperature range -200c-500c

			Maximun power :/m2
			-<800w

			Average power:/m2
			<300w

			Self-check technolog
			LED spot self-check, communication check, power check, temperature monitor(need customization)

			Remote monitoring
			Remote supervision and control, record potential fault send out warning signs to the operators(need customization)

			Software environment
			Windows 1999, Windows

			Input power cable
			AC110v to220v

			Signal input
			DVI

			Warranty
			2 years quality warranty, 10 years spare parts support

The Advantages of our Products
1. The product structure is resistant to 100 Km / h wind and 8 earthquakes.

2. With excellent waterproof performance, safe and reliable power system.

3. All components of the product can be processed according to customer requirements.

4. All materials are environmentally friendly materials.

5. The life of the product is more than 5 years.

6. The warranty is for 2~5 years.

7. We can provide additional installation, permanent technical supports, and training services.

Control System

Certificates:

♦ Our Mission:

To be the premier providr of creative, marketing and innovative solutions devoted to helping other companies succeed and grow.

Why Choose us?

Packing&Shipping

Packing: wooden case, flight case for choose

shipping: by air, sea, train, DHL, you are the boss

10mm Pixel Pitch Outdoor LED Billboards Full Color Commercial Advertising LED Display 8

FAQ

1. How can I place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype/email /Whatsapp, in case of any delays.

2. What kind of display do we provide?
We have indoor/outdoor/mobile LED /rental LED display /LED stage/ Advertising LED display for you to choose. The customized service also could be provided

3. What about the lead time for an order?
Always: 7-17 days after receiving your payment, as your order quantity, sometimes we have stock, can delivery within 7 days

4. What about the warranty?
We have 2~5 years of quality guaranteed, spare parts such as the led module, receiving card, control card, power supply are damaged not cause of artificial damaged, then it's free maintenance and ship back new ones for replacement.

5.How about the quality?

Our led products must be testing of at least 72 hours before shipping, from purchase raw materials to ship, Each step has strict quality control systems to ensure led display with good quality

6. Can you offer technical support? Since it's my first time....
We provide free training for our customer, teach the client how to set up screens, make configuration of parameters, broadcast the videos through Nova star and colorlight or Linsn control systems, our engineer can directly teach you how to control, or help you to do if you are really don't know how to control(Our Engineer can text English, we can saving more time )

Tags:

SMD HD 8k 4k P1.2 P1.5 P1.8 P2 P2.5 P3 Full Color Ultra-Thin Fixed Indoor LED Video Wall Indoor 4k HD High Brightness Screen

Get Best Price

COB P2.5 High Definition Full Color Led Signs Outdoor / Multi Color Led Display Board 320*160

Get Best Price

Outdoor led billboards COB P2.5 6500 High Brightness IP65 Nationstar 1920Hz led display led billboard

Get Best Price

Outdoor SMD P10
Resolution/mm	10
Pixel configuration	1R1G1B
Pixel density/pixels/m²	10000m²
Module resolution	32*16
Module size/mm	320*160
View distance	12-300m
Single point brightness adjust	Can be added
Single point color adjust	Can be added
White balance brightness	>8000cd/㎡
Color temperature	6500K-9500K
Horizontal view angle	120(degrees)
Vertical view angle	60(degrees)
Signal Process bit	10 or 16bit
Driving mode	Constant driving current
Scanning mode	static dring
Frame rate	60Hz
Refresh frequency	3000Hz
Control mode	Computer synchronous
Brightness adjusted range	Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss
Out of control point	<1/10000
Working hours	>72hours
Mean time Between Failure	>500hours
life time	>100000hours
Envirornment temperature range	operating temperature range -20⁰c-50⁰c
Maximun power :/m²	-<800w
Average power:/m²	<300w
Self-check technolog	LED spot self-check, communication check, power check, temperature monitor(need customization)
Remote monitoring	Remote supervision and control, record potential fault send out warning signs to the operators(need customization)
Software environment	Windows 1999, Windows
Input power cable	AC110v to220v
Signal input	DVI
Warranty	2 years quality warranty, 10 years spare parts support
