P5mm Outdoor Full Color Stadium LED Display SMD 2121 IP65 Waterproof

P5mm Outdoor Full Color Stadium LED Display SMD 2121 IP65 Waterproof

Brand Name: SCXK
Model Number: P5
MOQ: 3 sqm
Price: negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 sqm per month
Detail Information
Product Description
Detail Information
Place of Origin:
ShenZhen China
Certification:
CE/ROHS/FCC/ISO/CB/UL
Pixel Pitch:
5mm
Tube Chip Color:
Full Color
Led Type:
SMD 2121
Display Function:
Video/Text/Image
Cabinet:
Die-casting Aluminum/iron
Frame Frequency:
>=60HZ
Certificates:
CE, RoHs, FCC, ISO, CB
Dot Density:
40000 Dots/ Sqm
Viewing Angle:
140/120
Packaging Details:
flight case, wooden case, carton, it is up to you.
Highlight:

perimeter led display

,

perimeter led screen

Product Description
Outdoor Football Stadium P5 Digital Big LED Display Video Wall Billboard
Product Attributes
Attribute Value
Pixel Pitch 5mm
Tube Chip Color Full color
Led Type SMD 2121
Display Function Video/Text/Image
Cabinet die-casting aluminum/iron
Frame Frequency >=60HZ
Certificates CE,RoHs,FCC,ISO, CB
Dot density 40000 dots/ sqm
Viewing angle 140/120
Technical Specifications
Parameter Value
Pitch size 5mm

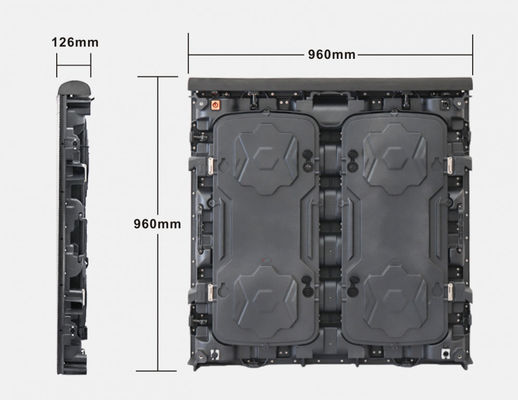

Module size 320mm*160mm
Panel pixel(dots) 64*32
Pixel configuration 1Red,1Green,1Blue
Color scale 256-65536grade/16777216colors
Pixel density 40000 pixels/square meter
View angle(H/V) 160/120 degree
Brightness ≥ 6500cd/square meter
View distance 5-150m
Power consumption 100-1200W/square meter
Net weight 8kg/pcs
Operating temperature -25°C~+60°C
Operating humidity 10% --95%RH
Life time ≥ 100,000hours
Key Features
  • High refresh rate (3800Hz): No flicker during live switching, ensuring high-definition display quality
  • Standard 320mm×160mm modules: Easy assembly, maintenance, and pixel pitch changes
  • Exquisite cabinet design: Lightweight with quick locks and humanized handlebar for easy installation
  • Independent support structure: Adjustable installation angles (60°-90°) for flexible positioning
  • Soft mask design: Protective padding enhances safety for players and spectators
  • Ultra-lightweight cabinet: Only 28.5kg for easy transportation and installation
  • IP65 waterproof rating: All-weather performance with excellent water resistance
  • Advanced thermal management: Special air inlet design for effective heat dissipation
Product Images
P5mm Outdoor Full Color Stadium LED Display SMD 2121 IP65 Waterproof 0 P5mm Outdoor Full Color Stadium LED Display SMD 2121 IP65 Waterproof 1 P5mm Outdoor Full Color Stadium LED Display SMD 2121 IP65 Waterproof 2 P5mm Outdoor Full Color Stadium LED Display SMD 2121 IP65 Waterproof 3 P5mm Outdoor Full Color Stadium LED Display SMD 2121 IP65 Waterproof 4 P5mm Outdoor Full Color Stadium LED Display SMD 2121 IP65 Waterproof 5 P5mm Outdoor Full Color Stadium LED Display SMD 2121 IP65 Waterproof 6 P5mm Outdoor Full Color Stadium LED Display SMD 2121 IP65 Waterproof 7 P5mm Outdoor Full Color Stadium LED Display SMD 2121 IP65 Waterproof 8
Packaging & Shipping
Available in wooden case or flight case packaging. Shipping options include sea, air, or DHL express.
Our technical team provides comprehensive support for installation and maintenance.
