High Definition Indoor Curved P3.91 Full Color LED Display With Adjustable Angle Cabinet

High Definition Indoor Curved P3.91 Full Color LED Display With Adjustable Angle Cabinet

High Definition Indoor Curved P3.91 Full Color LED Display With Adjustable Angle Cabinet
High Definition Indoor Curved P3.91 Full Color LED Display With Adjustable Angle Cabinet
High Definition Indoor Curved P3.91 Full Color LED Display With Adjustable Angle Cabinet
Product Details:
Place of Origin: China
Brand Name: SCXK-3.91
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P3.91-c
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton
Delivery Time: 7-15days
Payment Terms: T/T, Western Union
Supply Ability: 5000sqm/month
Contact Now
Detailed Product Description
Module Size: 250mm*250mm Ube Chip Color: Full Color
Pixel Pitch: 3.91mm Standard: CE/ROHS/FCC/ISO2001
Resolution: 64dots*64dots Display Function: Video,Animation,Graphics
Highlight:

led display rgb

,

rgb led screen

High Definition Indoor Curved P3.91 Full Color LED Display With Adjustable Angle Cabinet led tv display panel





Shenzhen Shichuangxinke Electronics Co.,Ltd established in 2005, focusing on the international market  for 5 years, relying on the strong technical strength, the advanced production management system and our international business team, we successfully set up a base gathering the abilities of R & D, production and sales in Shenzhen.



Our products are sold to The Middle East, South America, North America, Europe, Southeast Asia, Australia, Africa and other regions through our perfect global marketing network.

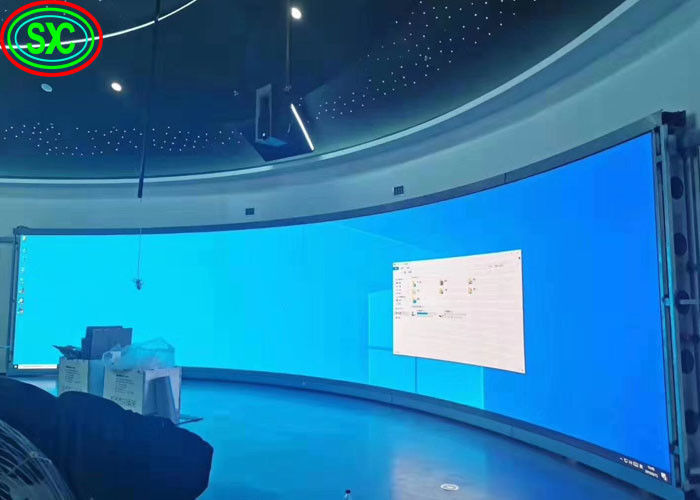

High Definition Indoor Curved P3.91 Full Color LED Display With Adjustable Angle Cabinet 0



Products Feature



Using special design cabinet,let the screen can be curved.
Unique curved screen module,makes the screen perfect stitching together.
Adjustable range of angle: 0°-20°,brings beauty to our vision
Widely used in stage background.



Our Advantage service



1, We have our own developing and designing team, Which ensure our own technological and innovate products ofr customers.

2, For any customers who have new idea about some products,just let us know, we can according to your idea provide a unique design of the products.

3, For any customers who send us the samples of some products, we will design and develop better ones based on the samples.

4, for every customer,we wll choose the best fit material,and also innovate material for their products.

5, we can according to any customers' design to do sample for them.

6, we are manufacturer,factory,so we have the ability of mass production.



Product description

LED Lamps Type SMD2121(High Brightness LEDs)
LED Standard Real Pixel(1R1G1B)
Red Wavelength 625-630nm
Green Wavelength 515-530nm
Blue Wavelength 465-475nm
LED Module Pixel Pitch 3.91mm
Module Size 250mx250m
Module Resolution 64dots*64dots
LED Cabinet Cabinet Size 500mmX500mm,500mmx1000mm
Cabinet Resolution 128pixels *128pixels,128pixels*256pixels
Cabinets Material steel or aluminium
LED Display Pixel Density 65410pixels/sq.m
Drive IC MBI5024
Power Supply Chuanglian/Meanwell
Brightness >2500cd/sqm
Display Color 16.7million
Viewing Angle 110°(Horizontal),50°(Vertical)
Best Viewing Distance 1m~100m
Max Power Consumption 400w/sq.m
Average Power Consumption 240w/sq.m
Refresh Rate 3000hz
Input Voltage AC220V/50H or AC110V/60H
Output Voltage DC5V,40A
Grey Scale Levels 1024
Display Colors R(1024) x G(1024) x B(1024)
MTBF 10,000 hours
Life-span 100,000 hours
Protection Level IP43
Failure percentage of leds less than 0.0003
Working Temperature -25℃~65℃
Drive Mode 1/4 scan constant current
Working Humidity 10%~99%
Control method Synchronization & Asynchronization
Control System Control System Linsn/Nova
Software LED Studio
Input Signal MPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RM/ASF/BMP/GIF/PCX/TXT/DOC.etc
PC Operating system

Microsoft Windows 7, 98, 2000, XP and Vista









Methods for Quality Assurance

a. Aging

1. 100% fully test Condition: 72 hours with 256 gray level





b. Vibration Testing

Condition: 3-5 min up and down in 5mm range




The epistar Led chip. with SMD and DIP Technology .



we adopt the epistar led chip from Taiwan,DIP and SMD led display module will be available

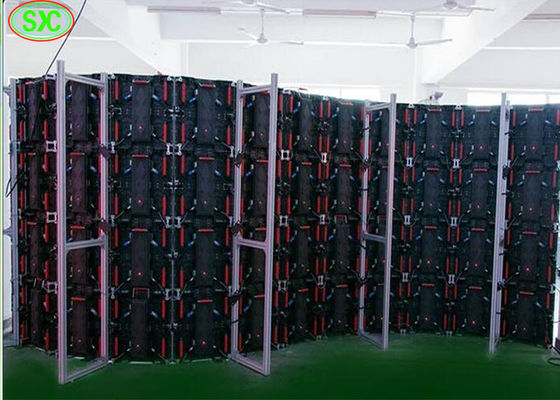

High Definition Indoor Curved P3.91 Full Color LED Display With Adjustable Angle Cabinet 1






The steer consturction is very stable for led display,and you can purchase from your local market .





The package and shippment












♦ Payment and delivery



1) T/T, 30% deposit, 70% before shippment.
2) 100% Western Union in advance.







Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.





♦ Why choose us:



Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.





♦ FAQ



What kind of payment terms you can accept ?

We can accept T/T and Western Union.



What about your Led Display quality ?

Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of

our products continuity.



What is your delivery time ?

Within 7-35 days according to your area and quantity.



Is your LED display competitive ?

Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure

our led display’s competitiveness.



Easy Operating LED Full Color Screen , P3.91 led advertising display SMD2121
