P6 Outdoor Lawn playground Full Color Waterproof LED Display Screen 6mm Pixel SMD 3535

Detail Information

Place of Origin:

ShenZhen in China

Certification:

CE/ROHS/FCC/ISO/UL/CB

Pixels:

6mm

Tube Chip Color:

Full Color

Cabinet:

Iron

Pixel Configuration:

1R1G1B

Warranty:

3 Years

LED Shape & Size:

SMD 3535/2727

Packaging Details:

flight case, wooden case, carton, it is up to you.

Highlight:

Product Description

Large P6 Outdoor Advertising LED Panel - Full Color High Resolution LED Display Screen

Product Specifications

Key Features

Our Competitive Advantages

High quality: 100% tested before shipping with premium LED chips (CREE, SILAN, OPTO, EPISTAR) ensuring high brightness and long lifespan
Strong productivity: 7,000 square meters production capacity per month with shorter delivery times
Competitive pricing: 10% below market due to automated production reducing labor and management costs
Stable performance: 24+ hours aging test, malfunction rate below 0.0001, MTBF exceeding 1,000 hours
Responsive support: All questions answered within 24 hours

Product Functionality

Adjustable intensity to meet various environmental requirements
Excellent consistency of light with minimal mosaic effect
Crisp, clear display of pictures and characters with realistic effects
Wide viewing angles: 110° horizontal, 60° vertical
Easy maintenance with individually repairable LED lamps

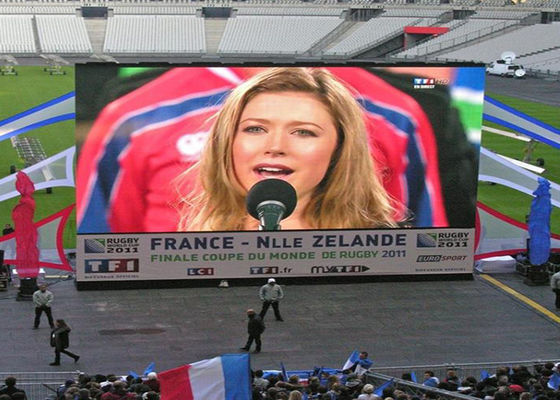

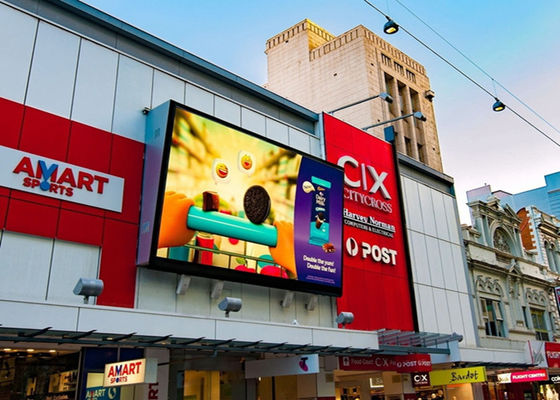

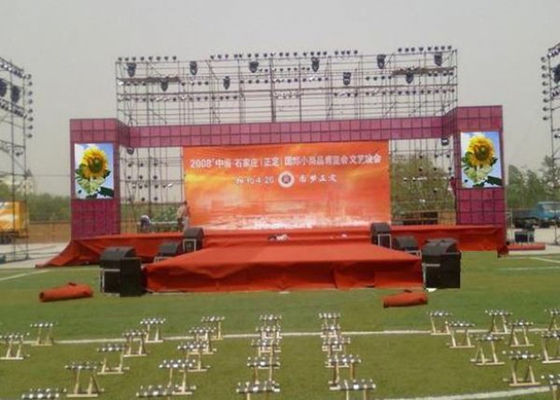

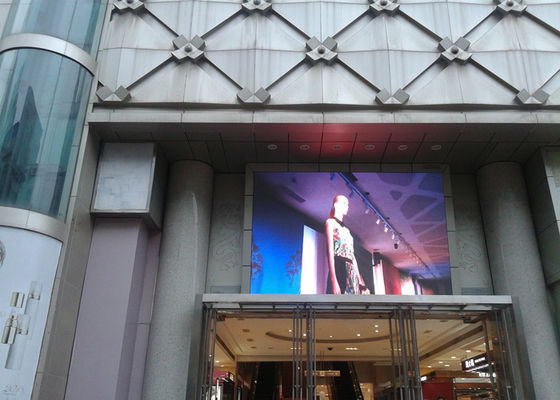

Ideal for sports venues, advertising, financial institutions, transportation hubs, and indoor P6 displays

Technical Specifications

Product Name	P6 SMD Outdoor Full Color LED Display
LED Lamps	SMD 3535 (High Brightness LEDs)
LED Standard	Real Pixel (1R1G1B)
Wavelengths	Red: 625-630nm Green: 515-530nm Blue: 465-475nm
LED Module	Pixel Pitch: 6mm Module Size: 192mm × 192mm Resolution: 32×32 dots
LED Cabinet	Size: 960mm × 960mm Resolution: 160×160 pixels Material: Iron or die-casting aluminum
Control System	Input Signals: Multiple video formats supported PC System: Windows/98/2000/XP compatible
