Our Advantage service



1, We have our own developing and designing team, Which ensure our own technological and innovate products ofr customers.

2, For any customers who have new idea about some products,just let us know, we can according to your idea provide a unique design of the products.

3, For any customers who send us the samples of some products, we will design and develop better ones based on the samples.

4, for every customer,we wll choose the best fit material,and also innovate material for their products.

5, we can according to any customers' design to do sample for them.

6, we are manufacturer,factory,so we have the ability of mass production.

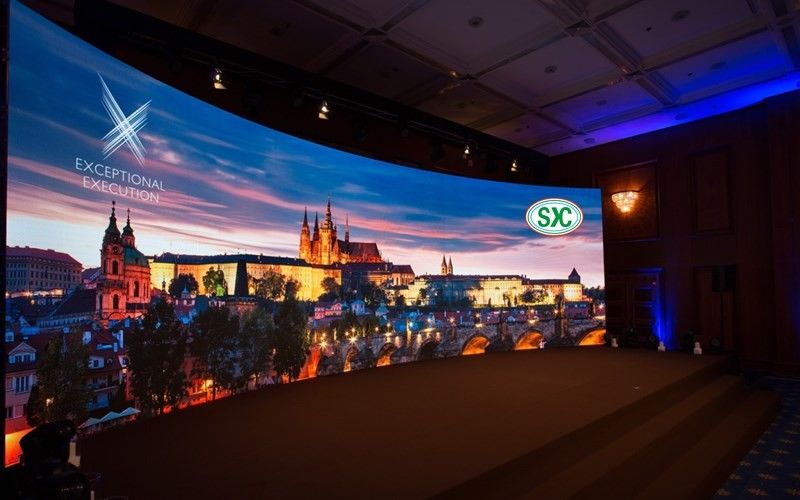

Shenzhen SCXK Electronic Co.,Ltd start in 2005,it has been devoting to high-quality LED display designing & manufacturing for 12 years. equipped with professional team and modern facilities, we manufacture fine LED display products,  wide application in airports, stations,ports,gymnasiums, banks, schools, churches ,etc.our LED products are deployed across 100 countries all over world,covering Asia, Middle East, America, Europe and Africa.

Product description

LED Lamps	Type			SMD2121(High Brightness LEDs)
	LED Standard			Real Pixel(1R1G1B)
	Red Wavelength			625-630nm
	Green Wavelength			515-530nm
	Blue Wavelength			465-475nm
LED Module	Pixel Pitch			3.91mm
	Module Size			250mx250m
	Module Resolution			52dots*52dots

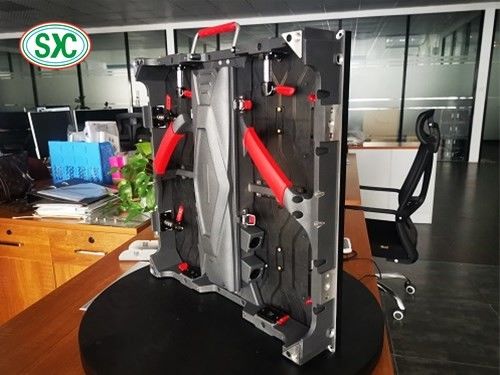

LED Cabinet	Cabinet Size			500mmX500mm,500mmx1000mm
	Cabinet Resolution			128pixels *128pixels,128pixels*256pixels
	Cabinets Material			steel or aluminium
LED Display	Pixel Density			65410pixels/sq.m
	Drive IC			MBI5024
	Power Supply			Chuanglian/Meanwell
	Brightness			>6000cd/sqm
	Display Color			16.7million
	Viewing Angle			110°(Horizontal),50°(Vertical)
	Best Viewing Distance			1m~100m
	Max Power Consumption			1100w/sq.m
	Average Power Consumption			500w/sq.m
	Refresh Rate			3000hz
	Input Voltage			AC220V/50H or AC110V/60H
	Output Voltage			DC5V,40A
	Grey Scale Levels			1024
	Display Colors			R(1024) x G(1024) x B(1024)
	MTBF			10,000 hours
	Life-span			100,000 hours
	Protection Level			IP43
	Failure percentage of leds			less than 0.0003
	Working Temperature			-25℃~65℃
	Drive Mode			1/16 scan constant current
	Working Humidity			10%~99%
	Control method			Synchronization & Asynchronization
Control System	Control System			Linsn/Nova
	Software			LED Studio
	Input Signal			MPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RM/ASF/BMP/GIF/PCX/TXT/DOC.etc
	PC Operating system			Microsoft Windows 7, 98, 2000, XP and Vista







Methods for Quality Assurance

a. Aging

1. 100% fully test Condition: 72 hours with 256 gray level





b. Vibration Testing

Condition: 3-5 min up and down in 5mm range

The epistar Led chip. with SMD and DIP Technology .



we adopt the epistar led chip from Taiwan,DIP and SMD led display module will be available











The steer consturction is very stable for led display,and you can purchase from your local market .





The package and shippment











we can receive all kinds of transportation. and the shippment term. FOB and CIF. EXW and so on.

we can choose the best shippment which is convenient to you!

SCXK group can give you the short delivery time and With the large production ability ,

you can feel free about this . By air ,by train, by sea?







Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.



♦ Why choose us:



Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.







♦ Frequently Asked Questions





What kind of payment terms you can accept ?

We can accept T/T and Western Union.



What about your Led Display quality ?

Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of

our products continuity.



What is your delivery time ?

Within 7-35 days according to your area and quantity.



Is your LED display competitive ?

Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure

our led display’s competitiveness.
