Our Advantage service



1, We have our own developing and designing team, Which ensure our own technological and innovate products ofr customers.

2, For any customers who have new idea about some products,just let us know, we can according to your idea provide a unique design of the products.

3, For any customers who send us the samples of some products, we will design and develop better ones based on the samples.

4, for every customer,we wll choose the best fit material,and also innovate material for their products.

5, we can according to any customers' design to do sample for them.

6, we are manufacturer,factory,so we have the ability of mass production.



Product description

Specifications:

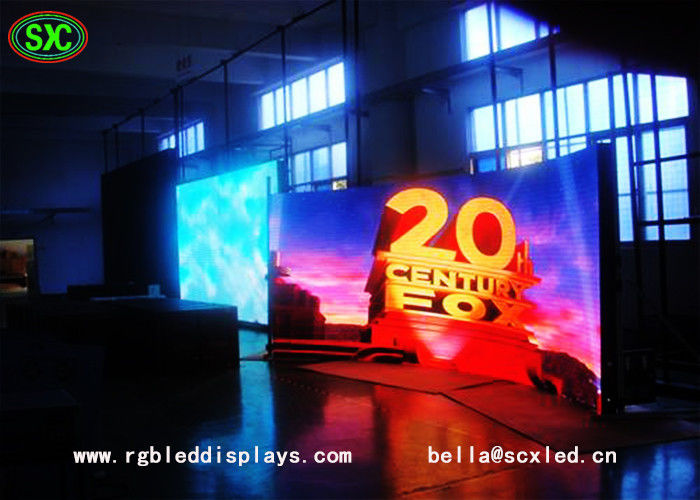

Outdoor P4.81mm Rental & fixed installation(DI series) led display

Visual

Mode No.	DI-4.81
Pixel Pitch	4.81mm
Led Type	SMD2121/SMD2020
Pixel Arrangement	3 in 1
Pixel Density(per sqm)	43222
Brightness(cd/sqm)	6500
Processing	12bit/14bit/16bit
View Angle	140/140
View Distance(m)	4.5

Module

Module Resolution	52×52
Module Size(mm)	250×250
Module Weight(kg)	0.35
Power Input	3.8V to 5V DC
Max Power Consumption(W/pcs)	45
Ave Power Consumption(W/pcs)	18

Cabinet

Cabinet Size(mm)	500×500×90
Cabinet Resolution	104×104
Cabinet Weight(Kg)	8
Cabinet Material	Aluminum

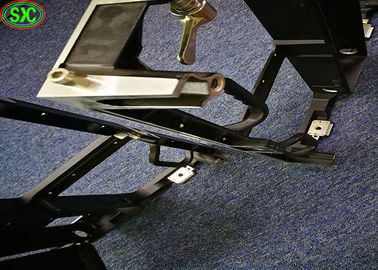

Cabinet Type	Die-casting Rental cabinet
Maintenance Way	Back/Front Maintenance
Max Power Consumption(W/pcs)	200
Ave Power Consumption(W/pcs)	120
Transparency	NO
Modules per cabinet(pcs)	4
Input Voltage	AC100~240V 50/60 HZ

Installation

Stacking	Available
Max hanging	16
Curve Capability	NO

Enviroment

IP Rating(Front/back)	IP67
Continous Working Time(hours)	72
Operating Temperature	-20℃~60℃
MTBF(hours)	5000
Humidity	0-90
Lifespan(hrs)	≥100000

Control System

Control System	Colorlight/Linsn/Nova/Xixun
Interface	DVI
Drive IC	MBI5124/MY9868/MBI5252
Refresh Rate	≥1000HZ/≥2000HZ
Scan	1/13
Video Processor	RGB-Link/Video Wall/Magnimage/Speed Leader/Svision





Methods for Quality Assurance

a. Aging

1. 100% fully test Condition: 72 hours with 256 gray level





b. Vibration Testing

Condition: 3-5 min up and down in 5mm range

The epistar Led chip. with SMD and DIP Technology .



we adopt the epistar led chip from Taiwan,DIP and SMD led display module will be available











The steer consturction is very stable for led display,and you can purchase from your local market .





The package and shippment











we can receive all kinds of transportation. and the shippment term. FOB and CIF. EXW and so on.

we can choose the best shippment which is convenient to you!

SCXK group can give you the short delivery time and With the large production ability ,

you can feel free about this . By air ,by train, by sea?







Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.



♦ Why choose us:



Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.







♦ Frequently Asked Questions





What kind of payment terms you can accept ?

We can accept T/T and Western Union.



What about your Led Display quality ?

Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of

our products continuity.



What is your delivery time ?

Within 7-35 days according to your area and quantity.



Is your LED display competitive ?

Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure

our led display’s competitiveness.
