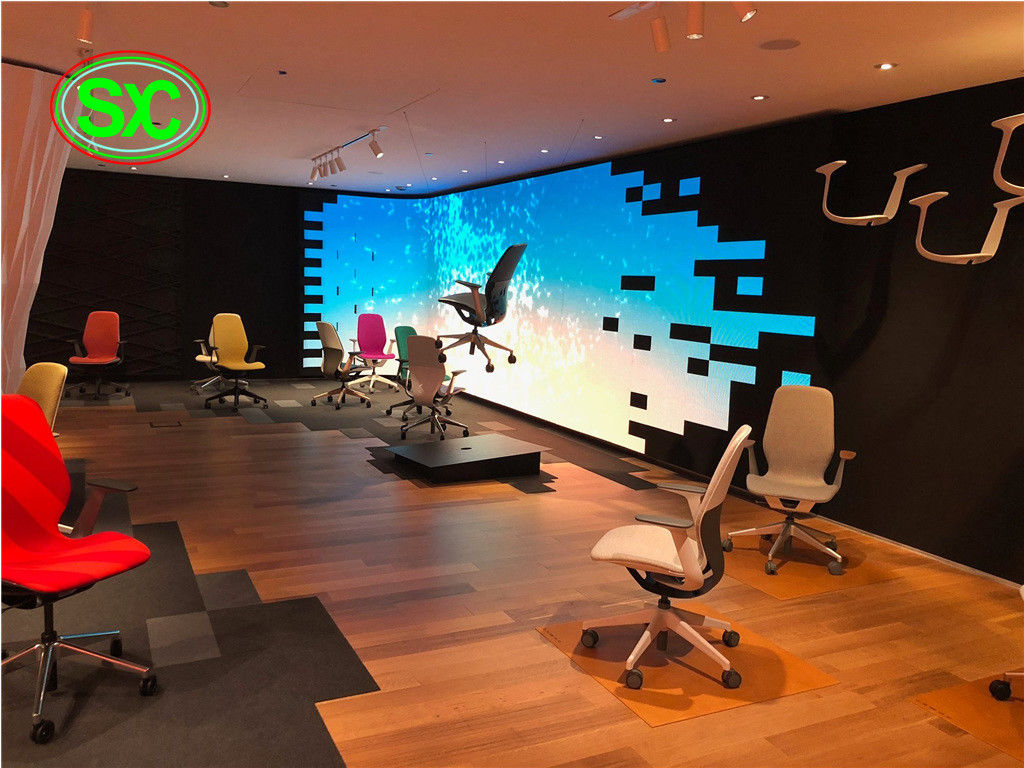

HD Indoor Full Color LED Display / LED Video Wall Screen P2.5 160mm*160mm

indoor full color led display, p2.5 high definition magic led screen

Shenzhen Shichuangxinke Electronic Co.,Ltd start in 2005,it has been devoting to high-quality LED display designing & manufacturing for 12 years. equipped with professional team and modern facilities, we manufacture fine LED display products, wide application in airports, stations,ports,gymnasiums, banks, schools, churches ,etc.our LED products are deployed across 100 countries all over world,covering Asia, Middle East, America, Europe and Africa.



Application:



Commercial advertising: Shopping Mall, Road side, Airport, Wharf, Hotel, Church,Restaurant etc.

Live broadcast: Gym, Stadium, Concert, Sport Match, Competition, Gov publication etc.

Rental business: Event, Fashion&Auto Show, Entertainment, Wedding, Concert,Party etc.



Features:



1) Die-casting rental cabinet with fast lock and airplug design

2) Super thin&Light,Convenient in transporting and installing saving labor cost.

3) Nice appearance and safe cabinet design.

4) Jointed precisely, being installed &dismounted by one person without tool.

5) Humanized operating interface with breakdown indicator lights, easy to maintain.

6) High debugging brightness and no damage for nice image.



♦ Product specification



				Specifictions
LED Lamps	Type			SMD2121(High Brightness LEDs)
	LED Standard			Real Pixel(1R1G1B)
	Red Wavelength			625-630nm
	Green Wavelength			515-530nm
	Blue Wavelength			465-475nm
LED Module	Pixel Pitch			2.5mm
	Module Size			160mx160m
	Module Resolution			64*64dots
LED Cabinet	Cabinet Size			640mmX640mm
	Cabinet Resolution			256pixels *256pixels
	Cabinets Material			Iron steel cabinet
LED Display	Pixel Density			160000pixels/sq.m
	Drive IC			MBI5024
	Power Supply			Series connection
	Brightness			>2500cd/sqm
	Display Color			16.7million
	Viewing Angle			110°(Horizontal),50°(Vertical)
	Best Viewing Distance			1.5m~160m
	Max Power Consumption			600 w/sq.m
	Average Power Consumption			300 w/sq.m
	Weight			35Kgs/sq.m
	Refresh Rate			3000hz
	Input Voltage			AC220V/50H or AC110V/60H
	Output Voltage			DC5V,40A
	Grey Scale Levels			1024
	Display Colors			R(1024) x G(1024) x B(1024)
	MTBF			10,000 hours
	Life-span			100,000 hours
	Protection Level			IP45
	Failure percentage of leds			less than 0.0003
	Working Temperature			-25℃~65℃
	Drive Mode			1/32 scaning
	Working Humidity			10%~99%
Control System	Control method			Synchronization & Asynchronization
	Control System			LINSN Control System (sender,receiver,HUB with 75 interface,software)
	Software			LED Studio (LINSN)
	Input Signal			MPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RM/ASF/BMP/GIF/PCX/TXT/DOC.etc
	PC Operating system			Microsoft Windows 7, 98, 2000, XP and Vista



Product Name	HD indoor P2.5mm SMD 3 in 1 LED display screen Led video wall panel  with 160000dots/sqm
Service	Your inquiry will be reply within 12 hours.
Brand	SCX
Material	Stainless, aluminum ,steel, epoxide resin,PE
Item	Indoor P2.5,P3,P4,P5,P6,P7.62 OutdoorP6,P8,P10,P12,P16,P20
Feature	High brightness, good resolution, working stable , easy installation.
Grade	IP43-IP65
Driving mode	constant driving current
Stock	Regular items of led display have stocks.
Color temperature	6500-9500K
Packing Method	Flight case &Plywood case or Customized Packing
Power supply request	AC85-264V(50HZ-60HZ)
Payment Term	T/T, Western Union
Delivery Time	Within 7-30 days according to your required size & quantity.
Using Range	Shopping mall,bank,bus station, train station, center of downtown, airport, school, factory, bus, taxi, and etc.





Methods for Quality Assurance



a. Aging

1. 100% fully test

Condition: 72 hours with 1024 gray level

b. Vibration Testing

Condition: 3-5 min up and down in 5mm range



Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,Automatic Glue- pouring Machine, Solder Paste Printing Machine,Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.







Payment and delivery







1) T/T, 30% deposit, 70% before shippment.
2) 100% Western Union in advance.





♦ Why choose us:



Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.







♦ FAQ



What kind of payment terms you can accept ?

We can accept T/T and Western Union.



What about your Led Display quality ?

Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of

our products continuity.



What is your delivery time ?

Within 7-35 days according to your area and quantity.



Is your LED display competitive ?

Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure

our led display’s competitiveness.
