P10 Full Color Mobile LED Screen / Outdoor Led Video Display For Advertising

Brand Name:	SCXK
Model Number:	P8
MOQ:	3sqm
Price:	negotiation
Payment Terms:	Western Union, MoneyGram, D/P, T/T
Supply Ability:	5000sqm per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen in China

Certification:

CE/ROHS/FCC/ISO/UL

Pixels:

10mm

Tube Chip Color:

Full Color

Cabinet:

Iron Or Aluminum For Options

Pixel Configuration:

1R1G1B

Warranty:

3 Years

Brand:

SCXK

Packaging Details:

flight case, wooden case, carton, it is up to you.

Highlight:

truck mounted led screen

digital led sign

Product Description

Video P10 Led Mobile Display Board, Truck Mounted Led Screen Full Color

Main Features:

1). Wide application field: Outdoor Commercial advertising LED display screen, LED display board for shopping mall, Stadium perimeter LED display, bank&stock exchange LED display screen for rates showing, train & bus station LED display screen .

2). High brightness: 7000cd/m2 Automatic or manual adjustment of the brightness of the display.

3).Top LED chip: Supplied by Silan of china & other high strictly selected LED chip to ensure the long lifetime and high brightness of our LED display system.

4). Clear vivid image quality: Throughout the show, the picture clear, bright color.

5). Installation is simple, easy to use: Easy and simple installation interface and user friendly software to ensure that customers use easily

♦ Technical Specification

Outdoor SMD P10
Resolution/mm	10
Pixel configuration	1R1G1B
Pixel density/pixels/m²	10000m²
Module resolution	32*16
Module size/mm	320*160
View distance	≥10m
Single point brightness adjust	Can be added
Single point color adjust	Can be added
White balance brightness	>6000cd/㎡
Color temperature	6500K-9500K
Horizontal view angle	120(degrees)
Vertical view angle	60(degrees)
Signal Process bit	10 or 16bit
Driving mode	Constant driving current
Scanning mode	static dring
Frame rate	60Hz
Refresh frequency	3000Hz
Control mode	Computer synchronous
Brightness adjusted range	Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss
Out of control point	<1/10000
Working hours	>72hours
Mean time Between Failure	>500hours
life time	>100000hours
Envirornment temperature range	operating temperature range -20⁰c-50⁰c
Maximun power :/m²	<600w
Average power:/m²	<200w
Self-check technolog	LED spot self-check, communication check, power check, temperature monitor(need customization)
Remote monitoring	Remote supervision and control, record potential fault send out warning signs to the operators(need customization)
Software environment	Windows 1999, Windows
Input power cable	AC110v to220v
Signal input	DVI
Warranty	2 years quality warranty, 10 years spare parts support

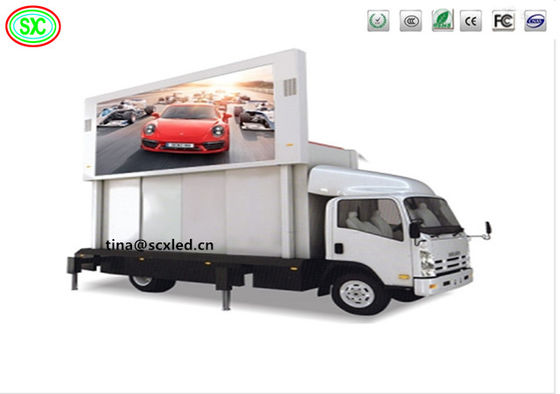

P10 Full Color Mobile LED Screen / Outdoor Led Video Display For Advertising 0

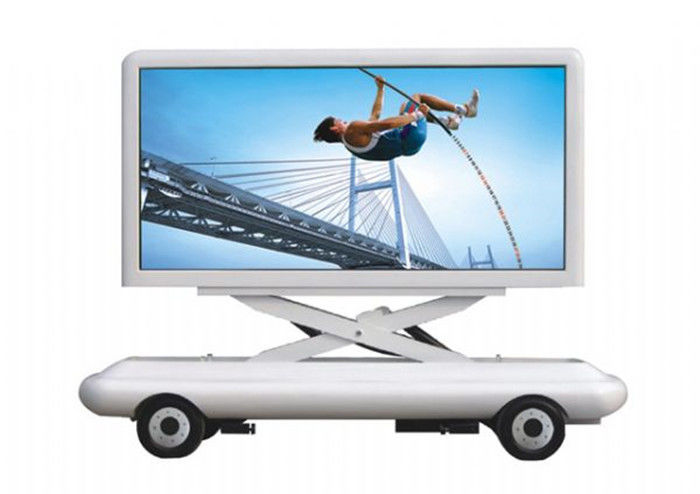

P10 Full Color Mobile LED Screen / Outdoor Led Video Display For Advertising 1

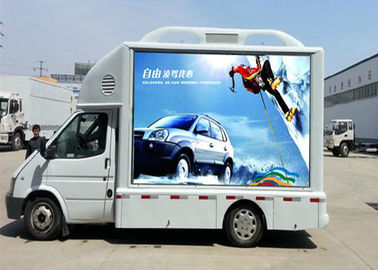

P10 Full Color Mobile LED Screen / Outdoor Led Video Display For Advertising 2

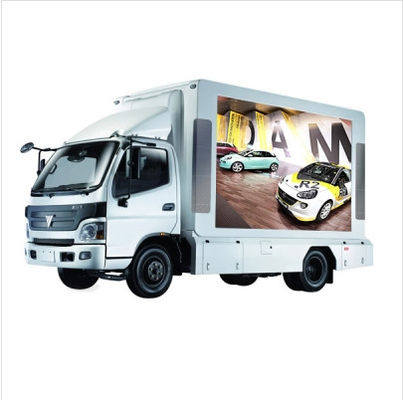

P10 Full Color Mobile LED Screen / Outdoor Led Video Display For Advertising 3

Packaging & Shipping

Packaging: Wooden or flight case for option

Shipping: By air, sea, DHL and so on.

Our Service

1) Reply your inquiry in 24 working hours.
2) Experienced staffs answer all your query in fluent English
3) Customized design is available, OEM & ODM are welcomed.
4) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5) Special discount and protection of sales area provided to our distributor.
6) Warmly welcome your visit in our company if available.
7) Warranty: 3 years warranty

FAQ

Q1: WIFI or 4G controller card, which one is best?
A: For less quantity, you could choose the wifi controller card, the cost will more economic.

The disadvantage of the wifi controller is that you have to be close to the screen when you need to update the advertisements.

Q2: How to install the screen on the top of car?
A: Yes, we can provide you API, then your engineer can design your own platform.

Q3: May I use my own platform to control the screen?
A: We will provide a video guide for you, with a bracket to fix the screen on the car roof.

Q4: May I know what's advertising display on the screen?
A: You can see the log on the platform. There will show you a list.

Q5: The screen can adjust the brightness automatical?
A: With a brightness sensor, the screen can adjust brightness automatical.

Q6: Before delivery, what test will do for the screen?
A: We will do 72 hours aging test and waterproof test.

Our team will be forever here to offer you full supports!
