Indoor Full Clolor LED Display Screen P4 Light Weight Front Service HD Led Video Wall

Indoor Full Clolor LED Display Screen P4 Light Weight Front Service HD Led Video Wall

Brand Name: SCXK
Model Number: P4
MOQ: 1 sqm
Price: negotiation
Payment Terms: T/T, Western Union
Supply Ability: 5000sqm per month
Detail Information
Place of Origin:
ShenZhen in China
Certification:
CE/ROHS/FCC/ISO/CB
Pixels:
4mm
Led Type:
SMD 2121
Waterproof:
IP43
Cabinet:
Iron/die Casting Aluminum
MBI:
51024
Viewing Angle:
H:100 V:50
Optimal Viewing Distance:
>=4m
Voltage:
DC5V
LED Parameter:
R:625-630nm
Packaging Details:
flight case, wooden case, carton, it is up to you.
Highlight:

advertising led display board

,

outdoor advertising led display

Product Description

Indoor Full Clolor LED Display Screen P4 Light Weight Front Service HD Led Video Wall





LED Screen Parameter



Technical DataModel PH4
Pixel Pitch 4mm
Physical Density(pixels/m²) 62500
LED Shape & Size SMD 3 in 1
LED Arrangement 1R1G1B
Module Size(mm) 128×128
Module Resolution 32*32
Drive Mode Dynamic 1/8 Duty Constant Current
Brightness ≥1500cd/m²
Contrast(cd/m²) ≥2000:1
View Angle, 50% Brightness 140°/140°
Minimum View Distance 4m
Grey Scale 10bits/1024levels
Color Capacity 1.07billion
Maximum Power Consumption 860W/m²
Ave.Power Consumption 280W/m²
Operation Power Source AC90-260V 50-60HZ
Frame Frequency 60-85HZ
Refresh Rate 240-1000HZ
Brightness Adjustment 0-100% 8 levels automatic
Gamma Correction -5.0-5.0
Correction Scale Level 16bits
Color Temperature 5000-9300K
Brightness Correction Pixels, Module, Cabinet Correction
Input Source Support Composite, S-Video, Component, VGA, DVI, HDMI, SDI, HD_SDI
Control Distance UTP CAT5E: 100m; Multi-mode Fiber: 50m; Single-mode Fiber: 10km
Operating Temperature -40°C - 65°C
Operating Humidity 10-90%RH
Operating Life Span 100,000Hours
MTBF 5000 Hours
Protection Ratings IP31
Out of Control Rate 0.01%


Energy Saving≥50%, Environment Protection
Adopt top high brightness with low power consumption LED lamp, energy saving≥30%,

if adopt 28 kinds of main patent technique, entire energy saving ≥50%, environment protection.

Pioneer in outdoor mature HD LED Display, all advanced specifications 2 years earlier than

others, successful cases around the level color scale, color temperature and brightness adjust
paking: flight/ship



Free Training:

3 days on-site complete technical training in our Shenzhen factory or internet on-line teamviewer via remote control or skype on line communication, what's more, we have valuable users' manual to guide for debugging and installing successfully.


Installation Service:
The seller should provide on the spot installation instruction service for the buyer, including:
A. To check whether the bracket and frame are in conformity with the technical requirements of the structure scheme the seller provided
B. To instruct the buyer’s technicians to install the LED module cases and connection among those cases
C. To experiment and adjust the whole panel, examine and repair the defective devices, guarantee panel in secure operation.
D. To train the buyer’s technicians.
For spot installation and train in foreign country, the service is 100 usd/day, and the buyer must pay our technician’s living and traffic fee during the installation period.

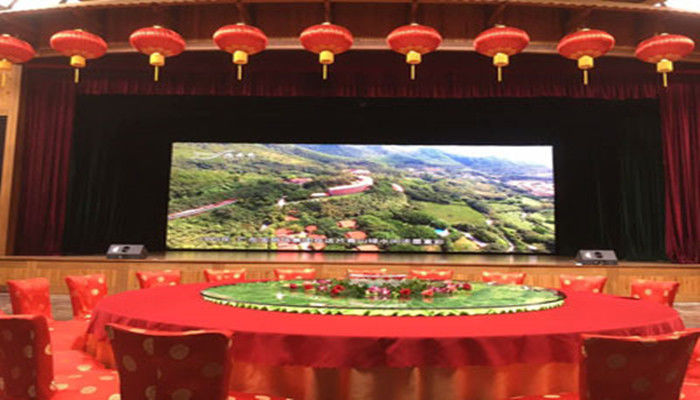

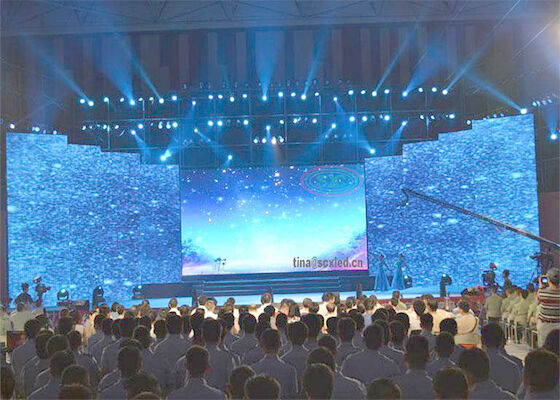

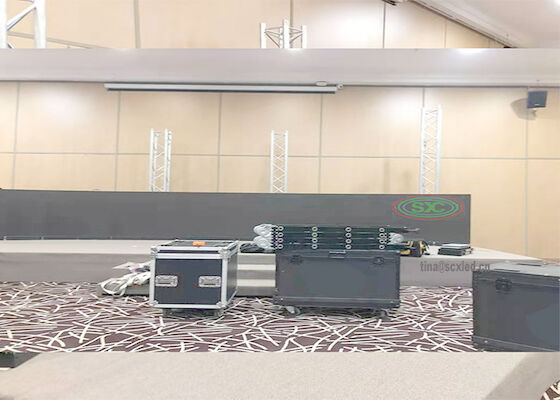

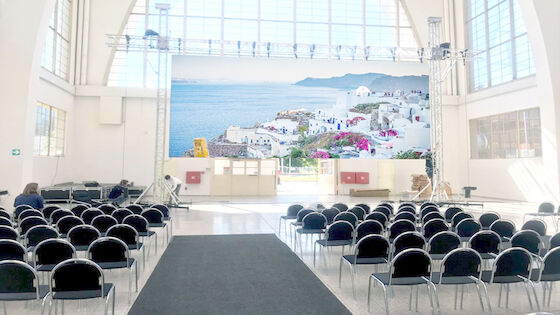

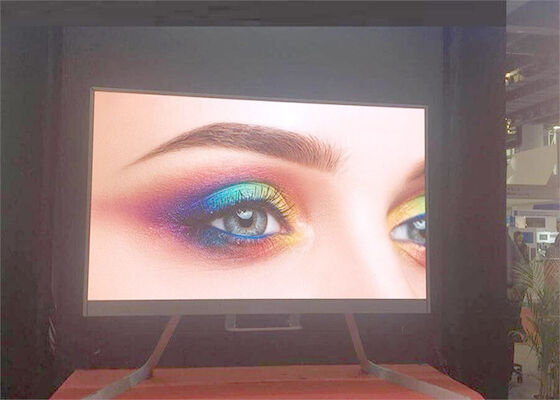

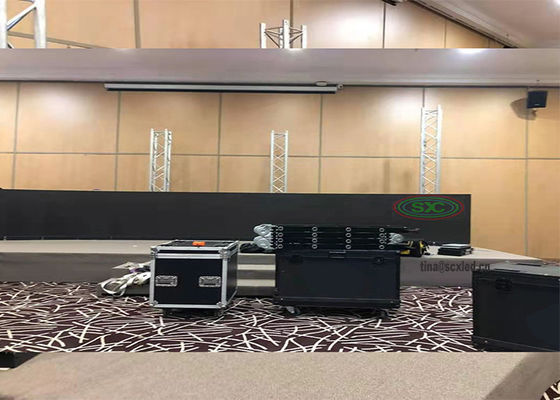

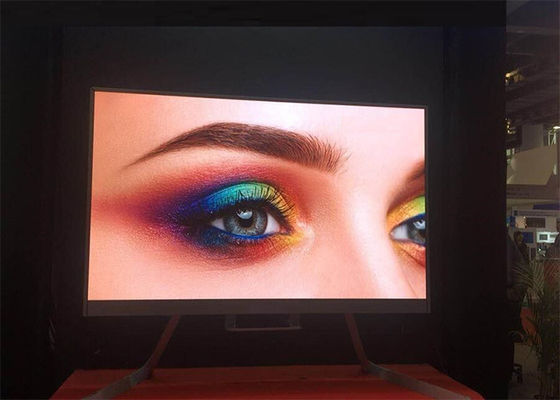

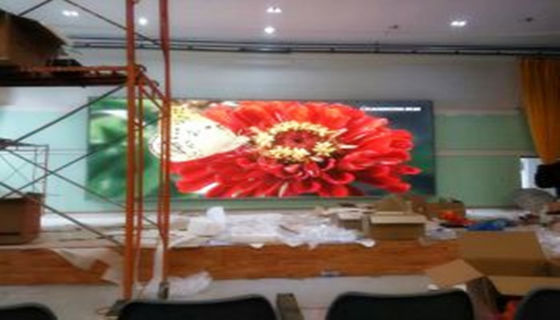

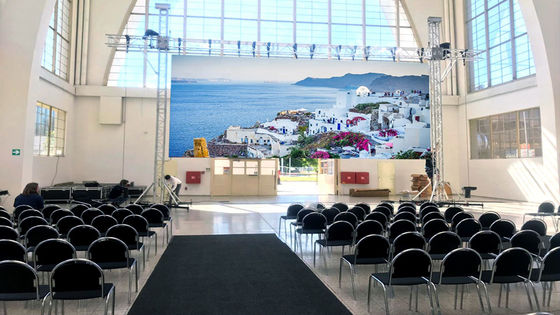

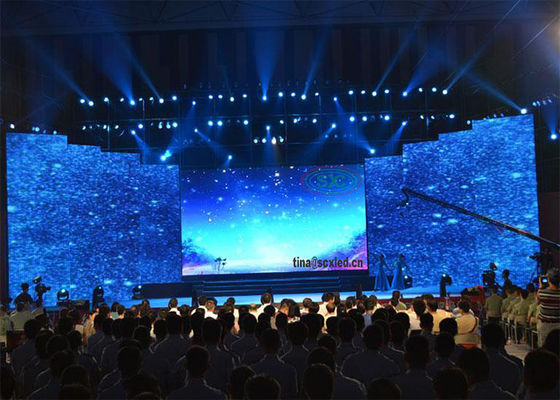

Case:

Indoor Full Clolor LED Display Screen P4 Light Weight Front Service HD Led Video Wall 0


Trade Terms:
1. Hardware: LED display and video controlling system
2. Technical material: English version user manual, installation manual And
 maintenance manual
3. Service: Provide free technology support by phone and e-mail 7 years guarantee
4. Delivery: Approx 3-12 working days
5. Packing: Anti-shaking wooden package or Air Flight Case.
6. Transportation: By sea or air or Express

Hope we can further together and work together.
