Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/SGS/ul |
| Model Number: | P10 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in wooden case and flight case for outer packing |
| Delivery Time: | 10-15 working days after received your payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5,000/ Sqm per month |
| Product Name: | DIP P10 Led Screen | Cabinet Size: | 960*960 |
|---|---|---|---|
| Display Color: | Full Color | Led Chip: | 3 IN 1 |
| Module Size: | 160*160 | Cabinet Material: | IRON |
| Cabinet Resolution: | 96*96 | ||
| High Light: | advertising led display board,advertising led billboard |
||

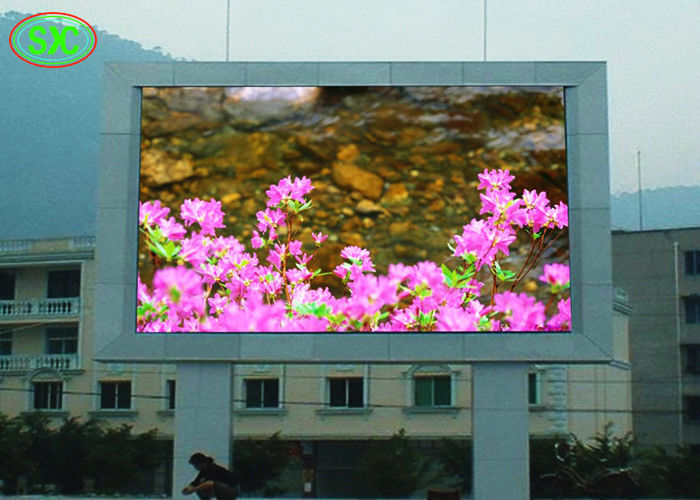

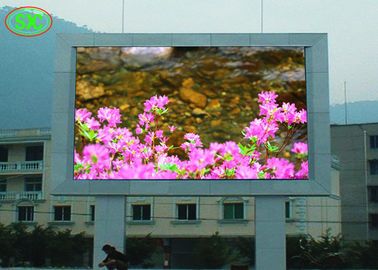

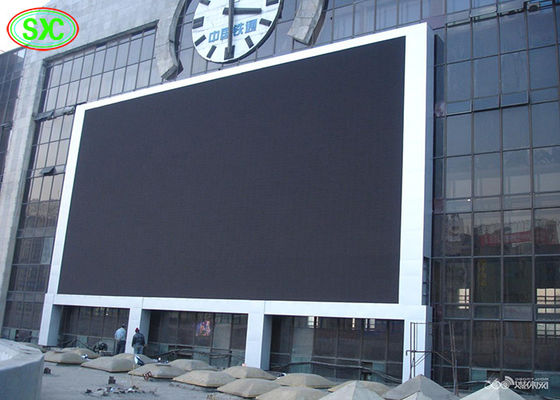

P10 Dip Outdoor Led Advertising Screen For Fixed Installation , High Brightness outdoor led advertising signs
Shenzhen SCXK Electronic Co.,Ltd start in 2005,it has been devoting to high-quality LED display designing & manufacturing for 12 years. equipped with professional team and modern facilities, we manufacture fine LED display products, wide application in airports, stations,ports,gymnasiums, banks, schools, churches ,etc.our LED products are deployed across 100 countries all over world,covering Asia, Middle East, America, Europe and Africa.
Application:
Commercial advertising: Shopping Mall, Road side, Airport, Wharf, Hotel, Church,Restaurant etc.
Live broadcast: Gym, Stadium, Concert, Sport Match, Competition, Gov publication etc.
Rental business: Event, Fashion&Auto Show, Entertainment, Wedding, Concert,Party etc.
Features:
1) Die-casting rental cabinet with fast lock and airplug design
2) Super thin&Light,Convenient in transporting and installing saving labor cost.
3) Nice appearance and safe cabinet design.
4) Jointed precisely, being installed &dismounted by one person without tool.
5) Humanized operating interface with breakdown indicator lights, easy to maintain.
6) High debugging brightness and no damage for nice image.
| Parameter*Modules | Unit | Value |
| Pixel pitch | mm | 10mm |
| Pixel density | dots/sqm | 10000 |
| Pixels | Dots | 16x16 |
| Size | mm | 160x160 |
| Pixel type and configuration | 3 Chips in 1 SMD LED(3535) | |
| Brightness | nits(cd/sq.m) | >6000 |
| Drive type | 1/4 Scan | |
| Viewing angle-Horizontal | deg. | 130 (-65 ~ +65) |
| Viewing angle-Vertical | deg. | 130 (-65~ +65) |
| Red wavelength(dominant) | nm | 620-625 |
| Green wavelength(domi.) | nm | 520-525 |
| Blue wavelength(domi.) | nm | 470-475 |
| Lifetime(50% brightness) | Hours | 100,000 |
| Parameter*Cabinet | Unit | Value |
| Width | mm | 960mm |
| Height | mm | 960mm |
| Aspect ratio | 1:1 | |
| Diagonal | mm | 707 |
| Depth | mm | 75 |
| Area | sq.m | 0.9216 |
| Weight | Kg | 35KG |
| Pixels | dots | 96×96=9216 |
| Material | IRON | |
| Ingress protection | IP | IP65 |
| Operating temperature range | ℃ | -20 ~ +55 |
| Humidity operating | RH | 10% ~ 90% |
| Best viewing distance | m/feet | 5~ 13m /16~ 43’ |
| Input voltage(nominal) | V/AC | 110 /240 |
| Input power frequency | Hertz | 50/ 60 |
| Input power(max) | Watts | 200 |
| Input power(typical) | Watts | 80 |
| Cooling system | AIR AND MINI FAN |
| Parameter*Screen | Unit | Value |
| Colours | 1073.7 trillion | |
| Grey scale(linear) | Levels | 1024 levels per color |
| Brightness Control | Levels | 256 |
| Processing depth | bit | 14 ~ 16 |
| Video frame rate | Hertz | 30/60 |
| Display refresh rate | Hertz | 1200 ~ 2400 |
| Multimedia data format | MPG,AVI,WMV,RM etc. | |
| Data interconnection |
Cat 5E UTP /Optic Fiber |
The epistar Led chip. with SMD and DIP Technology .
we adopt the epistar led chip from Taiwan,DIP and SMD led display module will be available
The wire or wireless controll system are available .( 3g and wifi controll will be welcome)
Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.
Competitive Advantage:
1. 2 years’ warranty with free repair service
2. 24/7 Hours online Remote Support
3. Solution and PCB design
4. Free factory training
5. On site installation instruction and regular inspection
6, Small order accepted.
Package
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
♦ Frequently Asked Questions
What kind of payment terms you can accept ?
We can accept T/T and Western Union.
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 7-35 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure
our led display’s competitiveness.
