Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/SGS/ul |
| Model Number: | 3.91 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in wooden case and flight case for outer packing |
| Delivery Time: | 10-15 working days after received your payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5,000/ Sq m per month |
| Product Name: | Rental Outoor P3.91 | Module Size: | 250mm*250mm |
|---|---|---|---|
| Module Resolution: | 64dots*64dots | Cabinet Size: | 500m*500mm 500mm*1000mm |
| Cabinet Resolution: | 128*128 128*256 | Display Color: | Full Color |
| Led Chip: | Epistar | ||
| High Light: | rental led display screen,led rental screen |
||

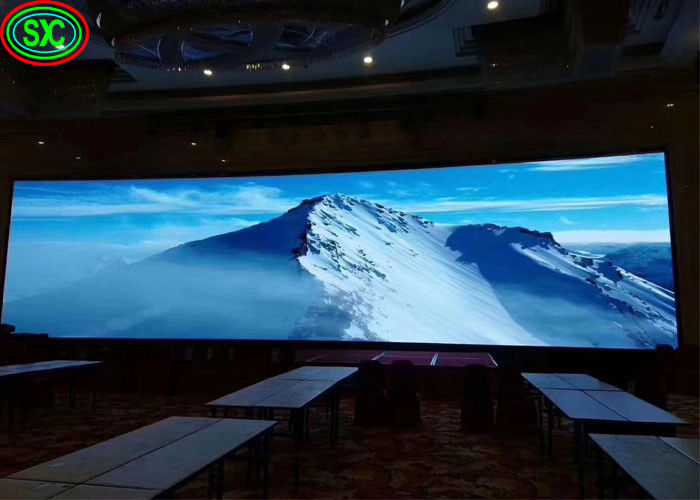

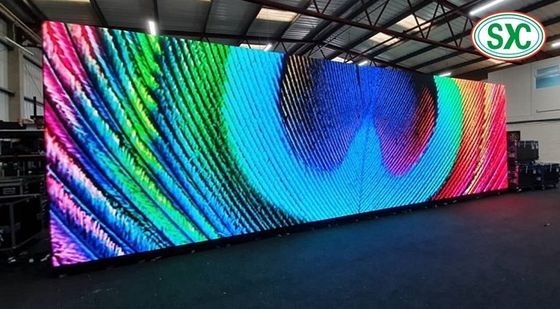

Giant Led Rental Screen For Show Background , Rgb High Definition Led Display
Application of LED display screen
1,Advertising LED display screen
LED display,with its unique advantages, has gradually replaced the traditional billboards, light boxes,etc. LED display advertising has become a new force in the media industry.Traditional advertising can only show pictures, But LED display can perfect combine text, pictures, video, and sound with high resolution, high brightness and full color! LED display Advertising can easily attract the attention of pedestrians, and also are easy to remember,which can generate greater advertising effectiveness. Led display advertising now are applied in main street, shopping mall, Plaza Park, outstanding buildings, landmarks, airports, stations and so on.
2,Stadium LED display screen
Led screen are used in stadium to live show, video play, slow motion playback, specific lens display, sports score information presentation, as well as commercials advertising.
The common cases are football field led screen fence, basketball stadium center screen, and screens in swimming stadium, Athletics stadium, etc.
3,Transportation LED display screen
In the busy streets of city or on the highway, we can see LED display screen, these screens are generally controlled by a unified control center, in conjunction with other traffic monitoring equipment, automatic display traffic flow or traffic jam information. Also screens display weather, traffic regulations, to remind drivers to drive safely, and has the effect of signpost. The main application areas are in the city's main roads, road density lots, highways and other places.
4,Stage rental LED display screen
LED rental screens can easily installed and removed, also easy to transport.LED rental screens now are widely used in stage show, concert,theater, party,and other entertainment event as background, it can be live show and replay,and its so big that audience far away from the stage can see the performance on the stage clearly, creating a magnificent , highly infectious atmosphere, combined with highquality sound, giving a perfect visual feast.
| Parameter*Modules | Unit | Value |
| Pixel pitch | mm | 3.91mm |
| Pixel density | dots/sqm | 65410 |
| Pixels | Dots | 64*64 |
| Size | mm | 250x250 |
| Pixel type and configuration | 3 Chips in 1 SMD LED(2727) | |
| Brightness | nits(cd/sq.m) | >6000 |
| Drive type | 1/16 Scan | |
| Viewing angle-Horizontal | deg. | 130 (-65 ~ +65) |
| Viewing angle-Vertical | deg. | 130 (-65~ +65) |
| Red wavelength(dominant) | nm | 620-625 |
| Green wavelength(domi.) | nm | 520-525 |
| Blue wavelength(domi.) | nm | 470-475 |
| Lifetime(50% brightness) | Hours | 100,000 |
| Parameter*Cabinet | Unit | Value |
| Width | mm | 500mm |
| Height | mm | 500mm |
| Aspect ratio | 1:1 | |
| Diagonal | mm | 707 |
| Depth | mm | 75 |
| Area | sq.m | 0.25 |
| Weight | Kg | 9.5 |
| Pixels | dots | 128×128=16384 |
| Material | Aluminum | |
| Ingress protection | IP | IP65 |
| Operating temperature range | ℃ | -20 ~ +55 |
| Humidity operating | RH | 10% ~ 90% |
| Best viewing distance | m/feet | 5~ 13m /16~ 43’ |
| Input voltage(nominal) | V/AC | 110 /240 |
| Input power frequency | Hertz | 50/ 60 |
| Input power(max) | Watts | 200 |
| Input power(typical) | Watts | 80 |
| Cooling system | AIR |
| Parameter*Screen | Unit | Value |
| Colours | 1073.7 trillion | |
| Grey scale(linear) | Levels | 1024 levels per color |
| Brightness Control | Levels | 256 |
| Processing depth | bit | 14 ~ 16 |
| Video frame rate | Hertz | 30/60 |
| Display refresh rate | Hertz | 1200 ~ 2400 |
| Multimedia data format | MPG,AVI,WMV,RM etc. | |
| Data interconnection |
Cat 5E UTP /Optic Fiber |
The epistar Led chip. with SMD and DIP Technology .
we adopt the epistar led chip from Taiwan,DIP and SMD led display module will be available
The wire or wireless controll system are available .( 3g and wifi controll will be welcome)
Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.
Competitive Advantage:
1. 2 years’ warranty with free repair service
2. 24/7 Hours online Remote Support
3. Solution and PCB design
4. Free factory training
5. On site installation instruction and regular inspection
6, Small order accepted.
Package
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
♦ Frequently Asked Questions
What kind of payment terms you can accept ?
We can accept T/T and Western Union.
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 7-35 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure
our led display’s competitiveness.
