Advertising Trailer TV Screen Mobile Truck Sign P6 Outdoor LED Display

Advertising Trailer TV Screen Mobile Truck Sign P6 Outdoor LED Display

    • Advertising Trailer TV Screen Mobile Truck Sign P6 Outdoor LED Display
    • Advertising Trailer TV Screen Mobile Truck Sign P6 Outdoor LED Display
  • Advertising Trailer TV Screen Mobile Truck Sign P6 Outdoor LED Display

    Product Details:

    Place of Origin: China
    Brand Name: SCXK
    Certification: CE/ROHS/FCC/ISO/UL
    Model Number: SMD P6

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiation
    Price: negotiation
    Packaging Details: flight case, wooden case, carton, it is up to you.
    Delivery Time: 7-10 working days after receive your payment
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 5000sqm per month
    Contact Now
    Detailed Product Description
    Product Name: Advertising Trailer TV Screen Mobile Truck Sign P6 Outdoor LED Display Pixel: 6mm
    Pixel Configuration: 3 In 1 Viewing Angle(degree): ≤140°
    Protection Level: IP65 Warranty: 5 Years

    Advertising Trailer TV Screen Mobile Truck Sign P6 Outdoor LED Display



    ♦ About product



    Mobile LED Display are available for both private and corporate functions. Truck led Display give you the ability to host a rocking party, unique lifetime event, or revenue-generating advertising or paid event.LED Mobile Display is a new design for advertising, you may see a truck led display in the highway playing the advertisement. they are portable led display to release your idea, mobile led display aslo can be use for concert and stage for showing .they are easily move,show the High definition led video display.



    ♦ Product specification

    outdoor P6 SMD
    Lamp size 3535
    Resolution/mm 6
    Pixel configuration RGB  3 in 1
    Pixel density/pixels/m² 27778/m²
    Module resolution 32x32
    Module size/mm 192*192MM
    View distance ≥5m
    Single point brightness adjust Can be added
    Single point color adjust Can be added
    White balance brightness >8000cd/㎡
    Color temperature 6500K-9500K
    Horizontal view angle 120(degrees)
    Vertical view angle 60(degrees)
    Signal Process bit 10 or 14 bit
    Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
    Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
    Driving mode Constant driving current
    Scanning mode constant driving static
    Frame rate 60Hz
    Refresh frequency >3000Hz
    Control mode Computer synchronous
    Brightness adjusted range

    Manual, automatic operation, stepless continuous adjusted

    255 steps. No grey loss

    Out of control point <1/10000
    Working hours ≥72hours
    Mean Time Between Failure >5000hours
    Life time 100000hours
    Life-all-white(brightness halving) 50000hours
    Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
    Maximum power:/㎡ <750W
    Average power:/㎡ <300W
    Self-check technology

    LED spot self-check, communications check, power check,

    temperature monitor(need customization)

    Remote monitoring

    Remote supervision and control, record potential fault,

    send out warning signs to the operators.(need customization)

    Software environment WindowsNT,Windows1999,WindowsXP
    Luminous point width between centres Deviation<3%
    Brightness uniformity <10%
    Color uniformity(chromaticity coordinate) ±0.003
    Power supply request AC85-264V(50Hz-60Hz)
    Contrast (1000:1)
    System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
    Humidity(working) working:10-95%
    Humidity(storing) storing:10-95%



    Product Overviews

    Items Indoor Led display:
    P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
    Outdoor Led display:
    P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25
    Material steel,aluminum ,die casting aluminum
    Payment
    terms
    30% deposit before production, 70% balance before shipping
    T/T
    Western Union
    Packing: Standard Export Carton with fully Polyfoam or Pearl Wool
    Flight case;
    Anti-shaking wooden case
    Shipping: 5 to 7 working days upon receiving deposit payment
    After-Sales-Service: Lifetime with professional engineer support for free.
    Within 5 year, supply spare parts for free if has quality problem
    ( not by man-made damage)
    Using Range Shopping mall,bank,bus station, train station,
    center of downtown, airport, school, factory, bus, taxi,and so on.



    ♦ Production process:

    1) Incoming Inspection→2) SMD→3) Plug-in

    →4) Wave Soldering→5) After Welding→6) Testing

    →7) Semi Finished Aging→8) Module Assembly

    →9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing



    ♦ Packaging and shipping

    Wooden case or flight case package are available.

    Shipping by sea,air or DHL,multiple shipping ways for your choice.



    ♦ Why choose us:

    Continues Quality

    With more than 10 years experience in led display producing,equipments are updated regularly.What’s

    more,unique standardized and module production ensure our products continuous quality.



    Competitive Price

    With large scale production capacity and professional production technology,our company have built

    effective modular production.We always stick to promote the technical innovation and reduce cost to

    benefit customers.



    Fast Delivery

    Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

    inventory will be used to maintain your uninterrupted supply of the products.



    Perfect Service

    Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

    you.

    After-sales:We will track the products usage and then constantly perfect our products.



    ♦ Our project

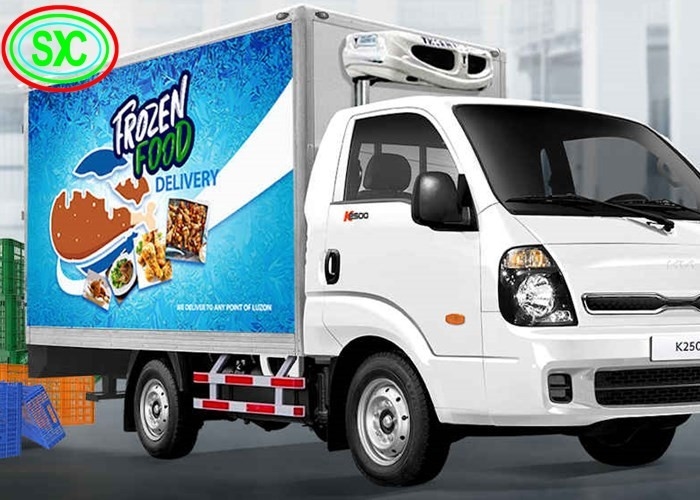

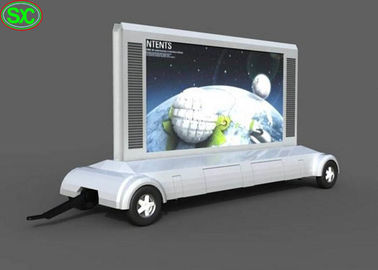

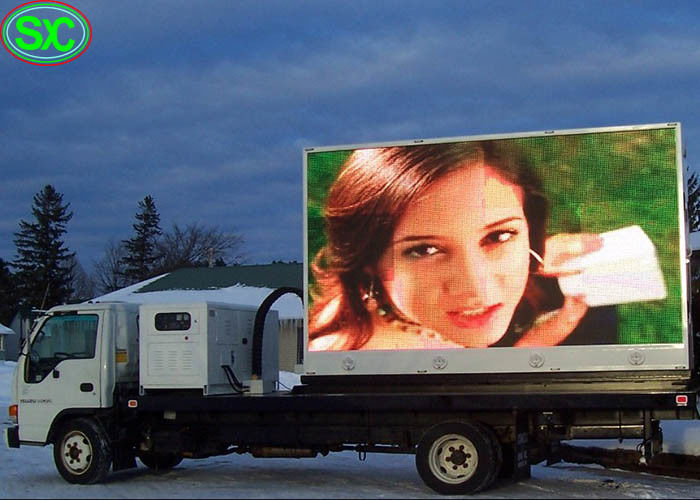

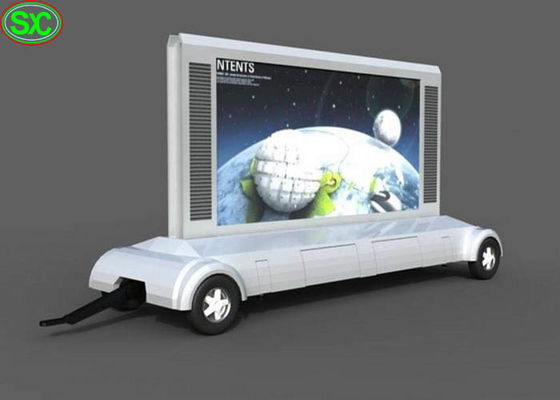

    Advertising Trailer TV Screen Mobile Truck Sign P6 Outdoor LED Display




    Contact:
    Sales Engineer Manager: Alice
    Skype: litingzeng
    Wechat /Whatsapp: 0086-159-8663-8656
    Mob.: 0086-159-8663-8656


    Our team will be forever here to offer you full supports !!!
