Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE. Rohs .FCC ,UL,TUV |
| Model Number: | SCXK-G7.8125 |
| Minimum Order Quantity: | 5sqm can be available |
|---|---|
| Price: | Can be Negotiable |
| Packaging Details: | wooden box packaged or flight case packaged |
| Delivery Time: | 7-10days can be finished and sent to you |
| Payment Terms: | D/P, L/C, D/A, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sqm/month can be available |
| Material: | Plastic | Dot Density: | 11500dots/sqm |
|---|---|---|---|
| Cabinet Size:: | 500 X1000mm | Cabinet Resolution: | 64dots X64 Dots |
| LED Standard: | 1R1G11B | Usage: | Semioutdoor Usage |
| LED Lamp: | SMD2525 | ||
| High Light: | transparent led display,led transparent screen |
||
SMD 2525 Full Color Transparent LED Screen G7.8125 Transparent Glass Screen
Quick details:
SCXK has been specialized in LED field since 2005. We are a leading manufacturer an provider of technical solution of full color indoor and outdoor led display,rental LED display, led modules where in Shenzhen city ,Guang dong province,China.
The cabinet size:500mm x1000mm
Dot density:11500 dots/sqm
led standard:1R1G1B
Brightness:≥4000 cd/sqm
Usage:semioutdoor
Warranty: 3 years
Lifeuse :10 years
Specification:
| LED Lamps | Type | SMD2525(High Brightness LEDs) | |||||||
| LED Standard | Real Pixel(1R1G1B) | ||||||||
| Red Wavelength | 625-630nm | ||||||||
| Green Wavelength | 515-530nm | ||||||||
| Blue Wavelength | 465-475nm | ||||||||
| LED Module | Pixel Pitch |
G7.8125-7.8125mm |
|||||||
| LED Cabinet | Cabinet Size | 500mmx1000mm | |||||||
| Cabinet resolution | 64x64 dots | ||||||||
| Cabinets Material | Special Gum and plastic | ||||||||
| LED Display | Pixel Density | 11500pixels/sq.m | |||||||
| Drive IC | MBI5124 | ||||||||
| Power Supply | Series connection | ||||||||
| Brightness | >4500cd/sqm | ||||||||
| Display Color | 16.7million | ||||||||
| Viewing Angle | 160°(Horizontal),110°(Vertical) | ||||||||
| Best Viewing Distance | 10.4m~200m | ||||||||
| Max Power Consumption | 600 w/sq.m | ||||||||
| Average Power Consumption | 300 w/sq.m | ||||||||
| Weight | 16kgs/sq.m | ||||||||
| Refresh Rate | 2500hz | ||||||||
| Input Voltage | AC220V/50H or AC110V/60H | ||||||||
| Output Voltage | DC5V,40A | ||||||||
| Grey Scale Levels | 16bit | ||||||||
| Display Colors | R(1024) x G(1024) x B(1024) | ||||||||
| MTBF | 10,000 hours | ||||||||
| Life-span | 100,000 hours | ||||||||
| Protection Level | IP54 | ||||||||
| Failure percentage of leds | less than 0.0003 | ||||||||
| Working Temperature | -5℃~65℃ | ||||||||
| Working Humidity | 10%~99% | ||||||||
| Control System | Control method | Synchronization & Asynchronization | |||||||
| Control System | (software) linsn | ||||||||
| Software | LED Studio | ||||||||
| Input Signal | MPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RM/ASF/BMP/GIF/PCX/TXT/DOC.etc | ||||||||
| PC Operating system | Microsoft Windows 7, 98, 2000, XP and Vista | ||||||||

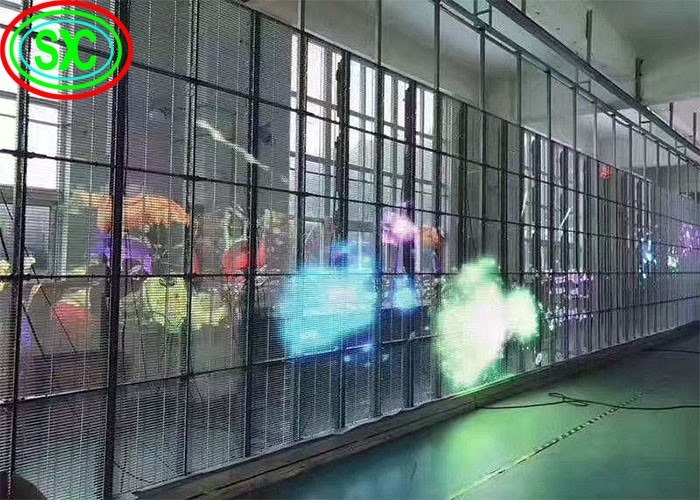

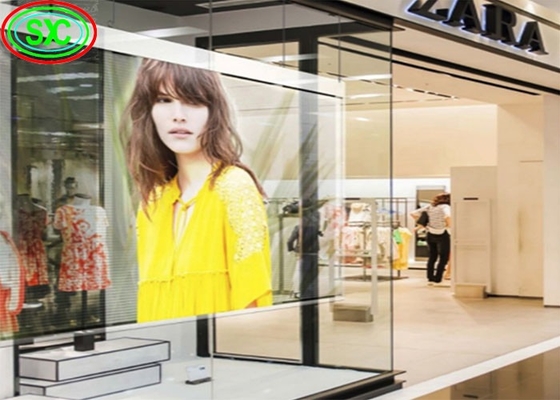

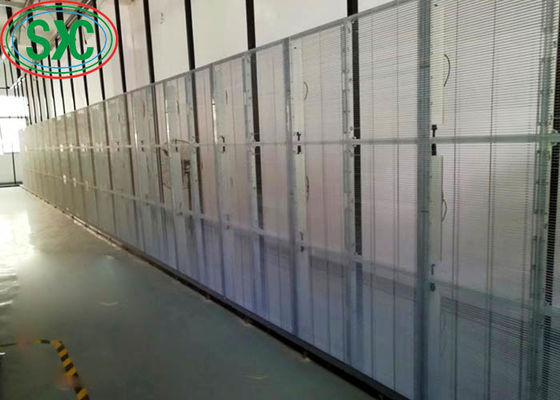

Project case
Competitive advantage:
1. Whats your payment term? How long it takes to delivery?
A3. We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery.Our average Production time is 10 days, after receiving the deposit.
2. What's the control system?
A4. For synchronization control. We use Nova, Linsn Or Colorlight control system.
The led display will be packaged with flight case or wooden box.
The cabinet is made very elegant and durable .It can satisfy all the circumstance requirements. And the power supply is still very important.
It’s related to lifeuse of the product.Generally ,we adopt the iron and steel cabinet, meanwell power supply or chuanglian power supply.
Contact Person: candice.zhong
Tel: +8613590361707
